Product Discontinued by Manufacturer

Stellarvue 115mm Apochromatic Triplet Refractor Telescope, White has been discontinued by Stellarvue and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

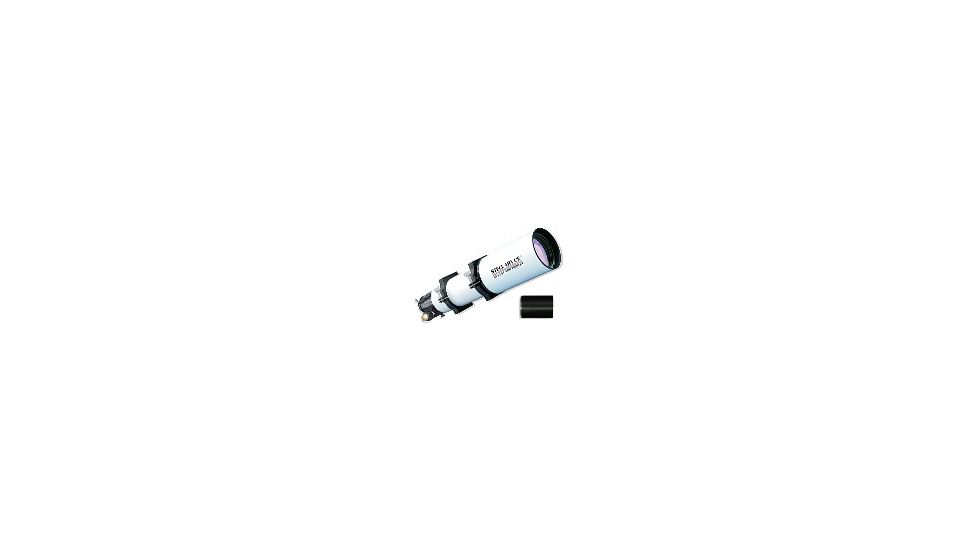

Stellarvue 115mm Apochromatic Triplet Refractor Telescope, White Product Info

The Stellarvue Apochromatic Triplet Refractor SV115TE Telescope has white aluminum tube and dew shield. The new 2.5in dual speed focuser included with this Telescope from Stellarvue comes with 1.25" andimage 2" compression ring adapters. The focuser on the Stellarvue Apochromatic Triplet Refractor Telescope is threaded for the SFF3-25 and SFF7-25 threaded field flatteners. This Stellarvue Telescope comes with a 4.75" extension that can be removed. The Stellar-Vue SV 115 Triplet Apochromatic Telescope is made with aluminum mounting rings and comes with a a heavy duty, thickly padded nylon C9S travel case.

Specifications for Stellarvue Telescope SV115T Series Apocrhromatic Triplets:

Objective: 115mm diameter, 800mm focal length (f7), air spaced apochromatic triplet
Tube Assembly: Machined aluminum tube - instrument white outside, ultra flat black inside
Dimensions: OTA - 27 1/4" long; 4.57" diameter. Dewshield adds about 5 1/2" to the length.
Weight: OTA - 11.5 lbs. Rings add 1 lb each
Dewshield: 5.53" diameter, 9 1/2" long retracting aluminum dewshield with cap
Rings: R115 set with five 6 mm threaded holes top and bottom. Holes are spaced 1.5" and 60 mm apart respectively, with one in the center.
Light Gain: 270x (human eye = 1)
Theoretical Resolution: 1.0 arc sec (Dawes Limit)

Features of Stellar View Aop triplet Telescope - SV115:

  • Fully multi-coated apochromatic triplet objective: The Stellarvue 115 mm Apochromatic triplet objective provides extremely high contrast views, a perfect star test and reflector-like color correction. Lenses are hand figured by a master optician to a high Strehl ratio. This is a no-compromise optic that will perform as well or better than any lens in its size class. Several extreme broadband coatings are used on all six lens surfaces to enhance contrast, making the stars vivid and the background velvet black. Since it is important to minimize reflections seen on ccd images, these coatings will transmit light above and below the visual spectrum. This is the telescope that Vic Maris currently uses at home. It meets his demand for a no-compromise, light-weight, and portable telescope.
  • Stardust white aluminum tube and dew shield: The aluminum tube and dew shield is painted in a lustrous and beautiful stardust white finish. This white finish will stand out against the black anodized aluminum fittings giving this telescope a high-end, classy look. The dew shield can either be extended or retracted. Extension reduces dewing at night and can cut out the light from those blaring street lamps. The dew shield also serves as a lens shade during the day. Retraction will reduce the length of your telescope tube for convenient storage.
  • Internal tube treatment: The inside of the tube assembly is painted "ultra flat black" and is fully baffled to eliminate reflection. The focuser has 11 baffle ridges to reduce draw tube reflections. These ridges are painted, reducing the most commonly found type of reflected glare. This treatment provides better glare reduction than focusers that only have the ridging to prevent glare. All of these methods add up to provide the outstanding contrast of the Apo triplet lens.
  • 2.5" Stellarvue dual speed focuser: The 2.5" SV focuser has over 80 mm of focus travel. This focuser is perfect for visual use and imaging. The dual speed mechanism provides an ultra-smooth fine focus knob with 10:1 focusing ratio. This permits extremely fine focusing adjustment ensuring you are in perfect focus every time. An internal brake system adjusts tension and capacity.
  • Aluminum hinged rings: The SV115 comes with two hinged, aluminum mounting rings. Each ring has five screws top and bottom. Threaded holes are 6mm. There is one center hole, two holes spaced 1.5" apart and two holes spaced 60 mm apart. Use the optional TP-10 rail for telescope mounts using the Vixen style rail or use the optional TP6 for mounts that use the larger Losmandy style rail.
  • C9S Case: A heavy duty, thickly padded storage case is included. This case will withstand more rough use than an import hard case would. Many customers have been using the C9 cases for nearly ten years; they have yet to report a failing.

Package Contents:

  • Stellarvue Apochromatic Triplet Refractor SV115TE Telescope
  • Case

Stellarvue 115mm Apochromatic Triplet Refractor Telescope, White Related Products

Stellarvue 115mm Apochromatic Triplet Refractor Telescope, White Unorderable Models

Stellarvue 115mm Apochromatic Triplet Refractor Telescope, White SV115TE-25SV, MPN: SV115TE-25SV, UPC: 639713274615, Code: LS-TS-SV115T-SV115TE-25SV
Stellarvue 115mm Apochromatic Triplet Refractor Telescope w/ 3in Feather Touch Focuser, White SV115T-3FT, MPN: SV115T-3FT, UPC: 639713274639, Code: LS-TS-SV115T-SV115T-3FT
