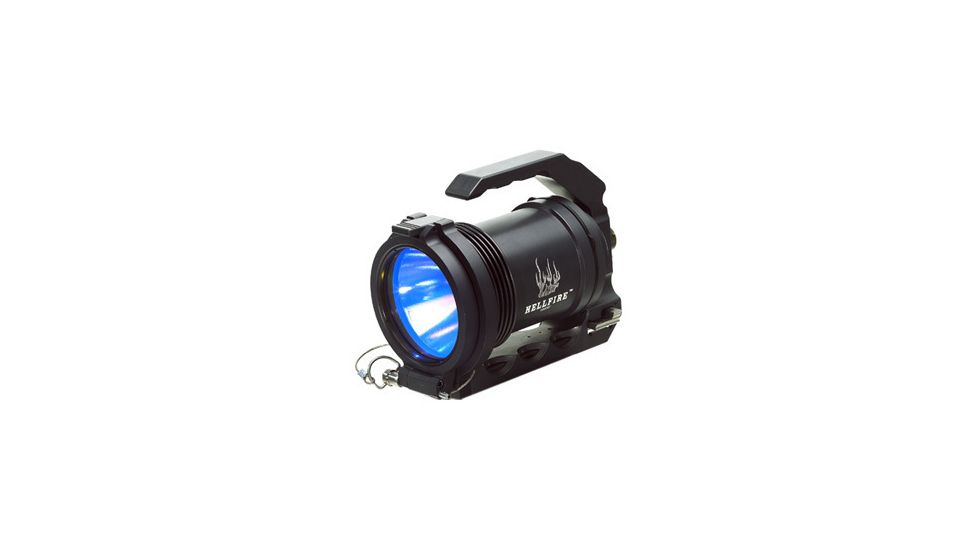

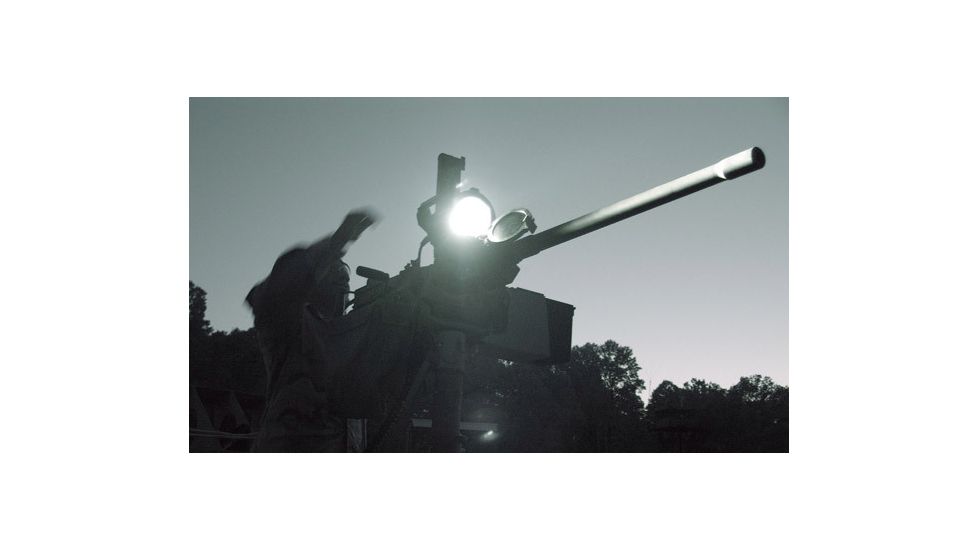

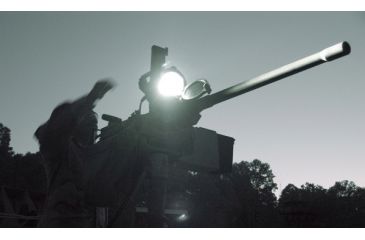

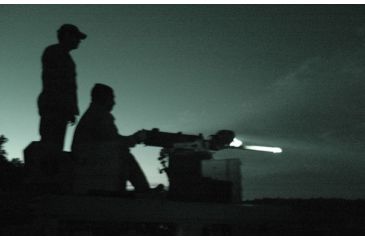

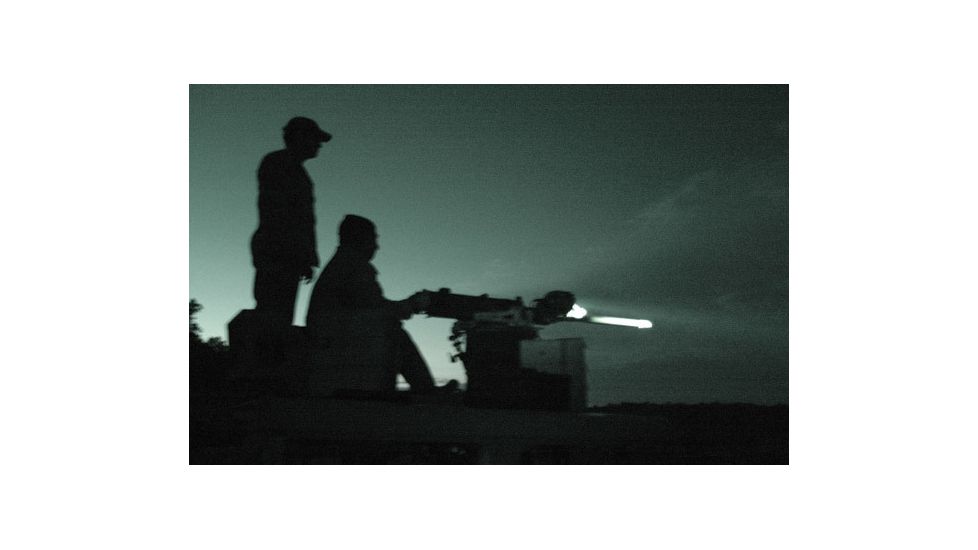

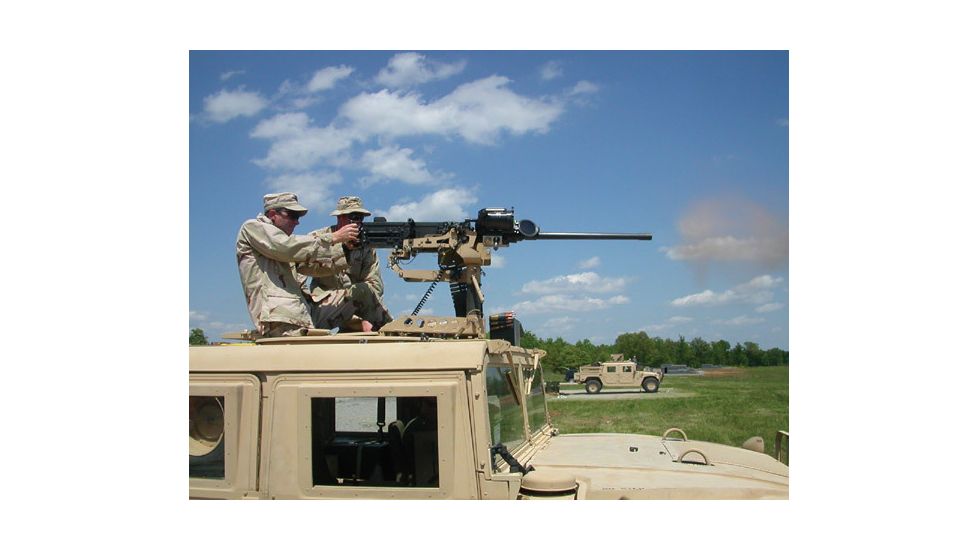

SureFire HellFire White Light Target Illuminator is an ultra high-output spotlight designed for use on .50 caliber machine guns. SureFire HellFighter Tactical Spotlight can also be used as a vehicle-mounted spotlight, or it can be detached and used as a hand-held unit.

Surefire Hell Fire High-Output Incandescence Flashlight uses a xenon-filled high-intensity discharge (HID) arc lamp to produce 3,000 lumens of blinding white light, perfectly focused to reach hundreds of yards into the darkest night. Because HID lamps of the SureFire Heavy Gun Spotlight have no filament to break or burn out, they are extremely resistant to mechanical shock and vibration and should rarely need replacing. An additional benefit: they are very efficient - for an equivalent power input they provide more than twice the lumens of incandescent lamps.

SureFire HellFighter Weapon Spotlight is controlled by a grip/switch unit that replaces one of the original machine gun grips, and by a separate cable equipped with a constant-on/off switch. Power is supplied by either a 12-volt auto battery or by 5590 military batteries. Either power source may be connected to SureFire Hell Fighter Weapon Mounted Lantern with the included 10-foot cable, which is equipped with two plugs for 5590 batteries and integrated DC adapter for a standard vehicle accessory socket.

The machine gun operator can select between momentary and constant-on activation by using an included hand grip which replaces the trigger grip on the machine gun handle. Because of the Surefire HellFire Flashlight's small size (8 inches) and light weight (10 lbs.) SureFire HellFighter Spotlightalso can be used as a portable, hand-held light by detaching it from the included mounting sleeve and using the integrated carry handle. SureFire HellFighter Flashlight's runtime when used this way (and powered by two 5590 batteries) is approximately 8 hours. SureFire HellFighter Heavy Gun Light's body is built from an aluminum alloy with a hard-anodized MIL-A-8625 type III finish. A 5mm thick multi-coated Pyrex window protects the HID lamp, and an amber filter on a pivoting mount protects the window during severe weather or while in storage.

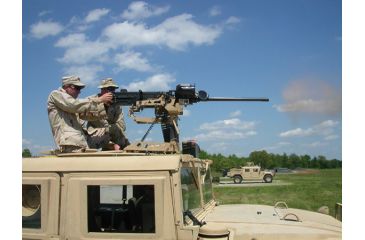

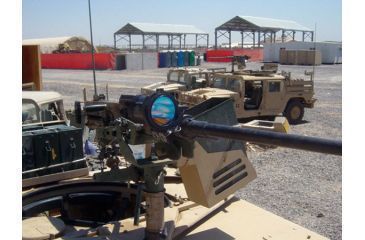

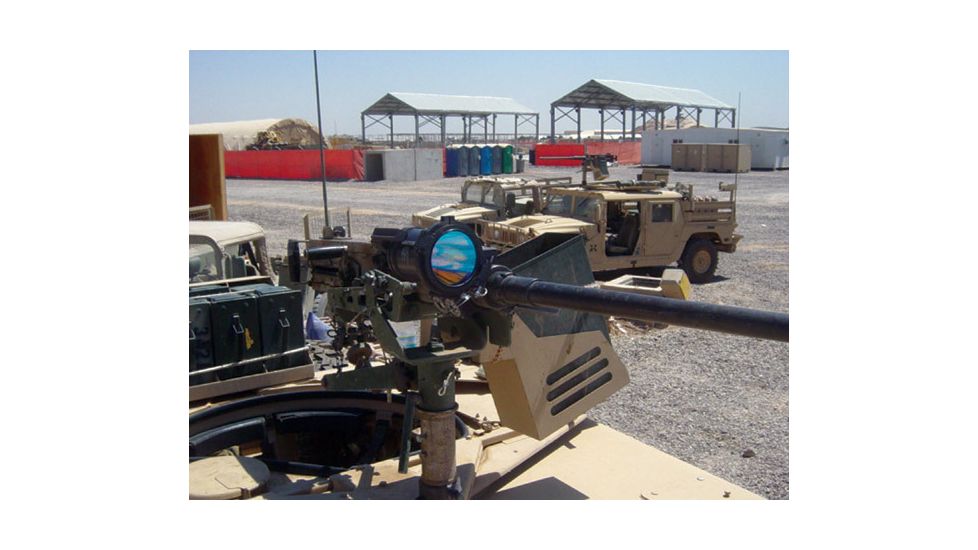

Constructed of Mil-Spec hard-anodized aluminum alloy, the Hell-Fighter Tactical Spotlight by SureFire is gasket and O-ring sealed for reliable functioning in harsh environments. Complete Sure Fire Hell-Fighter Military Spotlight Systems, including mount and IR filter, come in a watertight, lockable hard-shell storage case with foam-padded interior. SureFire Hell-Fire Heavy Gun Flashlight System is supplied as a complete system ready to mount on an M2-HB machinegun's heat shroud. Two other machinegun mounts for the SureFire Spotlight are also available - one for attachment to an M2-HB equipped with a ballistic shield, and one for attachment to an M44 Minigun, whether equipped with a ballistic shield or not. Vehicle mounting hardware is sold separately.

Available Filters for Hell Fighter Spotlight

• HF1A: Surefire HellFighter Heavy Gun Spotlight High Output Universal Searchlight with IR Filter
• HF1B: Surefire HellFighter Heavy Gun Spotlight High Output Universal Searchlight with Amber Filter
• HF1C: Surefire HellFighter Heavy Gun Spotlight High Output Universal Searchlight with Opaque Filter
• HF1A-KIT01: Surefire HellFighter Heavy Gun Spotlight High Output Universal Searchlight KIT with IR Filter

Specifications for SureFire Hellfire Weatherproof Lantern:

Power Source 12VDC:		• Auto battery (with included cigarette lighter adapter)  • One or two 5590 military batteries
Runtime:		• Auto battery : Continuous • 5590 military battery - One battery (not recommended, emergency use only)                                      Two batteries parallel - Approximately 8 hours
Lamps/Output:		• One Philips 35W D1S HID lamp. Approximately 3,000 lumens output
Electronics:		• Proprietary electronics, EMI shielded, insulated and shock mounted inside bezel
Reflector:		• CNC machined, aluminum alloy, optimized parabolic shape, coated with proprietary plating for maximum illumination
Bezel:		• 4.1 inch diameter, resting in a proprietary shock mount ring design
Bezel Lens:		• 5mm thick multi-coated Pyrex
Filter:		• 5mm thick multi-coated amber held in a pivoting mount
Body:		• Aluminum alloy with carry handle and integrated T-slot mounting feature
Switches:		• Momentary & Constant-On:      One (1) mounted in light body One (1) mounted in proprietary grip design (replaces one grip handle on machine gun, click-on/ off switch on grip handle is acativated with index finger)
Mount System:		Slides onto proprietary T-slot mount base, which is attached to the .50 caliber machine gun sleeve. Picatinny rail system incorporated for mounting attachments Can also be used as a vehicle-mounted or hand-held spotlight (vehicle mounting hardware sold separately).
Length:		• 8.0 inches (complete body and bezel assembly)
Cable Length:		• 10.0 feet
Weight:		• 10.0 lbs. (light assembly and mount combined)
Water Resistant:		• O-ring seals and rubber gaskets at critical mechanical mating surfaces
Finish:		• Hard-anodized 'NL' grey MIL-A-8625 type III class 2
Storage:		• Weather proof, lockable, hardshell case with formed foam insert

Features of Sure-Fire HellFighter Heavy Gun Target Illuminator System:

• Power source 12V DC: Auto battery (adaptor included) or two 5590 military batteries
• Runtime: Auto battery: continuous; 5590 batteries: 8 hours
• Mount: HellFighter slides onto T-slot mount, which attaches to machine gun sleeve. Picatinny rail also incorporated into mount.
• Length: 8" (body and bezel)
• Weight: 10 lbs. (light and mount combined)
• Bezel diameter: 4.1"
• Finish: Hand anodized "NL" gray MIL-A-8625 type III, class 2
• Water Resistant: O-ring seals and rubber gaskets at critical mechanical mating surfaces

• Surefire HellFighter Heavy Gun Light
• SureFire M87 Short Barrel Mount
• 10ft Cable with two plugs for 5590 batteries and integrated DC cigarette lighter adapter
• Watertight Lockable Hard Case

For more information about SureFire HellFire WeaponLigths please see pdf-file here
