Product No Longer Available

Unfortunately Swarovski Habicht AV 4-12x50mm Rifle Scope - Swarovski Rail Riflescope is no longer carried by OpticsPlanet. You can also explore other items in the Rifle Scopes category yourself to try and find the perfect replacement for you!

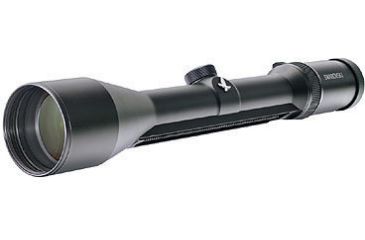

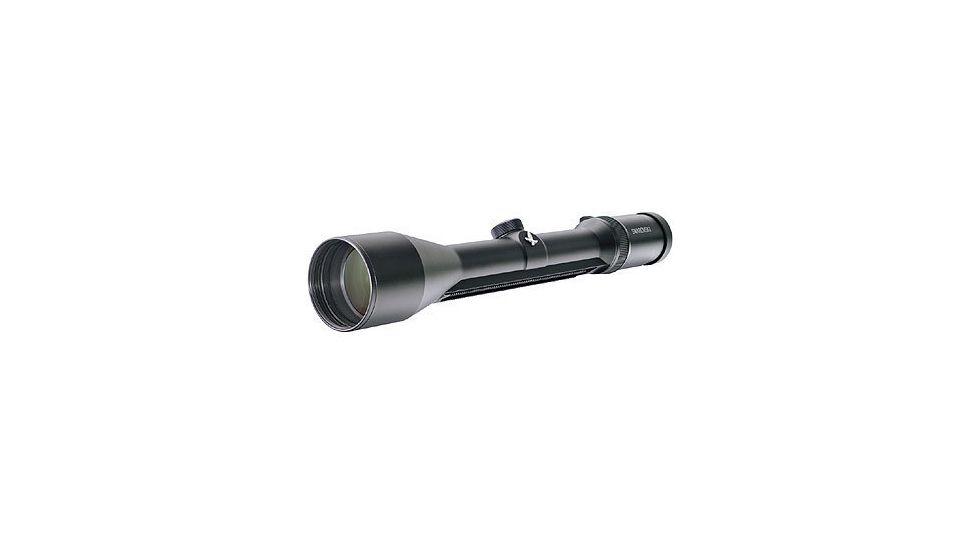

Swarovski Habicht AV 4-12x50mm Rifle Scope - Swarovski Rail Riflescope Product Info

The lightweight and very compact construction of Swarovski Habicht AV 4-12x50 Riflescopes w/ Swarovski Rail makes this imageideal for mountain hunting and stalking. Swarovski Habicht AV 4-12x50mm SR TDS Riflescope features top quality resolution and amazing brightness in a 1" tube with reticle in the second image plane. Swarovski Habicht AV 4-12x50 SR Riflescopes are Swarovski riflescopes with the innovative SR mounting rail (Swarovski Rail), which herald a genuine revolution in the precision and the mounting of rifle scopes. This unique meshing system will prevent any movement whatsoever of the rifle scope, which may result from recoil forces ? even with big game and wild boar calibers. With the new rail, Swarovski AV 4-12x50mm Riflescope is now no longer necessary to drill any holes when fitting the rifle-scope. As a result, it is now possible to not only mount the riflescope from Swarovski much closer to the rifle, but it can also be easily changed at any time. Available Items:

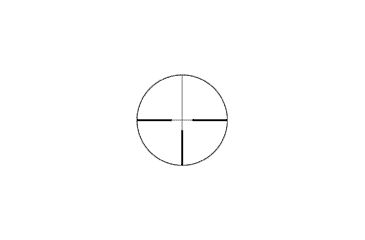

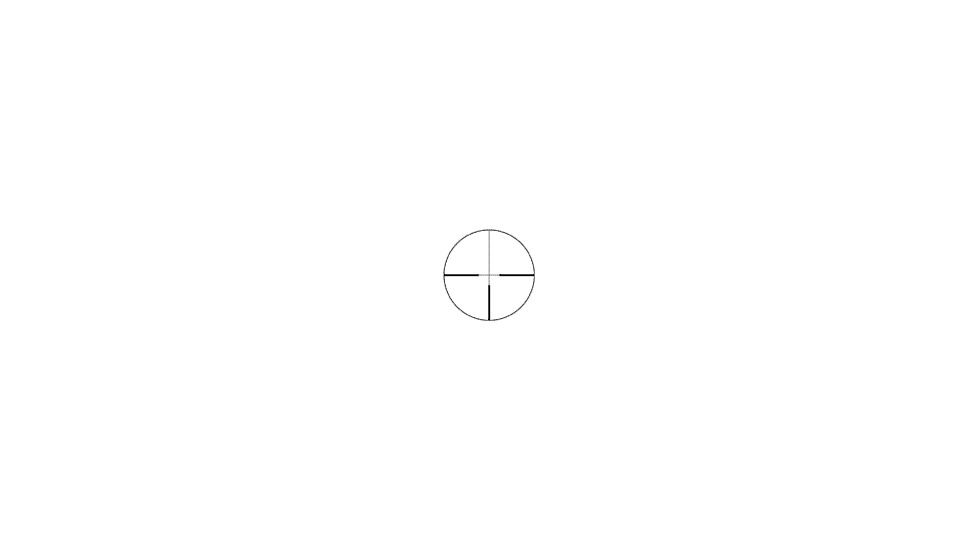

  • Swarovski 52134 - AV 4-12x50 SR Riflescope - 4A Reticle

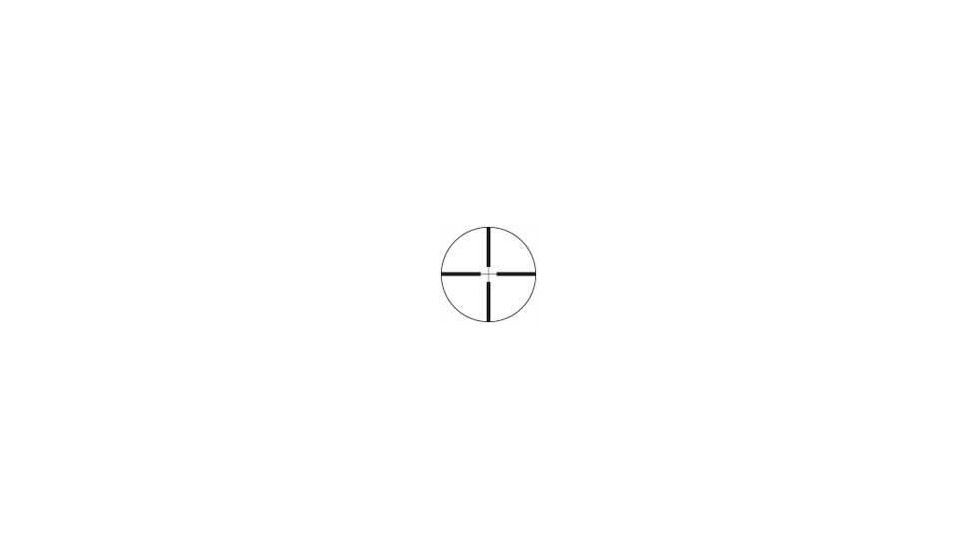

  • Swarovski 52135 - AV 4-12x50 SR Riflescope - Plex Reticle

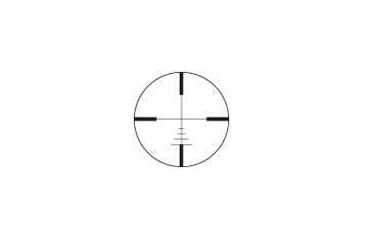

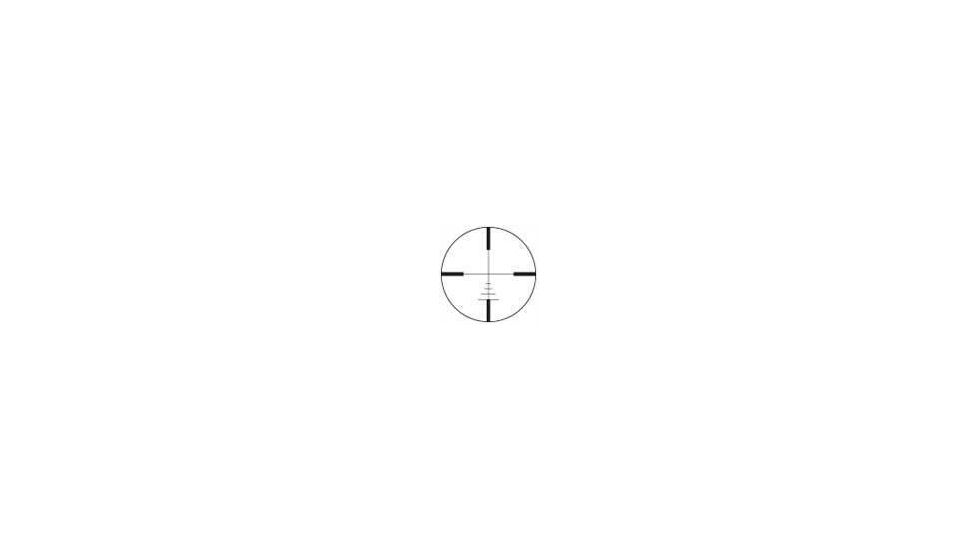

  • Swarovski 52136 - AV 4-12x50 SR Riflescope - TDS Plex Reticle

Specifications for Habicht AV 4 - 12x50 Swarovski Rifle Scopes w/ Rail:

Magnification:   4-12x
Objective lens diameter (mm):   50
Objective lens diameter (in):   1.97
Exit pupil, diameter (mm):   12.5-4.2
Exit pupil, diameter (in):   0.49-0.17
Eye relief (mm):   90
Eye relief (in):   3.5
Field of view, real (m/1000 m):   9.7-3.3
Field of view, real (ft/1000 yds):   29.1-9.9
Field of view, real (degree):   5.5-1.9
Field of view, apparent (degree):   22.7
Diopter compensation (dpt):   ?2.5
Transmission (%):   94
Twilight factor (DIN 58388):   11-25
Impact point correction per click (mm/100 m):   7
Impact point correction per click (in/100 yds):   0.25
Max. elevation/windage adjustment range (m/100 m):   1.2
Max. elevation/windage adjustment range (ft/100 yd):   3.6
Objective filter thread:   M 52 x 0.75
Length, approx. (mm):   343
Length, approx. (in):   13.5
Weight, approx. (oz):   15.5
Functional temperature:   -20 to +55? C (-4 to +131? F)
Storage temperature:   -30 to +70? C (-22 to +158? F)
Submersion tightness:   4 m (13 ft) (filled with nitrogen)

Features of Habicht Swarovski AV 4-12 x 50mm Swarovski Rail Rifle-Scopes:

  • RETICLE
    • Centered reticle in the 2nd image plane (ocular image plane): - For precise shooting with low target coverage, even at high magnification. - For clear recognition, even with small targets at long distances.
    • Patented zero setting system for precision adjustment of the point of impact without tools.
    • Quadratic adjustment area for full edge-to-edge ranging.
  • USABILITY
    • The advantages of the SR mounting rail are best appreciated on calibers with powerful recoil forces, such as big game or wild boar.
    • Fitted without any drill holes on the rifle scope.
    • The rifle scope can be easily changed at any time and without causing any damage.
    • Slender eyepiece for compact mounting.
    • 90 mm (3.5 in) eye relief to protect against recoils, particularly when shooting upwards.
    • Magnification ring with sure grip: easy to use and read when in firing position.
    • Dioptric correction of +/?2,5 diopters.
    • Objective with connection thread for standard photo filter for enhancing contrast.
  • ROBUSTNESS
    • Totally dust- and waterproof, even without turret cap.
    • Sturdy, light main tube
    • Swarovski meshing system for total shock resistance.
    • Can be mounted much closer to the rifle.
    • Rubber cover for the exposed mesh to protect against dust and dirt.
    • Guaranteed Swarovski quality ? long warranty.
    • Sturdy, interlocking fixture: No movement or slippage in any direction. The rifle scope stays firmly in place. No drilling or adhesive necessary

Package Contents:

  • Swarovski Habicht AV 4-12x50mm Rifle Scope - Swarovski Rail

In addition to Swarovski Habicht AV 4-12x50 Rifle Scope - Swarovski Rail, make sure to check other Swarovski Riflescopes and other Swarovski products offered in our store.

Swarovski Habicht AV 4-12x50mm Rifle Scope - Swarovski Rail Riflescope Related Products

Swarovski Habicht AV 4-12x50mm Rifle Scope - Swarovski Rail Riflescope Unorderable Models

Swarovski Habicht AV Riflescope, 4-12x50mm, Swarovski Rail, 4A Reticle 52134, MPN: 52134, UPC: 708026521348, Code: SW-RS-AV412x50SR-52134
Swarovski Habicht AV Riflescope, 4-12x50mm, Swarovski Rail, Plex Reticle 52135, MPN: 52135, UPC: 708026521355, Code: SW-RS-AV412x50SR-52135
Swarovski Habicht AV Riflescope, 4-12x50mm, Swarovski Rail, TDS Plex Reticle 52137, MPN: 52137, UPC: 708026521379, Code: SW-RS-AV412x50SR-52137
