Thermal Eye DVS Kit Product Info

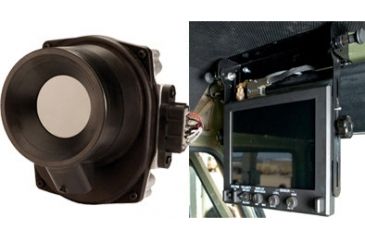

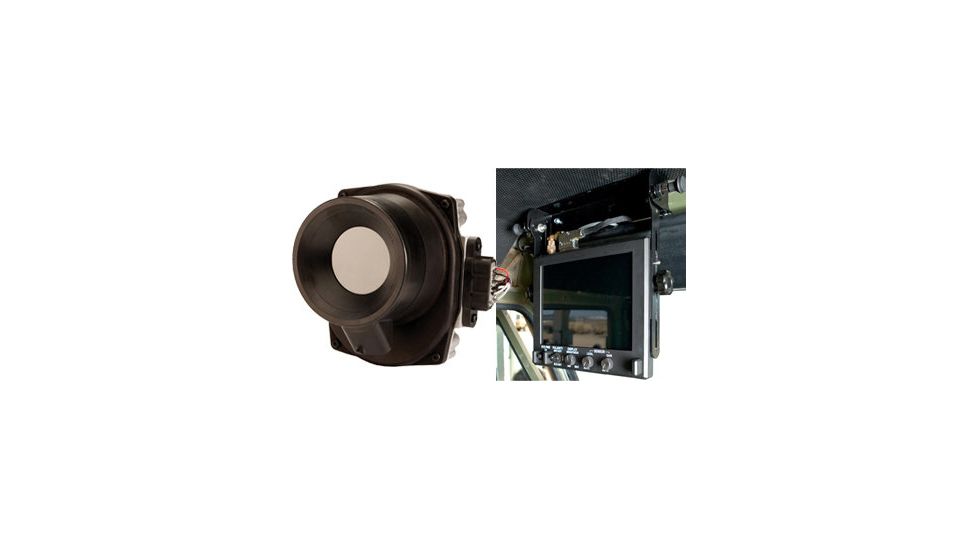

Thermal Eye DVS Kit Driver's Vision System is designed for high performance, real time infrared display to drivers in low visibility conditions. The DVS Kit byimage Thermal Eye is perfect for armed forces operators who need consistently clear thermal imaging in difficult, changing conditions. The thermal imaging DVS Kit includes a sophisticated thermal image camera to provide precise performance.

Thermal-Eye DVS Driver Vision is a high grade thermal imaging assembly that allows covert navigation in tactical situations by providing visual image while keeping all lights off. The Driver Vision System has a gold standard image quality for a guaranteed clear image, solar radiation immunity so there is no damage from sunlight, and gold standard LWIR imaging sensor that can penetrate smoke, dust, haze, rain and sandstorms. Thermal Eye Thermal Imaging delivers tactical grade thermal camera performance and features that excel in the most demanding of environments.

Specifications for Thermal Eye DVS Kit:

    Infrared Camera Assembly Display & Control Module (DCM)
Focal Plane Array & Display Panel: Type & Material: Uncooled Ferroelectric Liquid Crystal Display (LCD)
  Pixel Count (Resolution): 320 x 240 640 x 480 std., 800 x 600 optional (Active area 10.4in (264mm) diagonally)
  Spectral Response: LWIR 7-14μm N/A
  Solar Immunity: 24/7 system availability (FPA cannot be damaged by solar radiation) N/A
Thermal Imaging Performance: Time-to-image at Low-temp Extreme: < 2 minutes < 8 minutes for usable image, < 15 minutes for full frame rate
  Field of View: 24° x 18° 45° x 35° (using 18mm EFL Lens)
  Contrast & Brightness Control: Video contrast & brightness are automatically controlled Contrast Ratio > 60
  Range to detect VEHICLE activity: Up to 3000 feet (914m) Up to 1400 feet (427m)
Electrical Interface: Operating Voltage: 16 to 32VDC
  Video Format: Single-ended driver/receiver via RG-59 Coaxial Cable
Environmental Characteristics: Operating Temperature: -30°C to +75°C -37°C to +49°C
  Vibration: 3g, 5 to 500Hz, 50 hours per axis 1.5g, 5 to 200Hz, 3 hours per axis
  Water & Shock Resistance: Immersion Wash-down with 40psi nozzle
  EMC Compliance: FCC Part 15 FCC Part 15
  Shock: 100G peak, half sine wave, 20ms duration 20G peak, half sine wave, 11ms duration 40G, Sawtooth Pulse, 18 shocks each direction, 11ms duration
Physical Characteristics: Size: 5.4"W x 5.4"H x 3.4"D (13.7cm W x 13.7cm H x 8.6cm D) 9.25"L x 10.25"W x 2"H (23.5cm L x 26.0cm W x 5.1cm H)
  Weight (w/o battery): 2.0lbs (0.91kg) 5.0lbs (2.2kg)
  Mounting Provision: Threaded mount on rear of camera housing Treaded steel inserts on each side of housing
  A-kit Adjustability: Azimuth/Elevation 100° range to accommodate various vehicles

Features of Thermal Eye External Interface Cable:

  • Gold Standard Image Quality - The absolute lowest spatial noise under the most challenging and dynamic scene conditions guarantees a clear image.
  • Immunity to Solar Radiation - The detector suffers zero damage when looking directly at the sun for extended periods of time.
  • Automatic Anti-Icing - Freezing temperatures do not impact or compromise system operability
  • Display Control Module - (640x480 VGA) - Operator may self-select polarity setting, display brightness, sensor level and sensor gain.
  • Easy DIY Installation - Quickly move camera and display between vehicles in less than 10 minutes with pre-installed mounting hardware and cabling.
  • The DCM mounting bracket attaches to the vehicle cab frame above the sun visor and centered with the steering wheel. In the "up" or stowed position, the display is out of view and does not interfere with the driver In the "down" or active position, the DCM is the driver's primary vision interface. All controls are easily accessible when needed.

Package Contents:

  • Thermal Eye DVS Kit Driver's Vision System
  • Display Control Module (DCM)
  • DCM Visor Bracket
  • SM Bracket
  • SM Adapter Bracket
  • Power Cable
  • DCM/SM Interface Cable and Mounting Hardware
  • User manual and installation guide

Thermal Eye DVS Kit Related Products

Thermal Eye DVS Kit Unorderable Models

Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 24deg, HET, MPN: 1000434-0001, Code: EY-HS-DVS-1000434-0001
Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 24deg, HEMTT/PLS, MPN: 1000441-0001, Code: EY-HS-DVS-1000441-0001
Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 24deg, HMMWV, MPN: 1000447-0001, Code: EY-HS-DVS-1000447-0001
Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 45deg, HET, MPN: 1000434-0002, Code: EY-HS-DVS-1000434-0002
Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 45deg, HEMTT/PLS, MPN: 1000441-0002, Code: EY-HS-DVS-1000441-0002
Thermal Eye DVS Kit, Models Thermal Eye DVS Kit, 45deg, HMMWV, MPN: 1000447-0002, Code: EY-HS-DVS-1000447-0002
