Thermal Eye TSC4500 IR Camera Product Info

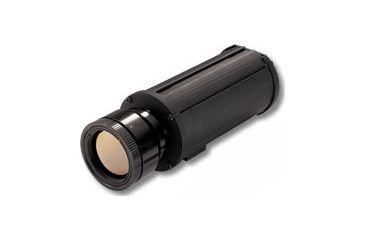

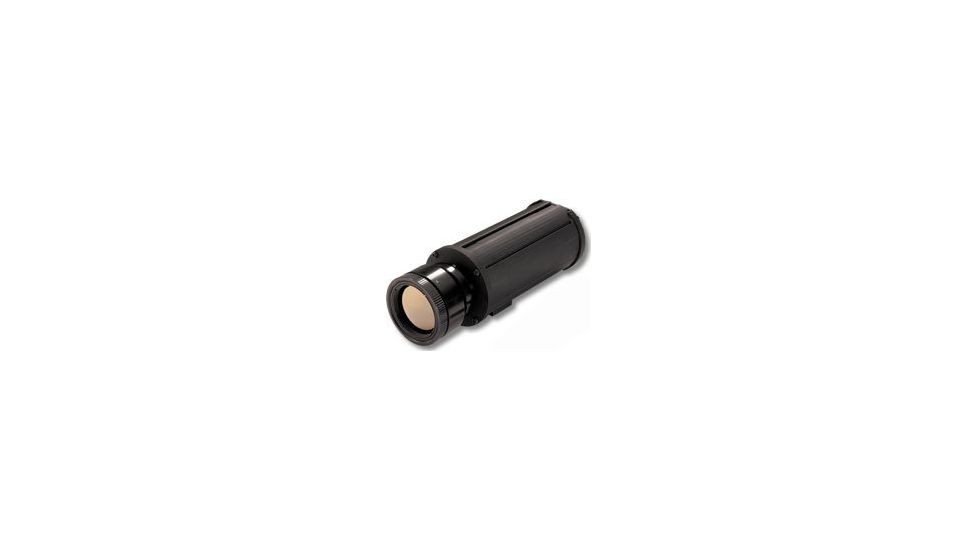

Thermal Eye TSC4500 IR Camera is a thermal security camera ( TSC ) capable of long-range security surveillance. The Thermal-Eye TSC4500 requires no lighting or IR illumination and hasimage a detection range of up to 3,300 ft (1,000 m). The TSC4500 by ThermalEye is an extremely strong thermal image camera and features a weather proof rating of IP67. The Thermal Eye TSC 4500 Camera is a high grade thermal imager equipped with an Amorphous Silicon Microbolometer core providing 320 x 240 resolution for impressive optical performance.

The Thermal Security Camera TSC4500 combines advanced image processing power and a low noise level to provide a clear visual that allows for easy target identification from further distances. Thermal Eye thermal imaging devices deliver exceptional thermal imaging performance and quality thermal cameras that are suitable for tactical situations and high grade security applications.

The following models of Thermal Eye TSC4500 Camera are available in the following field of view / frame rate combinations:

  • 4000143-0009: Thermal Eye TSC4500 (Fixed Base), IR Camera With 50 Deg HFOV (10mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
    • Wide-angle security surveillance for gated entrances and equipment storage
  • 4000143-0010: Thermal Eye TSC4500 (Fixed Base), IR Camera With 50 Deg HFOV (10mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
    • Wide-angle security surveillance for gated entrances and equipment storage
  • 4000143-0001: Thermal Eye TSC4500 (Fixed Base), IR Camera With 25 Deg HFOV (22mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
    • Medium-range facility surveillance for power plants and public utility facilities
  • 4000143-0005: Thermal Eye TSC4500 (Fixed Base), IR Camera With 25 Deg HFOV (22mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
    • Medium-range facility surveillance for power plants and public utility facilities
  • 4000143-0002: Thermal Eye TSC4500 (Fixed Base), IR Camera With 12 Deg HFOV (46mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz
    • Long-range perimeter surveillance for borders, harbors, waterfronts and airfields
  • 4000143-0006: Thermal Eye TSC4500 (Fixed Base), IR Camera With 12 Deg HFOV (46mm) Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz
    • Long-range perimeter surveillance for borders, harbors, waterfronts and airfields

Specifications for Thermal Eye TSC-4500 IR Camera:

Focal Plane Array
Material & Structure: Amorphous Silicon Microbolometer (320 x 240 pixel array)
Spectral Response: 7-14um (filter bandwidth)
Thermal Sensitivity (Detector): <50mK
Refresh Rate: Real-time 30Hz (9Hz available)
Thermal Imaging Performance
Start-up Time: ~4 seconds
Contrast/Brightness: Advanced Image Processing
Optics
Field of View (H x V): Wide Angle (50° x 38°) / Medium Angle (25° x 18°) / Narrow Range (12° x 9°)
Range to Detect Human Activity: Up to 775ft (235m) / Up to 1465ft (445m) / Up to 3300ft (1000m)
f/#: 1.0 Athermalized / 1.2 Athermalized / 1.2 Athermalized
Focus Method: Manual adjust with passive athermalized lens
Video
Analog Output: NTSC (color); Real-time 30Hz frame rate / PAL (color); Real-time 25Hz frame rate
Output resolution: NTSC = 640 x 480 pixels; PAL = 768 x 574 pixels
Customizable Absolute Color: 3 OEM selectable color points are mapped to selectable absolute temperatures
Power
Input Voltage: 9 to 32 VDC
Input Power: ~2.0W for 9 to 32 VDC input at 25° ambient
Interface/Controls
Camera Setup: RS-232 and Advanced GUI Control
Environmental Characteristics
Operating Temperature (Ambient Air Temp): -20°C to 70°C (-4°F to 158°F)
Storage Temperature: -40°C to 105°C (-40°F to 221°F)
EMC Compliance: FCC Part 15 & CE Mark
Weatherproofing: Watertight to IP67
Physical
Size: 8.3"L x 2.5"W x 2.7"H (21.1cm x 6.6cm x 6.9cm)
Color: Black Extruded Anodized Aluminum
Weight: 20oz. (567g)
Mounting Bracket: 1/4" - 20 UNC - 2B Universal top or bottom mount

Features of Thermal Eye Infrared Camera TSC4500:

  • Uses proven Amorphous Silicon Microbolometer detector technology and provides 320 x 240 resolution
  • Watertight to IP67 rating
  • Select optics provide detection of human activity at up to 3,300 feet
  • Equipped with a serial data port for camera diagnostics
  • Fully RoHS-compliant for improved exportability and available with 9Hz frame rate
  • Three field of view (FOV) alternatives provide user's desired detection range
  • No lighting or infrared illumination required to view image
  • Full visibility when smoke, fog or haze is present
  • Rugged, dependable and ideal for long-range security surveillance
  • Compatible with intelligent video analytics software
  • Fits in Pelco enclosures 2500, 3700 and 4700 series
  • "Plug and Play Ready" for easy system integration
  • 4500AS a-Si core offers 320x240 resolution
  • Available with 30Hz or 9Hz refresh rate
  • Available optics include 25° and 12° HFOV
  • Manual adjustment with passive athermalized lens
  • Analog output with NTSC or PAL

Package Contents:

  • Thermal Eye TSC4500 IR Camera

Thermal Eye TSC4500 IR Camera Related Products

Thermal Eye TSC4500 IR Camera Unorderable Models

Thermal Eye Fixed Base, IR Camera/50 Deg HFOV, 10mm Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz 4000143-0009, MPN: 4000143-0009, Code: EY-HS-TSC4500-4000143-0009
Thermal Eye Fixed Base, IR Camera/50 Deg HFOV, 10mm Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz 4000143-0010, MPN: 4000143-0010, Code: EY-HS-TSC4500-4000143-0010
Thermal Eye Fixed Base, IR Camera/25 Deg HFOV, 22mm Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz 4000143-0001, MPN: 4000143-0001, Code: EY-HS-TSC4500-4000143-0001
Thermal Eye Fixed Base, IR Camera/25 Deg HFOV, 22mm Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz 4000143-0005, MPN: 4000143-0005, Code: EY-HS-TSC4500-4000143-0005
Thermal Eye Fixed Base, IR Camera/12 Deg HFOV, 46mm Atherm Lens, NTSC, RS-232, 9600 Baud, 30 Hz 4000143-0002, MPN: 4000143-0002, Code: EY-HS-TSC4500-4000143-0002
Thermal Eye Fixed Base, IR Camera/12 Deg HFOV, 46mm Atherm Lens, NTSC, RS-232, 9600 Baud, 9 Hz 4000143-0006, MPN: 4000143-0006, Code: EY-HS-TSC4500-4000143-0006
