Trijicon's revolutionary Advanced Compact Optical Gunsight (ACOG), originally designed for the military, is now offered in a lightweight compact design. Available in a variety of reticle and magnification configurations, Trijicon Compact ACOG Gun Scope is ideally suited for a wide range of firearm applications and shooting situations. Trijicon Compact ACOG Day&Night Scope is the smaller, lighter weight and more compact version of full sized Trijicon ACOG Weapon Sight. Even with its reduced size, the Compact ACOG Riflescope by Trijicon delivers the same precision any-light aiming capabilities…the same accuracy…and the same tough, dependable performance as the original Trijicon ACOG Riflesight. At less than 6 ounces, Trijicon Compact ACOG BAC Scope Sight is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues

Trijicon 3x24 ACOG Advanced Combat Optical Gun Sight with Special Ring Base and BAC TA-40 provides weapons like the M16/M4 with excellent fire control capability. Targets are easier and quicker to acquire through Trijicon TA39 3x24mm Riflesights because of the larger field of view (8.3 degrees) and eye-friendly design.Trijicon ACOG is internally-adjustable, compact telescopic scopes with tritium illuminated reticle patterns for use in low light or at night. Bindon Aiming Concept (BAC) Gun Scopes feature bright daytime reticles using fiber optics which collect ambient light. Trijicon 3 x 24 ACOG Gun Scope combines traditional, precise distance marksmanship with close-in aiming speed. Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions -- without failure-prone batteries.

Available Trijicon TA39 Compact ACOG 3 x 24mm Scopes:

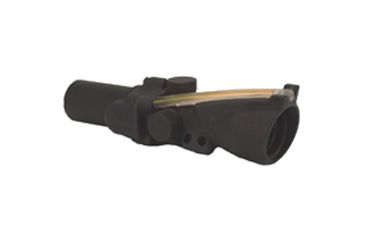

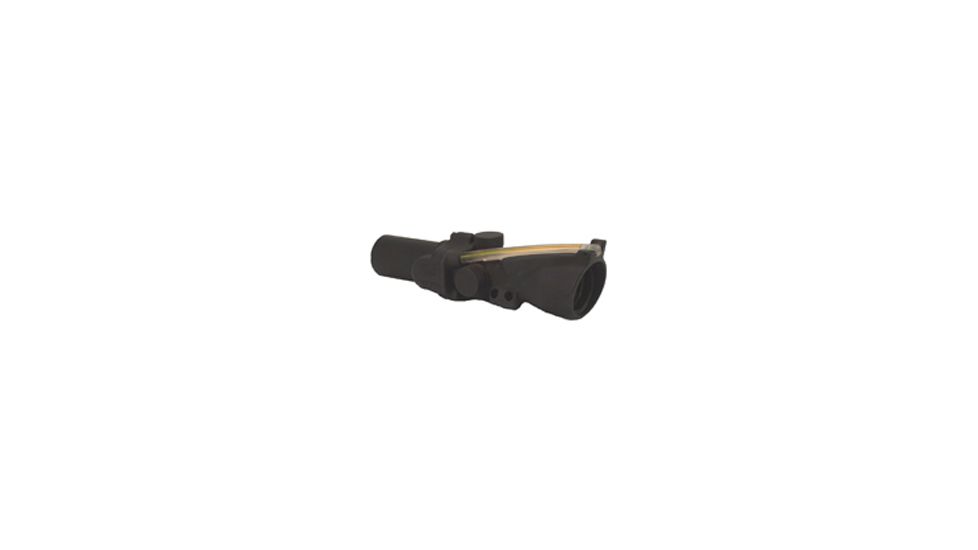

• Trijicon TA39-2 Compact ACOG 3x24 BAC Gun-Sight with Special Ring Base and BAC - Amber Triangle Reticle

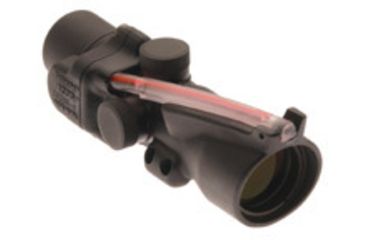

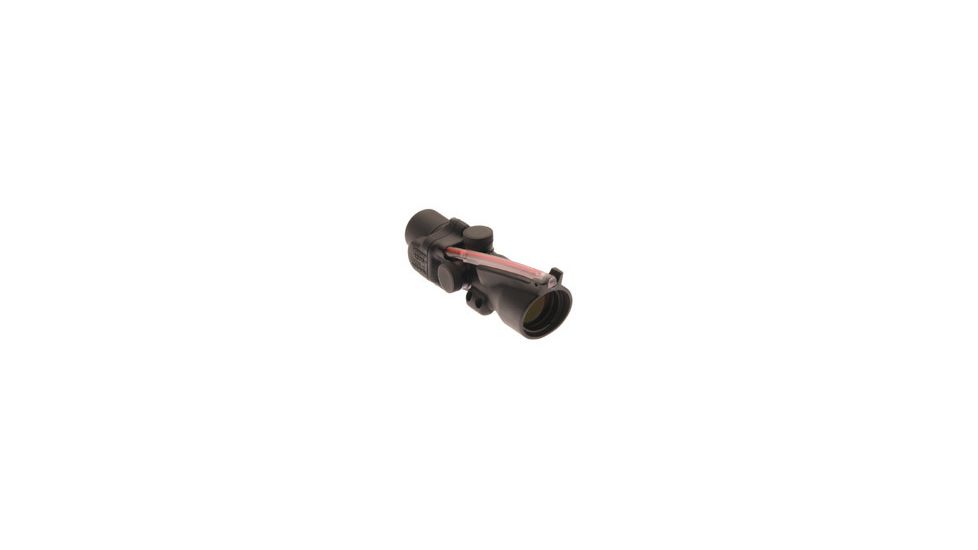

• Trijicon TA39R-2 Compact ACOG 3x24 BAC GunSight with Special Ring Base and BAC - Red Triangle Reticle
• Trijicon TA39-4 ACOG Compact 3x24 Gun-Scope with Special Ring Base and BAC - Amber Crosshair Reticle
• Trijicon TA39R-4 ACOG Compact 3x24 GunScope with Special Ring Base and BAC - Red Crosshair Reticle
• Trijicon TA39-6 ACOG 3x24 BAC Compact Rifle-Scope with Special Ring Base and BAC - Amber Dot Reticle
• Trijicon TA39R-6 ACOG 3x24 BAC Compact RifleScope with Special Ring Base and BAC - Red Dot Reticle

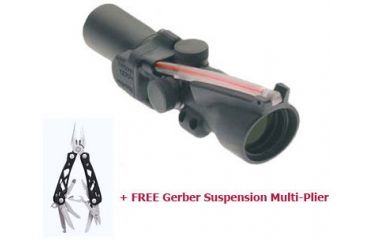

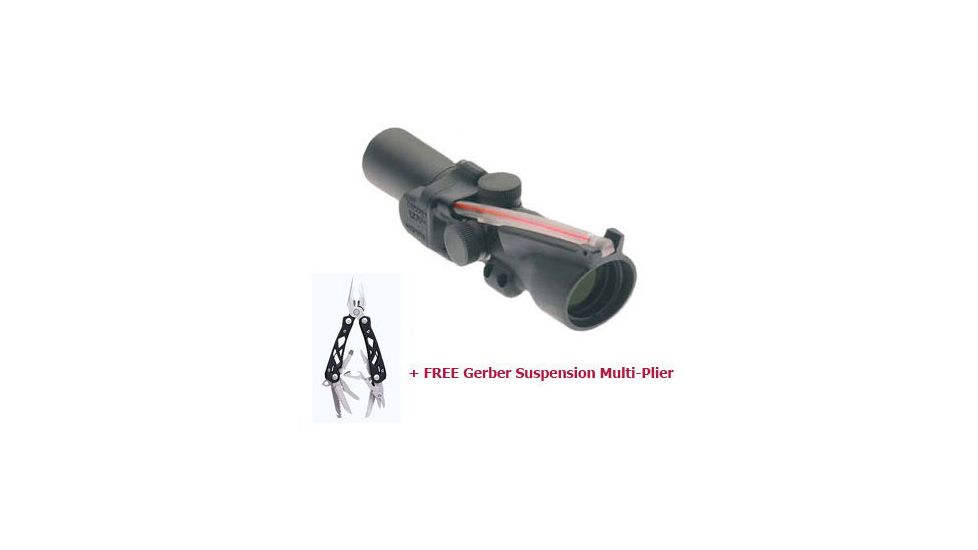

Included with each model is a FREE Gerber Suspension Multi-Plier 1471, a $28.99 value.

Amber Triangle Reticle

Red Triangle Reticle

Amber Dot Reticle

Red Dot Reticle

Amber Crosshair Reticle

Red Crosshair Reticle

For more information on Trijicon Compact Advanced Combat Optical Riflesights please make sure to check out the Trijicon Compact Advanced Combat Optical Gunsights Catalog  in PDF format (~120Kb).

For 360° Spin of Trijicon ACOG Rifle Scope please click here

Specifications for Trijicon 3x24 ACOG Rifle-Sigth w/ Tritium-Illuminated Reticle and BAC for Special Rings:

Magnification:		3
Objective Size:		24
Bullet Drop Compensator:		No
Length (in):		5.00
Weight (oz):		5.60
Illumination source:		Fiber Optics/Tritium
Reticle Pattern:		Dot / Triangle / Crosshair
Day Reticle Color:		Amber / Red
Night Reticle Color:		Amber / Red
Calibration:		N/A
Bindon Aiming Concept:		Yes
Eye Relief (in):		1.40
Exit Pupil (mm):		8.00
Field of View (°):		4.90
Field of View @ 100yrds (ft):		25.60
Adjustment @ 100 yds (clicks/in):		3
Tube Size:		N/A
Mount:		N/A
Mount On/Comes With:		Requires the purchase of a special ring mount designated by MM then the model number (ie. MM02)
Housing Material Forged:		Forged Aluminum
Special Order:		Yes

Features of Trijicon 3 x 24 ACOG Gun-Sights w/ Special Ring Base, Tritium-Illuminated Reticle and BAC:

• Military- Grade Aluminum Alloy Housing
  Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system
• Bindom Aiming Concept (BAC)
  Trijicon ACOG Sights equipped with BAC allow use of the both-eyes-open aiming method along with scope magnification sighting for rapid target acquisition - in any light
• Longer Eye-Relief
  Maximum eye-relief for larger caliber rifles and large exit pupil for faster target acquisition
• Internally adjustable
  Since only the prism housing moves, Trijicon ACOG is much more rugged than conventional design
• Waterproof to 100 Feet / 50 Meters
  Dry nitrogen filled to eliminate fogging
• Trijicon Fiber Optics
  Automatically adjucts the brightness level and contrast of the reticle to available light conditions
• Totally Battery-Free
  ACOG delivers inceased hit potentional in all lighting conditions - without the use of failure-prone batteries
• Broad Band Anti-Reflective Coated Lenses
• Multi-coated lenses provide superior clarity and light gatherin capabilities with zero distortion
• Ideal for hunting, even among multiple, moving target
• Proudly Made in the U.S.A.
• Lifetime Warranty

Package Contents:

• Trijicon 3x24 A.C.O.G. Advanced Compact Optical Gunsigth with Tritium-Illuminated Reticle, Special Ring Base and BAC - Special Order
• Gerber Suspension Multi-Plier 1471

In addition to Trijicon ACOG Compact Tritium-Illuminated Reticle & BAC 3x24mm Day & Night Combat Scopes w/ Special Ring Base TA39 - Special Order, make sure to check other Trijicon Riflescopes and other Trijicon products offered in our store.
