Select a Model

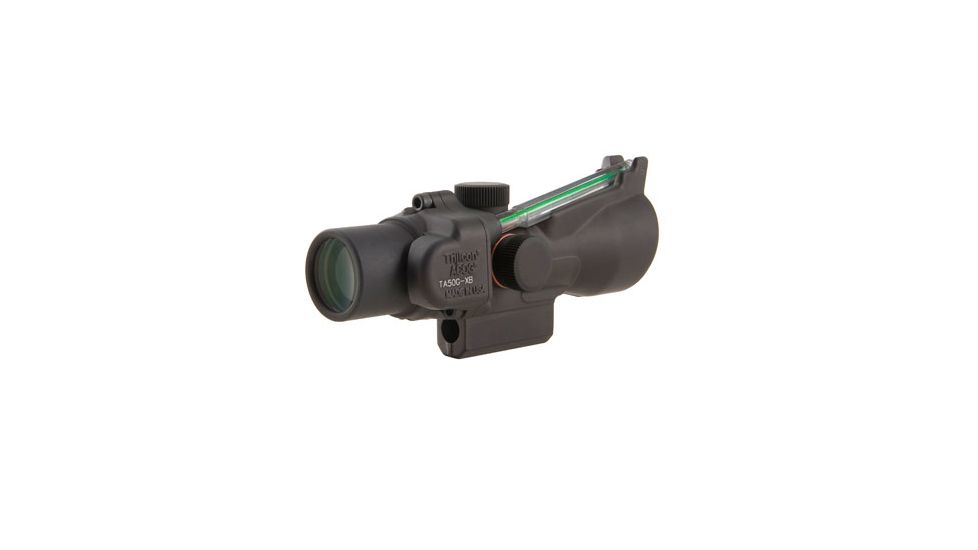

Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 400-440FPS TA50G-XB3
$992.80 $1,168.00 Save 15%
Model: Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 400-440FPS TA50G-XB3
Code: TJ-BW-3x24CS-TA50G-XB3
MPN: TA50G-XB3
UPC: 719307304970

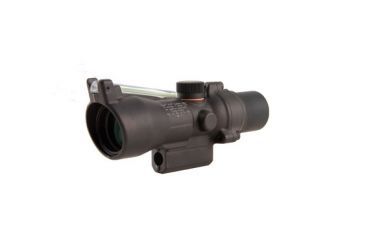

Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 340-400FPS TA50G-XB2
$992.80 $1,168.00 Save 15%
Model: Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 340-400FPS TA50G-XB2
Code: TJ-BW-3x24CS-TA50G-XB2
MPN: TA50G-XB2
UPC: 719307304963
Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 300-340FPS TA50G-XB1
$992.80 $1,168.00 Save 15%
Model: Trijicon ACOG 3x24 Crossbow Scope w/ Green Chevron Reticle, 300-340FPS TA50G-XB1
Code: TJ-BW-3x24CS-TA50G-XB1
MPN: TA50G-XB1
UPC: 719307304956

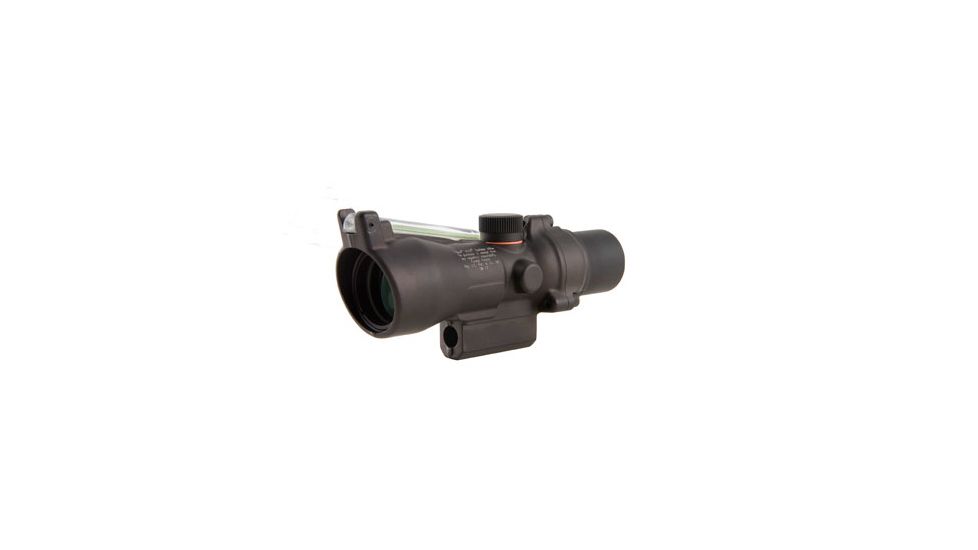

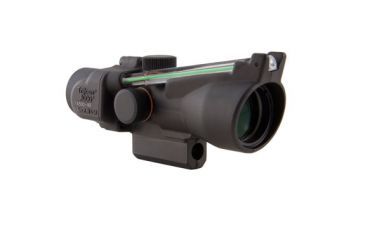

Trijicon ACOG 3x24 Crossbow Scope Product Info

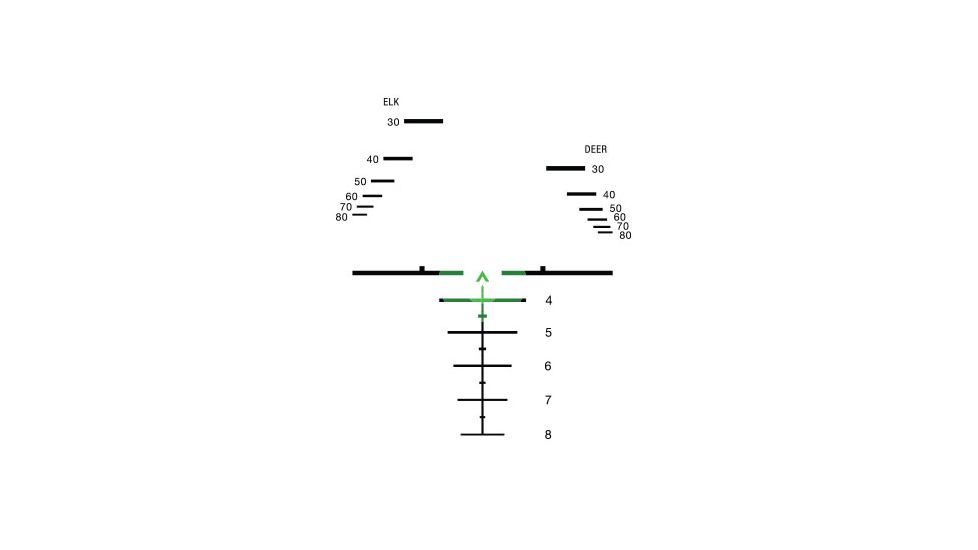

The Trijicon 3x24m ACOG Crossbow Scope w/ Green Chevron Reticle TA50G is the first truly high performance optic designed specifically for crossbows. This Crossbow Sight from the professional product people at Trijicon has an illuminatedimage reticle that can accommodate incredibly high speeds, features bolt drop stadia lines out to 80 yards, and has Bad River Outdoors patented deer/ elk ranging capabilities. Combined, all of the features of the Trijicon Green Chevron Reticle Advanced Combat Optical Gunsight For Crossbows - 3x24mm, provide the ability for ranging and hold-over, all in the field of view. This Trijicon Illuminated Cross Bow Sight is made of a forged steel material that ensures a long lasting and durable product. The Fiber Optic and Tritium light source on the Trijicon ACOG 3x24mm Crossbow Scope are guaranteed to be bright and effective for an extremely long time, without fading or dimming.

TA50G-XB1: Trijicon ACOG Crossbow Scope - 3x Magnification, 24mm Objective, Green Chevron Reticle, 300-340 FPS
TA50G-XB2: Trijicon ACOG Crossbow Scope - 3x Magnification, 24mm Objective, Green Chevron Reticle, 340-400 FPS
TA50G-XB3: Trijicon ACOG Crossbow Scope - 3x Magnification, 24mm Objective, Green Chevron Reticle, 400-440 FPS

Specifications for Trijicon ACOG 3x24mm Illuminated Scope for Crossbows:

Magnification: 3x
Objective Size: 24mm
Bolt Drop Compensator: Yes
Length (In): 5 in.
Weight (oz): 5.89 oz.
Illumination Source: Fiber Optics & Tritium
Reticle Pattern: Triangle
Day Reticle Color: Green
Night Reticle Color: Green
Bindon Aiming Concept: Yes
Eye Relief: 1.4 in.
Exit Pupil: 8 in.
Field of View: 4.9°
Field of View @ 100 yards (ft): 25.6 ft.
Adjustment @ 30 yards (clicks/in): 9
Mount Comes With: Carry Handle
Housing Material: Forged Aluminum

Features of Trijicon ACOG Green Chevron Crossbow Sight - 3x24mm:

  • High Performance Optics
  • Illuminated Reticle
  • Bolt Drop Stadia Lines out to 80 Yards
  • Bad River Outdoors' patented deer/ elk ranging capabilities
  • Ranging and hold-over, all in the field of view

Package Contents:

  • Trijicon 3x24m ACOG Crossbow Scope w/ Green Chevron Reticle TA50G
  • 1 Carry Handle Screw and Washer Set (TA30)
  • 1 Compact ACOG ScopeCoat (TA62)
  • 1 LENSPEN (TA56)
  • 1 Trijicon Logo Sticker (PR15)
  • 1 Manual
  • 1 Warranty Card
