UNICO Colpo-Master II Colposcope S-Video Set, S-Video Camera with C-Mount CS205T-SV
$6,999.00 $8,565.00 Save 18%
Model: UNICO Colpo-Master II Colposcope S-Video Set, S-Video Camera with C-Mount CS205T-SV
Code: UI-LI-CPSVP-CS205T-SV
MPN: CS205T-SV
UNICO Colpo-Master II Colposcope S-Video Set, S-Video Camera, 15in Monitor CS205T-SVM
$8,199.00 $9,925.00 Save 17%
Model: UNICO Colpo-Master II Colposcope S-Video Set, S-Video Camera, 15in Monitor CS205T-SVM
Code: UI-LI-CPSVP-CS205T-SVM
MPN: CS205T-SVM

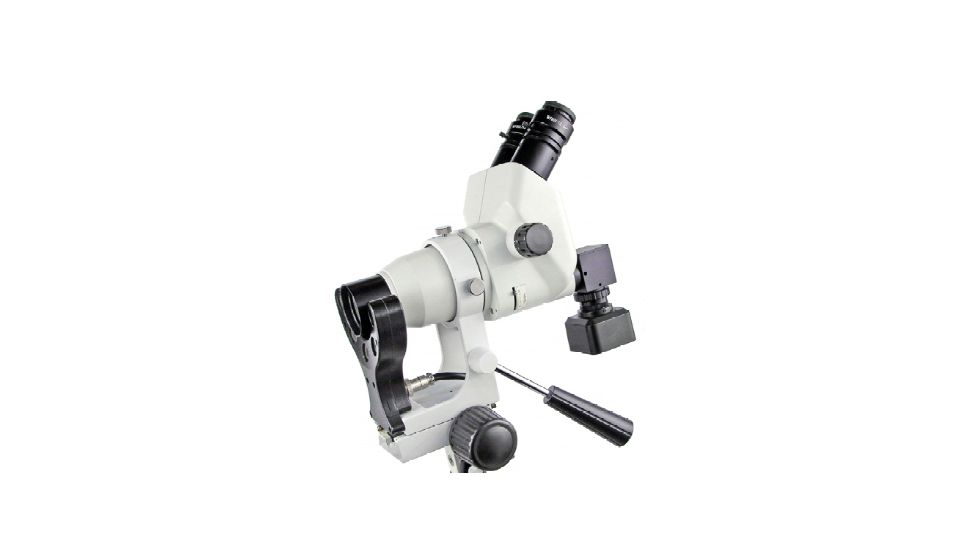

UNICO ColpoMaster II Colposcope S-Video Set, Camera, Monitor, FrameGrabber CS205T-SDV
$9,029.00 $10,925.00 Save 17%
Model: UNICO ColpoMaster II Colposcope S-Video Set, Camera, Monitor, FrameGrabber CS205T-SDV
Code: UI-LI-CPSVP-CS205T-SDV
MPN: CS205T-SDV

UNICO Colpo-Master II Post Mount Colposcope S-Video Packs Product Info

Unico Colpo-Master II Post Mount Colposcope S-Video Packs bring a new degree of documentation to your professional-grade Unico colposcopes. These Unico microscopes take a professional gradeimage colposcope, the Unico ColpoMaster 2, and outfit it with a powerful S-Video camera and your choice of accessories. The S-Video camera easily mounts to the C-mount of the colposcope's trinocular head, where it can begin taking analog video with its high-quality CCD sensor. That's all you'll get with the CS205T-SV edition of the Unico ColpoMaster II S-Video Kit, but you can also choose one of the other two models for additional accessories. The CS205T-SVM model includes a 15" flat screen monitor, allowing you to conduct tests without having to stare into the trinocular eyepiece (it's also handy for comparing data with colleagues). The most comprehensive version, the CS205T-SDV model, includes the video camera, monitor, and a laptop-ready Frame Grabber, which can convert analog video images from the S-Video camera to digital files for easier cataloging and duplication. All these accessories are easily attached to the Unico Colpo-Master II Post Mount Colposcope with the included C-Mount and installation tool kit.

Aside from the digital imaging accessories, the Unico Colpo Master 2 Trinocular Colposcope is a powerful microscope in its own right. These professional-grade laboratory instruments can give you crisp, 3D images of the cervix, helping you to detect cervical cancer and other aberrations with great accuracy. These colposcopes have an objective magnification ranging from 3.9x to 27x and everywhere in-between with its continuous zoom functionality. Clarity and comfort are strong points of the Unico Colpo-Master II Trinocular Colpo-Scope S-Video Pack, with independent diopter adjustment for each eyepiece and a fairly large 298mm working distance.

The Unico Colpo Master 2 Post Mount Colpo Scope is highly effective, but it's almost as easy to use as a standard microscope. It's certainly larger than a normal microscope, but its five-legged, wheeled base makes it almost as easy to maneuver into position as a microscope. Plus, the low profile of the wheels enables them to go under and in an examination table for the perfect angle and distance. A smooth suspension system on the Unico ColpoMaster II Video Colposcope's center column cushions the colposcope from harm, and Unico has built it to be height adjustable up to 53 inches. Advanced fiber optics make for a clear, noise-free image every time you use the colposcope, and you'll always have enough lighting due to the 150 watt quartz halogen lamp at the center of the colposcope. You can even adjust the lamp's brightness using the variable intensity rheostat dial. For a powerful colposcope that comes packaged with all the tools you need to record, view, and organize all your examinations, choose the Unico Colpo Master 2 Trinocular Colposcope S Video Package.

Available Models of Unico Colpo Master 2 Post Mount S-Video Packs:

  • CS205T-SV: ColpoMaster II Trinocular Colposcope, S-Video Camera with C-Mount
  • CS205T-SVM: ColpoMaster II Trinocular Colposcope, S-Video Camera, 15in Monitor
  • CS205T-SDV: ColpoMaster II Trinocular Colposcope, S-Video Camera, 15in Monitor, Frame Grabber

Specifications for Unico Colpo-Master II Post Mount Colposcope Video Camera Kit:

Colposcope Head: Video-ready trinocular with C-Mount
Stand: Center Post
Zoom: Continuous Zoom
Magnification Rate: 3.9x to 27x
Eyepiece Magnification: 20x
Field of View: 3.9x - 58.5mm; 27x - 8.5mm
Working Distance: 11.75"
Head Inclination: 45-90°, adjustable
Interpupillary Distance: 55mm to 75mm
Lamp: 150 watt quartz halogen
Height: 44" to 53", adjustable
Radius: 24"
Weight: 33 lbs, fully assembled
Shipping Weight: 65 lbs
Camera Resolution: 480TVL
Camera Sensor: CCD
Camera Interface: S-Video
Monitor Size: 15" (CS205T-SVM, CS205T-SVD only)

Features of Unico ColpoMaster 2 Colposcope with S-Video Camera:

  • Professional-use center post colposcope from Unico
  • Comes packaged with a 480TVL S-Video camera with C-Mount
  • Optional 15" flat screen monitor and/or digital frame grabber
  • Full continuous zoom magnification from 4x to 27x
  • 20x eyepiece zoom
  • Video-ready trinocular eyepiece with C-Mount
  • Independently focusing dual diopters in eyepiece
  • 5-legged, easy to maneuver base can slide under exam tables
  • Fiber optic design
  • 150 watt quartz halogen bulb with variable intensity rheostat
  • Built-in green filter
  • Adjustable height center post
  • Comes with dust cover, spare bulb, power cord, manual, and installation tool kit
  • Covered by Unico's 7 year limited warranty and the 1 year warranty on electrical systems (excluding fuses and bulbs)

Package Contents:

  • Unico Colpo-Master II Post Mount Colposcope S-Video Packs
  • Dust cover
  • Spare bulb
  • Power cord
  • Operations manual
  • Tool kit
