Product Discontinued by Manufacturer

UNICO G304 Series Binocular Microscope has been discontinued by UNICO and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Microscopes category yourself to try and find the perfect replacement for you!

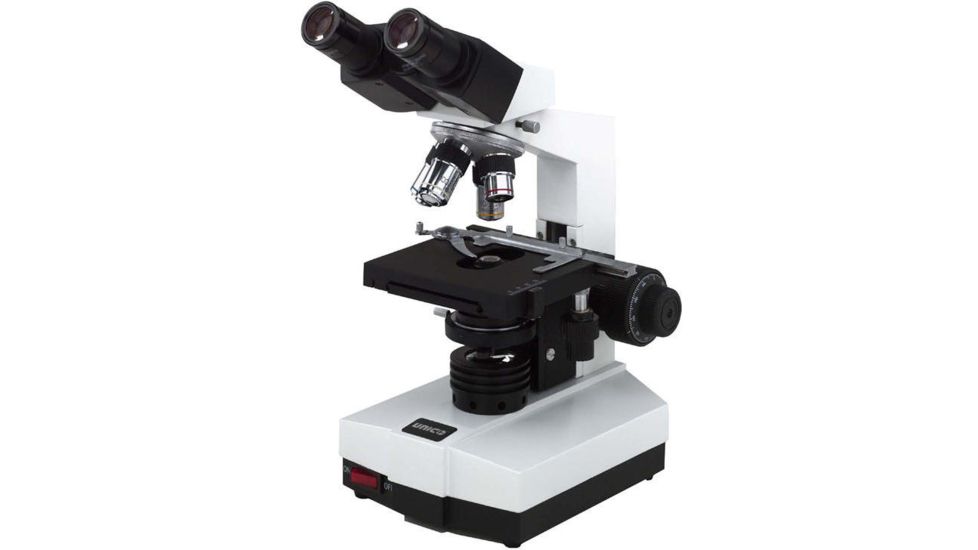

UNICO G304 Series Binocular Microscope Product Info

UNICO G304 Series Binocular microscopes are designed for medical, veterinary and educational uses. Whether it is for use in a busy physician's practice, a researchimage department, or anyone else needing the best microscope available, the versatile G300 Microscope series from UNICO has a model of professional microscope to meet your science, research, and practice needs. All models of UNICO G300 Microscopes include standard WF10x eyepieces, mechanical stage, Abbe NA1.25 condenser, 6 volt / 20 Watt illumination bulb, and four microscope objective lenses. The UNICO Microscope G300 series is also available in monocular and trinocular Microscope options.

  • Available models of UNICO G304 Binocular microscopes include:
  • G304: UNICO Binocular Microscope with 4x, 10x, 40xr,100xr Achromat objective lenses
  • G304PH: UNICO Binocular Microscope with 4x, 10x, 100xr Achromat and 40x Semi-plan Phase Contrast objective lenses
  • G304PL: UNICO Binocular Microscope with 4x, 10x, 40xr,100xr Plan Achromatic objective lenses
  • G304SP: UNICO Binocular Microscope WF10x 4x,10x,40xr,100xr Semi-plan objective lenses

We are an authorized dealer for genuine UNICO laboratory instruments. We specialize in selling the best laboratory equipment, scientific instruments, lab glassware and more. Our selection of medical lab equipment includes a wide variety of Microscopes, microscope accessories, Centrifuges and other lab equipment supplies. From student microscopes to microhematocrits, everything we sell is backed by our 100% satisfaction guarantee, and items over $29.95 quality for free shipping. Our on-staff product experts are available to answer your questions about any product we sell to make sure your buying experience is the best.

Specifications for UNICO G304 Series Microscope:

Stage size: 125 x 130 mm
Stage X-Y travel: 30mm x 60mm
Stage graduation: 0.1mm

Features of UNICO G304 Series Binocular Microscope:

  • Head: Precise Binocular heads with high quality coated prisms, and a 360° rotation
  • Eyepiece: WF10X/18 eyepieces
  • Objectives: All optical surfaces are precisely polished and coated for best resolution and contrast. The DIN standard objectives are parfocal, parcentered and color-coded. Achromatic, semi-plan and plan objectives are available
  • Ruggedly constructed al metal stand features low position coaxial coarse and fine focusing mechanism with tension control and safety stop. Precentered Abbe condenser NA 1.25 with iris diaphragm and filter holder sit firmly in the adjustable substage
  • Built-in graduated mechanical stage use ball bearing and precise dovetail mechanism and features low coaxial controls. It is 125 mm x 130 mm in size and has X-Y travel of 30 mm x 60 mm with graduation of 0.1 mm
  • Sturdy metal base accommodates a 6V, 20W halogen lamp assembly with brightness intensity control assuring steady, even illumination at all levels. A newly designed lamp compartment features a swing out lamp socket for easy, instant lamp changes
  • UL & CSA approved electrical parts, three wire grounded electric cord
  • 5-year limited warranty

Package Contents:

  • UNICO G304 Series Binocular Microscope
  • Dust cover

UNICO G304 Series Binocular Microscope Related Products

UNICO G304 Series Binocular Microscope Unorderable Models

UNICO Binocular Microscope WF10x 4x,10x,40xr,100xr Achromat Mech. Abbe N.A.1.25 6v/20w, MPN: G304, Code: UI-MI-MICROG304-G304
UNICO Binocular Microscope WF10x 4x,10x,40xr,100xr Semi-plan Mech. Abbe N.A.1.25 6v/20w, MPN: G304SP, Code: UI-MI-MICROG304-G304SP
UNICO Binocular Microscope WF10x 4x,10x,100xr achromtic and 40X Semi-plan Phase Contrast, 6 Volt / 20 Watt, MPN: G304PH, Code: UI-MI-MICROG304-G304PH
UNICO Binocular Microscope WF10x 4x,10x,40xr,100xr Plan Objectives, Mech. Abbe N.A.1.25 6v/20w, MPN: G304PL, Code: UI-MI-MICROG304-G304PL
