UNICO G506 Epi-Fluorecence Binocular Microscope w/ Seidentopf Head, Paired 10x Eyepiece, Infinity Plan Objective 10x-20x-40x-100x, EPI-fluorescent Attachment w/ Blue(B3), Green(G3),UV3 filters, Incident 100W Mercury Illuminator & Power Supply G506
$4,829.00 $6,882.00 Save 30%
Code: UI-MI-G506
MPN: G506
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $4,83239 You Save 30%

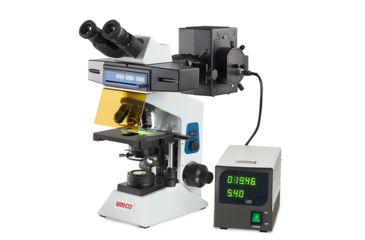

UNICO G506 Epi-Fluorescent 100w Illuminated Mercury Infinity Plan 10x-100 Objective Microscope Product Info

The Unico G506 Epi-Fluorescent Illuminated Microscope has been designed on a universal platform, making it the ideal advanced microscope for any scientist. This Illuminated Microscope manufactured by the product engineersimage at UNICO is made with Plan Infinity Epi-Fluorescent objective lenses that provide you with amazingly clear images that will help you to see your specimens like never before. The Unico Microscope has an integrated mechanical stage has low coaxial controls and uses dovetail and ball bearing technology to move. This UNICO Microscope is made with a Abbe NA 1.25 condenser with a graduated iris diaphragm.

G506: Unico G506 Epi Fluorescent Bincoular Microscope - Seidentopf Head, 10x Paired Eyepiece, 10x/20x/40x/100x Infinity Plan Objective Lens, EPI Fluorescent Attachment w/ Blue B3, Green G3, UV3 Filters, Incident 100W Mercury Illuminator, Power Supply

Specifications for UNICO Illuminated Microscope 4x-100x:

Head: Binocular
Eyepiece: WFX10
Objective: Plan Infinity Epi-Fluorescent 10x, 20x, 40x, 100x (oil)
Stage: Mechanical Integrated 150x140
Condenser: Abbe NA 1.25
Illuminator: 100w Mercury + LED

Features of Unico G506 Series Binocular Microscope:

  • Seidentopf Head
  • EPI-fluorescent Attachment w/ Blue(B3), Green(G3) UV3 filters
  • Infinity Plan Objective 10x-20x-40x-100x
  • 5 Position nose piece
  • WF10X/FN 18 High point eyepieces
  • A pointer or reticule can be added
  • Objectives are parfocal, parecentered and color-coded
  • The low position coaxial coarse and fine focusing system designed to lessen user fatigue
  • The coarse focus tension control allows to increase or decrease the focusing tension
  • The safety stop prevents damage to objectives and specimens
  • The fine focusing is graduated at 0.002 mm
  • Ruggedly constructed all metal stand and broad low profile base
  • Heavy duty, built-in mechanical stage uses ball bearings and a dovetail mechanism
  • Low coaxial controls
  • Built-in LED illuminator with field diaphragm provides Koehler type illumination for sharp images
  • The brightness intensity control is conveniently located and provides steady even illumination at all levels

Package Contents:

  • G506 Epi-Fluorescent Seidentopf Binocular Head Illuminated Microscope G056
  • EPI-fluorescent Attachment w/ Blue(B3), Green(G3) UV3 filters
