UNICO S-1205 Spectrophotometer,5nm Bandpass,220V S-1205E
$1,239.00 $1,635.00 Save 24%
Code: UI-SE-S-1205E
MPN: S-1205E

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

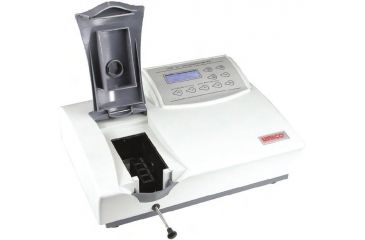

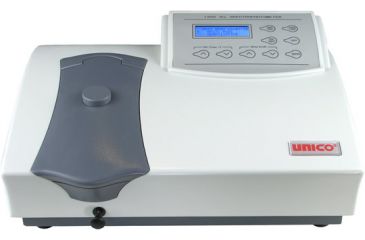

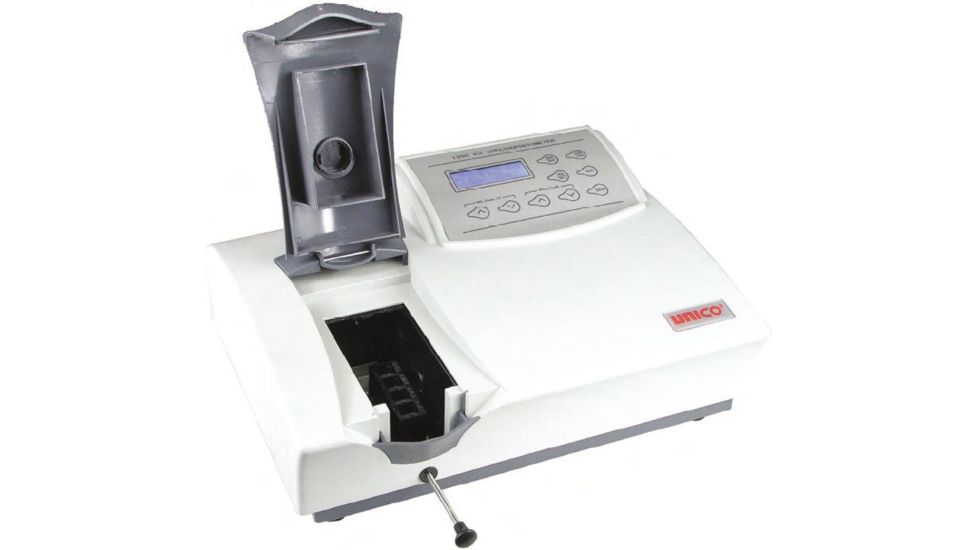

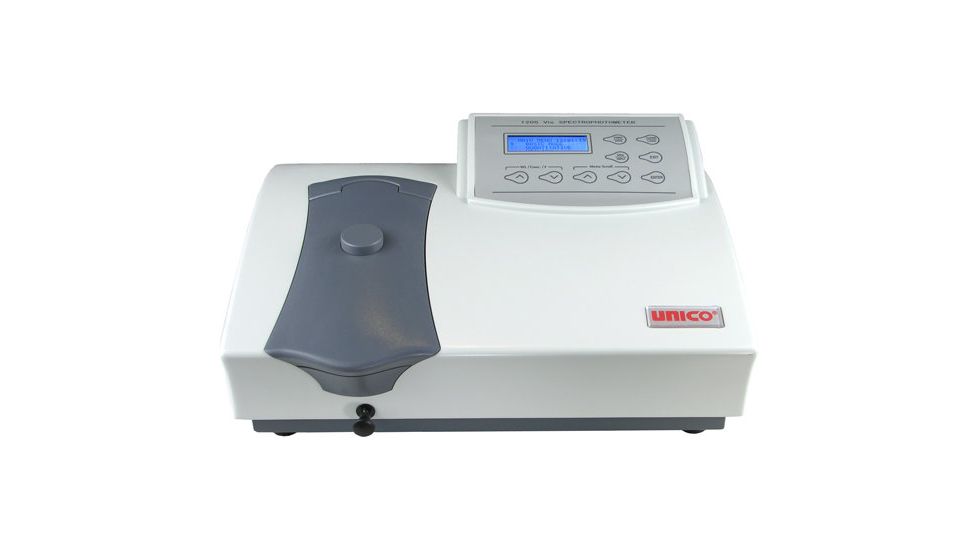

UNICO S-1205E Spectrophotometer - 5nm Bandpass, 220V Product Info

UNICO S-1205E Visible Spectrophotometer - 220V, 4 nm Bandpass is part of the 1200 series of Spectrophotometers from UNICO. This new, advanced design expands on the visible spectroscopy capabilities of its analog cousin, the S1200. The S1205 is an all digital, fully programmable UNICO Spectrophotometer with 5nm accuracy and push button, digital key pad wavelength change. This versatile UNICO instrument features a wide sample compartment and can accept cuvettes up to 50 mm path-length and a variety of accessories. The wide path length and optional accessories make this unit ideal for water testing, environmental and petroleum industry testing. The UNICO S-1205 Visible Spectrum Spectrophotometer has a high quality silicon photodiode detector and 1200 lines/mm grating to assure high performance. A 4-line digital display, built-in filters, and automatic spectrophotometer calibration makes testing a snap. Separately-sold Windows software package converts the S-1205 into a very cost effective scanning spectrophotometer. Maximize the accuracy and efficiency of your laboratory with a quality UNICO Spectrophotometer.

We make the best laboratory equipment available to you at the best prices. We have all the microscope parts and microscope accessories you need for research, lab and clinical work. We can also help you keep your shelves well stocked with lab equipment supplies, from test tubes to microscope slides and more. All items in our store are backed by our 100% satisfaction guarantee, and items over $ quality for free shipping. Our on-staff product experts are available to answer your questions about any product we sell, and our professional customer service staff will ensure that your buying experience is a pleasure.

Specifications for UNICO S-1205E Spectrophotometer:

Wavelength Range: 325-1000 nm Visible Wavelength
Slit Width: 5 nm
Optical System: Single Beam, Grating System 1200 Lines/nm
Wavelength Accuracy: +- 2nm
Wavelength Repeatability: +- 1nm
Wavelength Resolution (display): 1nm
Photometric Accuracy: +-0.004 A at 0.5 A
Photometric Range: 0% T to 125% T; -0.3 to 2.5 A; -9999 to 9999
Photometric Repeatability: +-0.003A at 0.5 A
Stray Light: less than or equal to 0.3% T at 340 nm
Stability: +-0.002 A/hour at 500nm after 1-hour warmup
Baseline flatness: +-0.010 A with PC software
Display: Abs and %T
Quantitative mode: Standard curve 1st through zero, 1st, Factor
Memory capability: up to 200 standard curves
Utility: Dark current, D2 on/off, system self calibration
Power requirements: 100-240 VAC, 100W
Size: 20"W x 17"D x 8"H

Features of UNICO S1205E Spectrophotometer:

  • Self-calibration feature performs automated system check and calibration of bulb, filter positioning, and wavelength
  • Utility folder menu includes Recalibrate System, Check Dark Current for diagnostic purposes, Re-Set Time, and more.

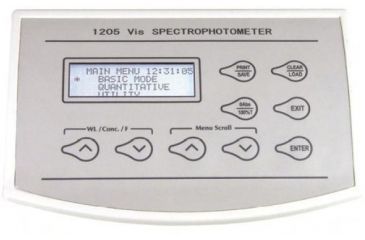

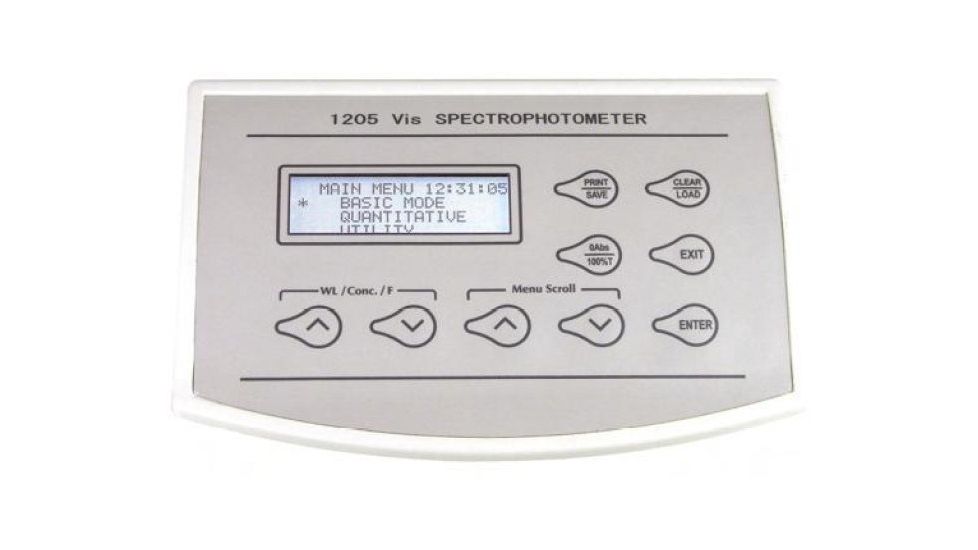

  • Four-line LCD display (4 lines x 20 characters)
  • Tungsten Halogen lamp
  • 9-button control
  • Optional built-in thermal printer
  • RS-232 printer port
  • USB communication port
  • Holds up to 50 mm pathlength cuvets (with longpath cell holder, sold separately)
  • Single or 4-cell holder
  • CE Approved

Package Contents:

  • UNICO S-1205E Visible Spectrophotometer 220V
  • Operation manual
  • Dust cover
  • 4 x 10mm square optical glass cuvettes
