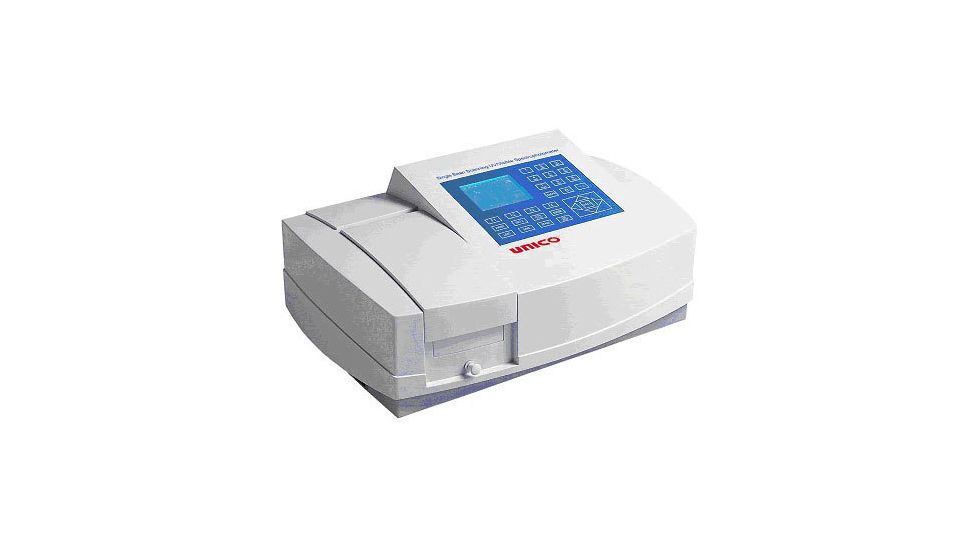

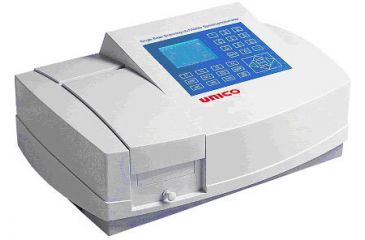

UNICO SpectroQuest Split Beam Scanning Spectrophotometer w/variable slits 1,2,4nm,220V SQ2802SE
$5,499.00 $7,232.00 Save 24%
Code: UI-SE-SQ2802SE
MPN: SQ2802SE

UNICO SpectroQuest Spectrophotometer, PC, variable slits, Preset 230V Product Info

UNICO Spectrophotometers SpectroQuest UV-Vis SQ2802SE 230V is an advanced, PC-controlled single beam Spectrophotometer. The UNICO SQ-2802SE has all the features that the SpectroQuest line offers, imagein a PC-controlled spectrophotometer. This instrument provides excellent performance for measurements. The large sample compartment accommodates a wide range of cell holders and accessories including peristaltic sipper and peltier system. PC models come standard with Windows based application software (PC not included). The UNICO SpectroQuest SQ2802 is a reliable and dependable addition to our family of UNICO Spectrophotometers.

In addition to the UNICO Model SQ2802 Spectro Quest Scanning Double Beam Spectrophotometer, we carry a full complement of Spectrophotometers as well as other medical lab equipment from UNICO. Our science and laboratory equipment catalog carries everything for your laboratory needs, from microscopes and centrifuges to cuvettes and test tubes. We bring you the full manufacturer's warranty in addition to our own 100% Satisfaction Guarantee. We offer Free Shipping on all orders in our store over $29.95.

Specifications for UNICO SQ2802 Spectro-Quest Single Beam Scanning Spectrophotometer:

Wavelength Range: 190 - 1100 nm
Spectral Bandwidth: 1.8 nm / 0.5, 1, 2, 5 nm
Monochromator: Single beam Littrow type, grating 1200 lines/mm
Wavelength Accuracy: ±0.3 nm
Wavelength Repeatability: ±0.2 nm
Wavelength Calibration: automatic at start
Light Source: Tungsten Halogen/Deuterium Lamp
Detector: Solid Silicon Photodiode
Photometric Readout: 1/4 VGA 320X240 pixels backlit LCD
Photometric Range: 0 - 200%T -0.3 - 3.0A 0 - 9999C
Photometric Accuracy: ±0.3%T
Zero Drift: < 0.002A per hour after warm-up
Baseline Flatness: ±0.004A
Stability: 0.002A/h at 500 nm
Stray Light: < 0.15%T
Scanning Speed: Hi, Med., Low. Max. 1000 nm/min
Standard Sample Holder: 4-position Cell Holder
Analogue/Digital Output: Digital, RS232 Serial, Centronics Parallel
Dimensions: 620(L) x 400(W) x 280(H) mm
Weight: 22 kg / 48 lbs
Shipping Dimensions: 720(L) x 525(W) x 370(H) mm
Shipping Weight: 26 kg / 57 lbs
Power Requirements: 230V/50Hz, switchable
Humidity Range: less than 85%
Safety Certificate: CE
 Model SQ2802A:
Wavelength Range:   190 - 1100 nm
Spectral Bandwidth:   1.8 nm / 0.5, 1, 2, 5 nm
Monochromator:   Single beam Littrow type, grating 1200 lines/mm
Wavelength Accuracy:   ±0.3 nm
Wavelength Repeatability:   ±0.2 nm
Wavelength Calibration:   automatic at start
Light Source:   Tungsten Halogen/Deuterium Lamp
Detector:   Solid Silicon Photodiode
Photometric Readout:   1/4 VGA 320X240 pixels backlit LCD
Photometric Range:   0 - 200%T -0.3 - 3.0A 0 - 9999C
Photometric Accuracy:   ±0.3%T
Zero Drift:   < 0.002A per hour after warm-up
Baseline Flatness:   ±0.004A
Stability:   0.002A/h at 500 nm
Stray Light:   < 0.15%T
Scanning Speed:   Hi, Med., Low. Max. 1000 nm/min
Standard Sample Holder:   8-position Cell Holder
Analogue/Digital Output:   Digital, RS232 Serial, Centronics Parallel
Dimensions:   620(L) x 400(W) x 280(H) mm
Weight:   22 kg / 48 lbs
Shipping Dimensions:   720(L) x 525(W) x 370(H) mm
Shipping Weight:   26 kg / 57 lbs
Power Requirements:   115V/60Hz or 230V/50Hz, switchable
Humidity Range:   less than 85%
Safety Certificate:   CE

Features of UNICO SQ2802 Spectro-Quest UV / Visible Scanning Spectrophotometer:

  • Single beam design
  • Stand-alone unit
  • Highly versatile to meet laboratory and clinical needs

Package Contents:

  • UNICO Spectro-Quest Model SQ2802UV-Vis Double Beam Scanning Spectrophotometer
