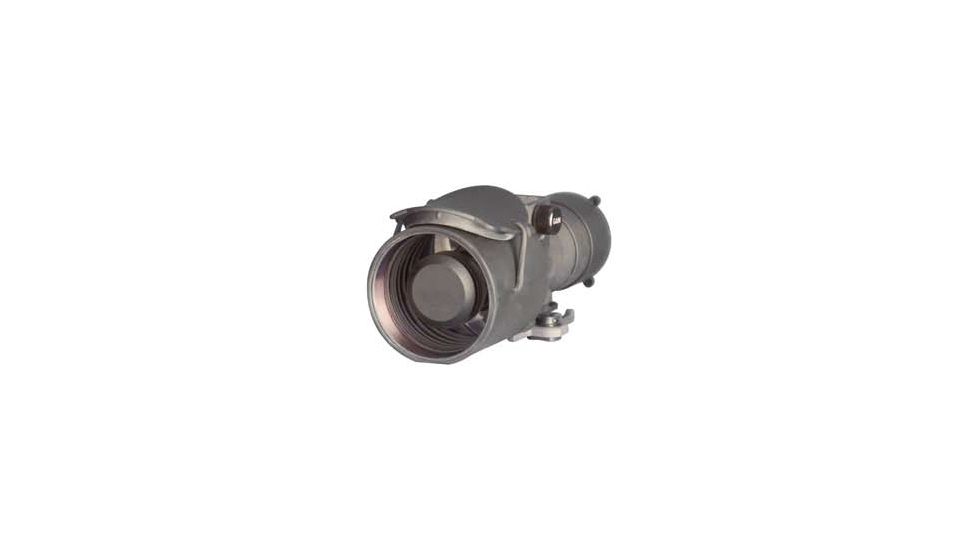

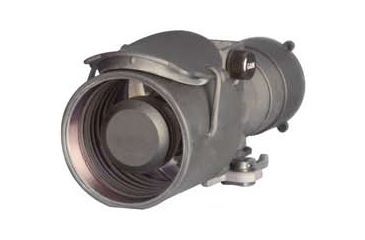

FLIR Sytems AN/PVS-22 UNS Universal Night Sight 000411
Code: FR-NV-000411
MPN: 000411

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

Flir Systems AN/PVS-22 T105 Universal Night Sight 000411 Product Info

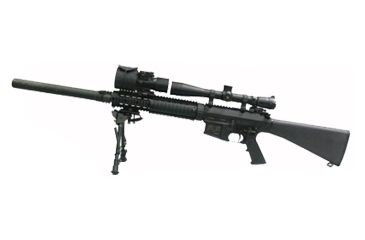

The Flir Systems AN/PVS-22 T105 Universal Night Sight 000411 is a compact, high-resolution, clip-on Night Vision Sight for useimage with existing day optics. The AN/PVS-22 T105 Universal Night Sight by US NightVision mounts on any MIL-STD-1913 rail interface forward of an existing scope. The Universal Night Sight utilizes a full MIL-SPEC Gen 3 (Autogated Pinnacle) image intensifier tube, a fast f/1.15 catadioptric lens for a brighter and sharper image in starlight, and patented permanent boresight alignment technology. The USNV AN PVS 22 Universal Night Sight is installed, operated, and removed without tools and without affecting boresight (permanent boresight alignment). The AV/PVS22 UNS Night Sight can be mounted on a Spotting Scope for long range reconnaissance, used as a hand-held Night Observation Device (NOD), or used in other night-time operations requiring Night Vision capabilities. The USNV Universal Night Sight is optimized for medium-range sniper weapons, assault rifles and machine guns, including the MK11, M16, SCAr-H, M240 & 300 Win Mag., and is effective on all weapons from carbines to .50 caliber semi-automatic sniper rifles. These features of the US Night Vision AN/PVS-22 (UNS) Universal Night Sight 000411 make it the ultimate Night Vision device that will add night vision capabilities to daytime target acquisition platforms.

Specifications for Flir Systems AN/PVS-22 Universal Night Sight 000411:

System Sensor: Pinnacle
Intensifier Type: Generation 3 Auto-Gated
Intensifier Gain: 75,000 max
Accuracy: Within 1 MOA
Retention: Permanent
Repeatability: Within 0.5 MOA
System Magnification: Unity
Optimum Range: 1X - 12X
Field of View: 13 Degrees
Focus Range: 10 meters - infinity
Focal Length: 68 mm
f/number: f/1.12
Weight: 31 oz.
Length: 7.08"
Controls: ON/OFF/GAIN
Focus: Adjustable
Battery: (2) AA Batteries
Battery Life: 40 hours
Mount: MIL-STD 1913
Submersion: 66 ft / 2 hrs

Features of US NightVision AN/PVS-22 Universal Night Sight UNS:

  • Much smaller and lighter than units of similar performance
  • Uses Mil Spec Pinnacle image intensifiers
  • Installs and removes without requiring boresight adjustment and without affecting boresight
  • 1X design maintains boresight despite normal misalignments due to mount position errors
  • Installs directly on front universal rail: Needs no additional mount on top of day scope
  • Uses small, high-resolution optics to take full advantage of the image tube resolution
  • Does not alter sighting centerline (parallax is unchanged from dayscope)
  • Small enough to fit in front of any day optic
  • Equivalent in performance to much larger units
  • Factory aligned to permanently maintain boresight without adjustment
  • Maintains boresight through focus
  • No beam-splitter or folded optics to go out of alignment
  • Could be used standalone at unity magnification with up to 8" eye relief at full field
  • 40 mm exit pupil fills riflescope aperture, maintaining full pupil diameter at the eye
  • Fast f/1.15 catadioptric objective

Package Contents:

  • US Night Vision AN/PVS-22 (UNS) Universal Night Sight 000411
  • Carry Case
  • Data Sheet
  • Instruction Card
  • 2 AA Batteries
