Product No Longer Available

Unfortunately Vixen ED103S 103mm Telescopes and GPD2 Mount w/ Optional D2M Motor Set is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

This model of Vixen Telescopes has been discontinued and is no longer available.

Please take a look at our wide selection of other Telescopes by Vixen on our site.

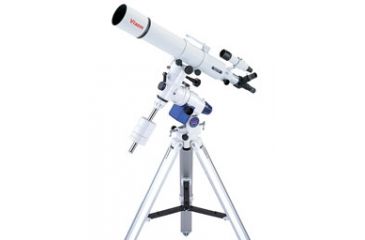

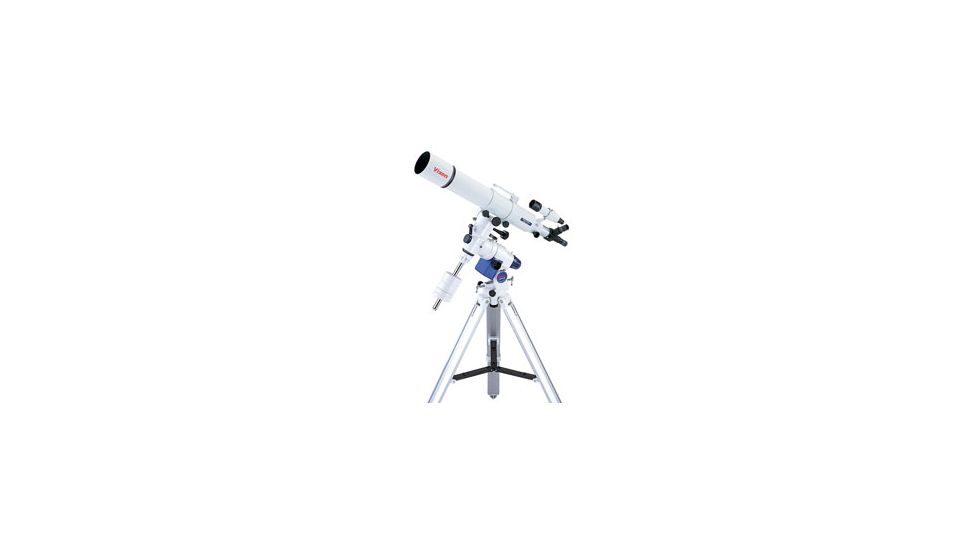

Vixen ED103S 103mm Telescopes and GPD2 Mount w/ Optional D2M Motor Set Product Info

The Vixen ED103S 103mm Telescopes with GPD2 Mount/ Motor Set 99792--99792M focus the full visible spectrum of light to a critical point much more accurately than past ED products. The Vixen ED103S telescope lenses are almost freeimage of chromatic aberration in all colors and are critically sharp edge to edge. The astro-photographer will be especially pleased with the high contrast images through this refractor telescope. With newly designed high definition ED lenses, this 103mm telescope gives crisp pinpoint star images while still using the newest environmentally friendly glass. The GPD2 equatorial mount comes standard with tripod and counterweight. It is easy to use and functions well for both the visual observer and astrophotography. The declination and right-ascension functions with 144-tooth aluminum worm gears allow accurate tracking. Telescope tube motion is controlled by included control knobs for accurate slewing. The polar altitude adjustment varies from 0° to 62° in altitude. For a full line of Vixen Telescopes and other products by Vixen on sale please visit the Vixen Telescopes page on our website. For more brand name Telescopes please visit our Telescopes store section.

Available Vixen Astronomy Telescopes:

  • Vixen ED103S Telescope and GPD2 Mount 99792
  • Vixen ED103S Telescope and GPD2 Mount w/D2M Motor Set 99792M

Specifications for Vixen ED103S 103mm Telescope with Mount 99792:

Optics: 4" (103mm) ED Apochromatic Multi Coated
Focal Length: 795mm, f/7.7
Resolving Power: 1.13 arc sec, 11.8
Light Gathering Power: 217x

Specifications for Vixen GPD2 Telescope Mount:

R.A. Slow Motion Axis: 144-tooth wheel gears whole circle movement
DEC Slow Motion Axis: 144-tooth wheel gears whole circle movement
R.A. Graduations: 10 min increments
DEC Graduation: 2 degree increments
Polar Axis Scope: 6x20mm, wide 8 degree field of view
Altitude Adjustment: 0 to 62 degrees (2 degree increments)
Aximuth Adjustment: Double screw fine adjustment
Motor Drive: Optional, with STARBOOK-S or D2M motor drive set
Maximum Loading Weight: 35 lbs.
Counterweight: 1.9 kg (4.2 lb) and 3.7 kg (8.15 lbs)
Weight: 8.5 kg/ 18.7 lbs (without counterweight)

Features of D2M Motor Set:

  • Used for accurate tracking
  • Dual-axis Motor Drive
  • Excellent upgrade for GP2 and GPD2 Mounts

Package Contents:

  • Vixen ED103S Telescope 103mm and GPD2 Mount w/ Optional Telescope Motor Set 99792M or 99792

Vixen ED103S 103mm Telescopes and GPD2 Mount w/ Optional D2M Motor Set Related Products

Vixen ED103S 103mm Telescopes and GPD2 Mount w/ Optional D2M Motor Set Unorderable Models

Vixen ED103S 103mm Telescope and GPD2 Mount 99792, MPN: 99792, UPC: 811971014114, Code: VI-TS-E103SGPD2TEL-99792
Vixen ED103S 103mm Telescope and GPD2 Mount w/D2M Motor Set 99792M, MPN: 99792M, UPC: 811971014121, Code: VI-TS-E103SGPD2TEL-99792M
