Product No Longer Available

Unfortunately Vixen ED103S Telescopes 103mm and GP2 Mount w/ Optional STAR Book-S is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

This model of Vixen Telescopes has been discontinued and is no longer available.

Please take a look at our wide selection of other Telescopes by Vixen on our site.

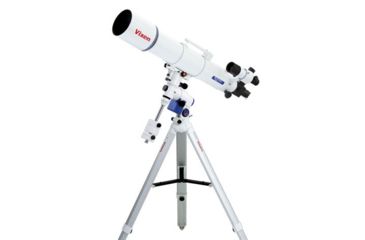

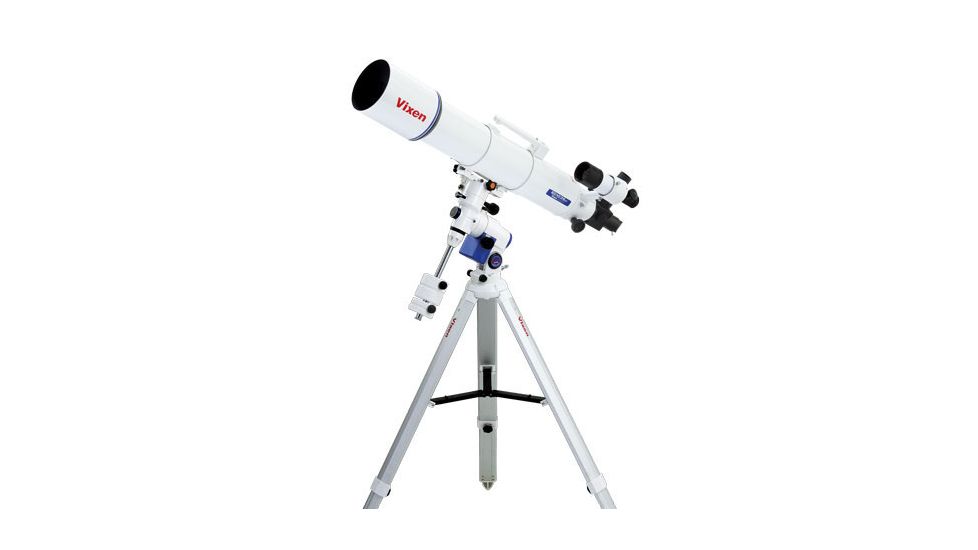

Vixen ED103S Telescopes 103mm and GP2 Mount w/ Optional STAR Book-S Product Info

The Vixen ED103S Refractor Telescopes 103mm and GP2 Mount 99543 - 99542 focuses the full visible spectrum of light to a critical point much more accurately than past ED products. The Vixen ED103S telescope lenses are almost freeimage of chromatic aberration in all colors and are critically sharp edge to edge. The astro-photographer will be especially pleased with the high contrast images through this refractor telescope. With newly designed high definition ED lenses, this refractor telescope gives crisp pinpoint star images while still using the newest environmentally friendly glass. The GP2 equatorial mount comes standard with tripod and counterweight. It is easy to use and functions well for both the visual observer and astrophotography. The declination and right-ascension functions with 144-tooth aluminum worm gears allow accurate tracking. Telescope tube motion is controlled by included control knobs for accurate slewing. The polar altitude adjustment varies from 0° to 62° in altitude. For a full line of Vixen Telescopes and other products by Vixen on sale please visit the Vixen Telescopes page on our website. For more brand name Telescopes please visit our Telescopes store section.

Available Vixen Astronomy Telescopes:

  • Vixen ED103S Telescope and GP2 Mount 99542
  • Vixen ED103S Telescope and GP2 Mount w/STAR Book-S 99543

Specifications for Vixen ED103S 103mm Telescope 99542:

Optics: 4" (103mm) ED Apochromatic Multi Coated
Focal Length: 795mm, f/7.7
Resolving Power: 1.13 arc sec, 11.8
Light Gathering Power: 217x

Specifications for Vixen GP2 Mount:

R.A. Slow Motion Axis: 144-tooth wheel gears whole circle movement
DEC Slow Motion Axis: 144-tooth wheel gears whole circle movement
R.A. Graduations: Optional (Included in Polar Axis scope set)
DEC Graduation: Optional (Included in Polar Axis scope set)
Polar Axis Scope: Optional
Altitude Adjustment: 0 to 62 degrees (2 degree increments)
Aximuth Adjustment: Double screw fine adjustment
Motor Drive: Optional, with STARBOOK-S or D2M motor drive set
Maximum Loading Weight: 22 lbs.
Counterweight: 3.7 kg (8.15 lb)
Weight: 4 kg/ 8.8 lbs (without counterweight)

Features of Starbook Hand Controller:

  • Monochromatic LCD-display
  • Background illumination
  • Navigation using the displayed star chart
  • 22,000 object database

Package Contents:

  • Vixen ED103S Telescope 103mm and GP2 Mount w/ Optional STAR Book-S 99542 or 99543
