Product No Longer Available

Unfortunately Vixen NA140SSf Telescopes and GPD2 Mount is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

This model of Vixen Telescopes has been discontinued and is no longer available.

Please take a look at our wide selection of other Telescopes by Vixen on our site.

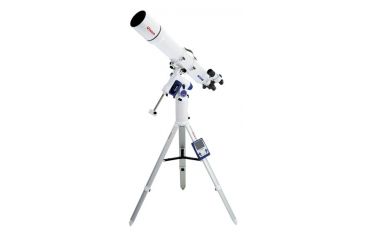

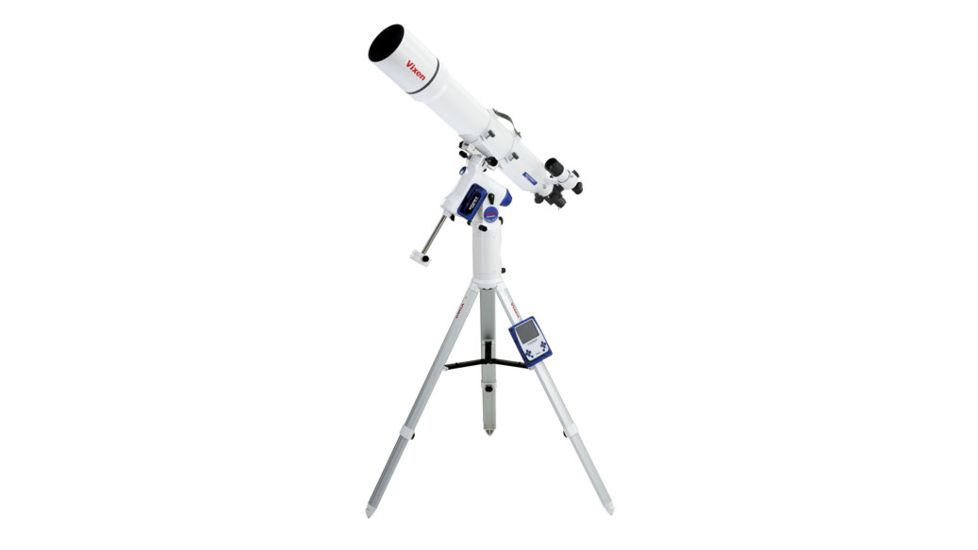

Vixen NA140SSf Telescopes and GPD2 Mount Product Info

Vixen NA140SSf Telescopes with GPD2 Mount 66262 feature a two element secondary lens at the rear of the optical tube to provide a flatter field of view (Petzval design). Spherical aberration and field curvature are less than 1/3 to 1/5 of standard doublet refractor telescopes. The GPD2 equatorial mount is the stronger and heftier of the Vixen GP mounts. With it's solid steel R. A. and Declination axes and brass worm gears this mount will hold up to years of heavy use. In order to assure accurate tracking for astrophotography the worm, gears are especially machined to a very high precision that minimizes periodic error. Add the DD2 telescope motor set for accurate tracking. The GPD2 telescope mount holds almost 50% more weight than the GP2 mount and comes standard with tripod and counterweight. It is easy to use and functions well for both the visual observer and astrophotography. Motion is controlled by included control knobs for accurate slewing. The polar altitude adjustment varies from 0° to 62° in altitude. Optional single axis or dual axis motors and controllers are available as are a polar alignment telescope with setting circles. Package includes NA14SSf telescope with Dual Speed Focuser, GPD2 Mount, 7x50 Findersope, bracket, flip Mirror and NLV25mm eyepiece. For a full line of Vixen Telescopes and other products by Vixen on sale please visit the Vixen Telescopes page on our website. For more brand name Telescopes please visit our Telescopes store section.

Available Vixen Astronomy Telescopes:

  • Vixen NA140SSf Telescope and GPD2 Mount 66262

Specifications for Vixen NA140SSf Neo Achromatic Telescope and GPD2 Mount 66262:

Design: Refractor, Japan Modified Achromatic
Objective Diameter: 140mm/5.5 in
Length: 1024mm/40.3 in
Weight: 6.5kg/14.3 lbs
Focal Length: 800mm F/5.7

Specifications for Vixen GPD2 Telescope Mount:

R.A. Slow Motion Axis: 144-tooth wheel gears whole circle movement
DEC Slow Motion Axis: 144-tooth wheel gears whole circle movement
R.A. Graduations: 10 min increments
DEC Graduation: 2 degree increments
Polar Axis Scope: 6x20mm, wide 8 degree field of view
Altitude Adjustment: 0 to 62 degrees (2 degree increments)
Aximuth Adjustment: Double screw fine adjustment
Motor Drive: Optional, with STARBOOK-S or D2M motor drive set
Maximum Loading Weight: 35 lbs.
Counterweight: 1.9 kg (4.2 lb) and 3.7 kg (8.15 lbs)
Weight: 8.5 kg/ 18.7 lbs (without counterweight)

Vixen NA140SSf Telescopes and GPD2 Mount Related Products

Vixen NA140SSf Telescopes and GPD2 Mount Unorderable Models

Vixen NA140SSf Telescope and GPD2 Mount 66262, MPN: 66262, UPC: 811971014251, Code: VI-TS-140SSFGPD2-66262
Vixen NA140SSf Telescope and GPD2 Mount 66262M w/ DD2 Motor set, MPN: 66262M, UPC: 811971014268, Code: VI-TS-140SSFGPD2-66262M
