Vixen Polarie Star Tracker Astrophotography Mount w/ Free Shipping — 2 options
On Sale
This item is currently on sale and has a new, lower price! See more on-sale items
Vixen Polarie Star Tracker Astrophotography Mount Product Info

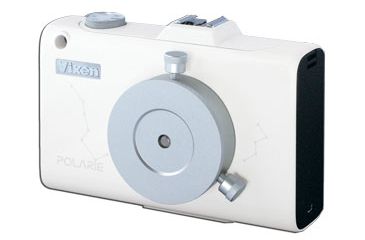

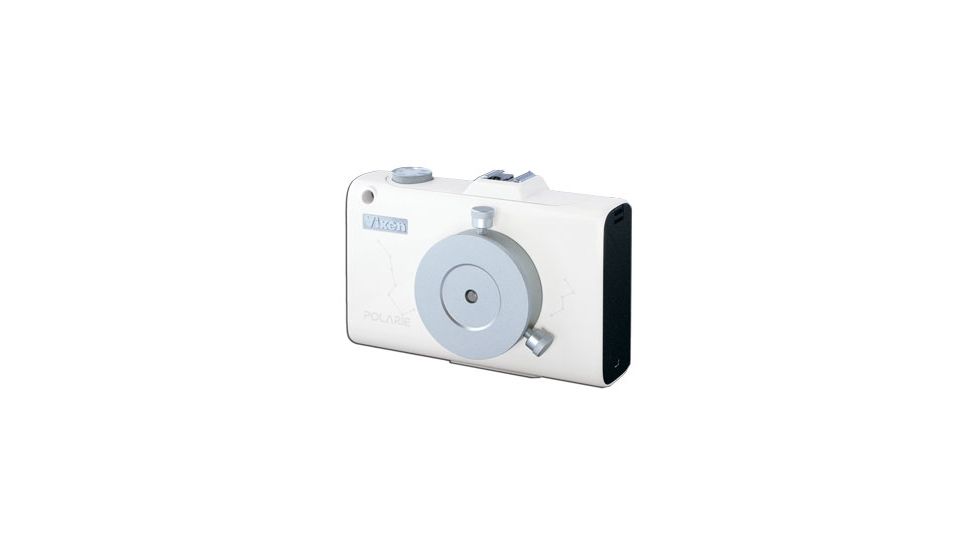

The Vixen Astrophotography Polarie Mount for Star Tracker Camera is a compact mounting platform that allows you to easily capture night-scapes and star images. This Camera Mount by Vixen attaches to a standard
camera tripod and can accept any digital camera 3.5lbs. The Vixen Polarie Star Tracker Camera Mount can be used as a polar scape for perfect alignment. Once set, the Vixen Polarie Astrophotography Camera Mounting System tracks the motion of the stars to eliminate "star trailing" on your images, resulting in sharp images of our universe. This Vixen Telescope Mount has no visible screws and although, not waterproof, it is designed to function admirably in most weather conditions. The Vixen Polarie Star Tracker Camera Mounting System has a compass system to orient your shot North, while the North Star alignment window points you toward Polaris.

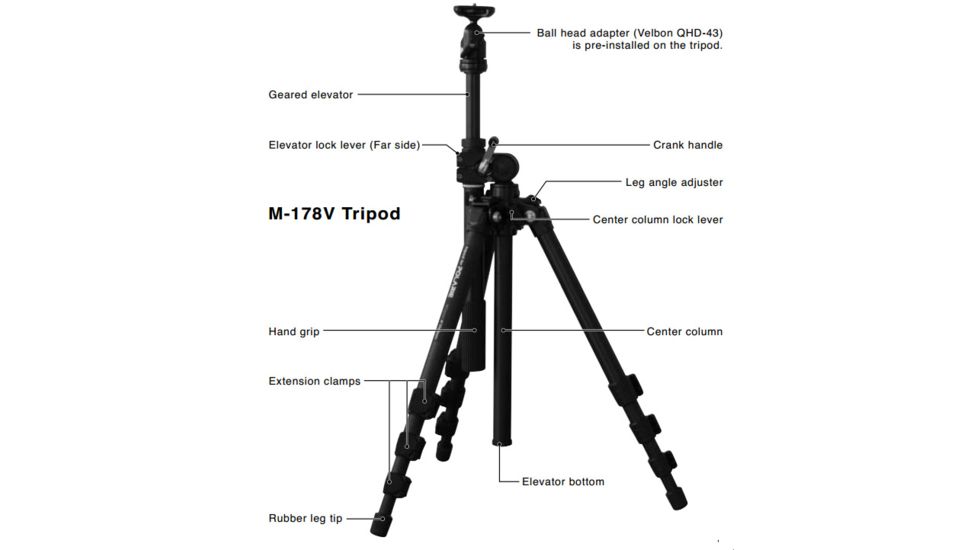

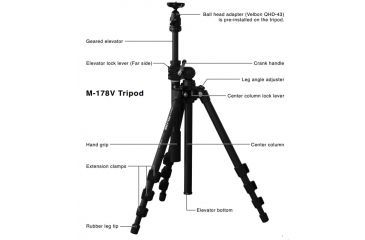

- Minimum Tripod Length: 555mm (22")
- Working Height Adjustable from 540mm to 1,780mm (21.2 to 70 inches)
- Elevator pole extension, geared part: 200mm (7.9"), Friction up and down part (Center column):290mm (11.4")
- Camera thread size UNC1/4 inch
- Maximum loading weight About 3.0kg (6.6 lbs)
- Weight Tripod: 1.98kg (without pan head) (4.3 lbs)
Specifications for Vixen Star Tracker Polarie Mount:
| Tracking Mode: | Celestial tracking rate, 1/2 of celestial tracking rate. Solar tracking rate (Mean solar time), Lunar tracking rate (Mean lunar time) |
| Wheel Gear: | 57.6mm diameter aluminum alloy axis with full-circle 144-tooth |
| Worm Gear: | 9mm diameter high tension brass |
| Bearings: | 2 pieces |
| Drive Pulse Motor: | Stepper Motor |
| Maximum Loading Weight: | 3.4lbs |
| Polar Sight Hole: | About 8.9° field of view |
| Standard Accessory: | Compass |
| Working Voltage: | 2 x AA-size batteries DC2.4, 3.0V |
| External Power Supply: | DC4.4, 5.25V |
| Electricity consumption: | DC-V-A (At a loading weight of 1.5kg °C 3.3 lbs) |
| Duration of operation: | About 4hours At 20 C (68 F) degrees temperature, a 1.5kg (3.3 lbs) loading weight with use of Alkaline batteries |
| Dimensions: | 95x137x58mm (3.7x5.9x2.3 inches) |
| Weight: | 1.4 lbs (w/o batteries) |
Features of Vixen Polarie Mount for Astrophotography Camera:
- Simple setup
- Attaches to camera tripod
- Can accept any digital camera up to 3.5lbs
- Compass helps you face North
- Eliminates "Star Trailing"
- North Star alignment window
- Accurate stepping motors
- Operates on 2 AA batteries
- Can function in most weather conditions
Package Contents:
- Vixen Polarie Astrophotography Mount for Star Tracker Camera
Vixen Polarie Star Tracker Astrophotography Mount Similar Products
Vixen Polarie Star Tracker Astrophotography Mount Related Products
Vixen Polarie Star Tracker Astrophotography Mount Comments
Vixen Polarie Star Tracker Astrophotography Mounting System 35505
Vixen Polarie Star Tracker Astrophotography Mount w/ Tripod 35505P1
Vixen Polarie Star Tracker Astrophotography Mount and Tripod 35505P1
|
