Vixen Sphinx SXD2 Equatorial Mount w/out Tripod 25061
$2,259.00 $3,500.00 Save 35%
Model: Vixen Sphinx SXD2 Equatorial Mount w/out Tripod 25061
Code: VI-TA-SHSXD2M-25061
MPN: 25061
UPC: 811971016200
Vixen Sphinx SXD2 Mount w/ HALSXG130 Tripod 25061HAL130
$2,439.00 $3,780.00 Save 35%
Model: Vixen Sphinx SXD2 Mount w/ HALSXG130 Tripod 25061HAL130
Code: VI-TA-SHSXD2M-25061HAL130
MPN: 25061HAL130
UPC: 811971016217

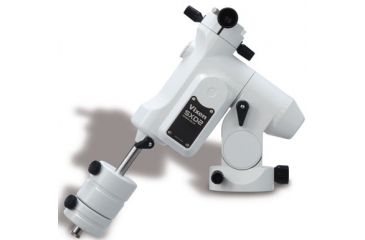

Vixen Sphinx SXD2 Equatorial Mount w/ Star Book Ten Controller Product Info

The innovative Vixen SXD2 Mount with Star Book Ten Hand Controller is the latest evolution of an already formidable mount, providing increased weight capacity and a more rigid support. Upgraded specs make theimage Vixen SXD2 Equatorial Telescope Mount a fine choice for astrophotography, giving you a rigid platform that will eliminate the shake that blurs photographs on lesser mounts. The Vixen Sphinx SXD2 Equatorial Mount now has quieter stepping motors to ensure you of smooth, quiet slewing with quick response to commands.

The Vixen Sphinx SXD2 Telescope Mount includes the Vixen Star Book Ten hand controller, available previously on the SXP Mount, with an intuitive Star Chart Go-To System on a high definition LCD Screen. Features include night vision screen, hibernate mode, VPEC and PPEC, and optional built in autoguider. Both the RA and DEC Axes are made of sturdy steel with brass wheel gears. This enables the mount to carry loads of up to 50 lbs (including counterweights) for astrophotography. The inside of the Vixen SXD2 EQ Mount is very different from the previous SX Mounts. Bearings have been added to the shafts of the RA and DEC axes and the screw gear shafts. The worm screw gears are inspected for strict concentricity and are lapped in the whole-circle for smooth movement.

Vixen 25061: Sphinx SXD2 Equatorial Mount w/out Tripod
Vixen 25061HAL130: Sphinx SXD2 Mount w/ HALSXG130 Tripod

Specifications for Vixen Sphinx SXD2 Mount:

RA Slow Motion: Worm and Wheel Gears 180 Tooth whole circle movement
DEC Slow Motion: Worm and Wheel Gears 180 Tooth whole circle movement
RA Display: On screen STAR BOOK TEN , 0.1 minute increments
DEC Display: On screen STAR BOOK TEN , 0.1 arc minute increments
Polar Axis Scope: SX Polar Axis Scope (pre-installed)
Altitude Adjustment: 0 to 70°, separated by 3 zones for fine adjustment w/ tangent screws (+- 15°)
Go-To Controller: STAR BOOK TEN, 1200x max slewing speed
Power Source: DC12V, 0.4 to 1.7A
Power Connecting Terminal: DC12V EIAJ RC5320A Class 4
Dimensions: 36cmx 12 cm
Weight: 19.3 lbs (excluding counterweights)
Counterweights: 4.2lb and 8.15 lb

Features of Vixen Sphinx SXD2 Equatorial Mount (Item #25061):

  • Increased Loading Capacity
  • Smooth RA and DEC Movement
  • Built-in 6x20mm scope, FOV 8° , Bubble Level, Illuminated Reticle, Setting accuracy within 3 minutes
  • Time Graduation Circle: 10 minute increments between 16h and 8h (the following day)
  • Date Graduation Circle: 2 day increments
  • Meridian Offset Circle: Adjustable between E20° and W20° in 5° increments
  • Northern Hemisphere: Polaris pattern with reticle (Applicable to year 2025)
  • Southern Hemisphere: Octantal 4 stars pattern with reticle

Package Contents:

  • Vixen Sphinx SXD2 Equatorial Mount (Item #25061)
