Product No Longer Available

Unfortunately Vixen VC200L 200mm Telescope with Vixen Sphinx Mount 2732 is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

This model of Vixen Telescopes has been discontinued and is no longer available.

Please take a look at our wide selection of other Telescopes by Vixen on our site.

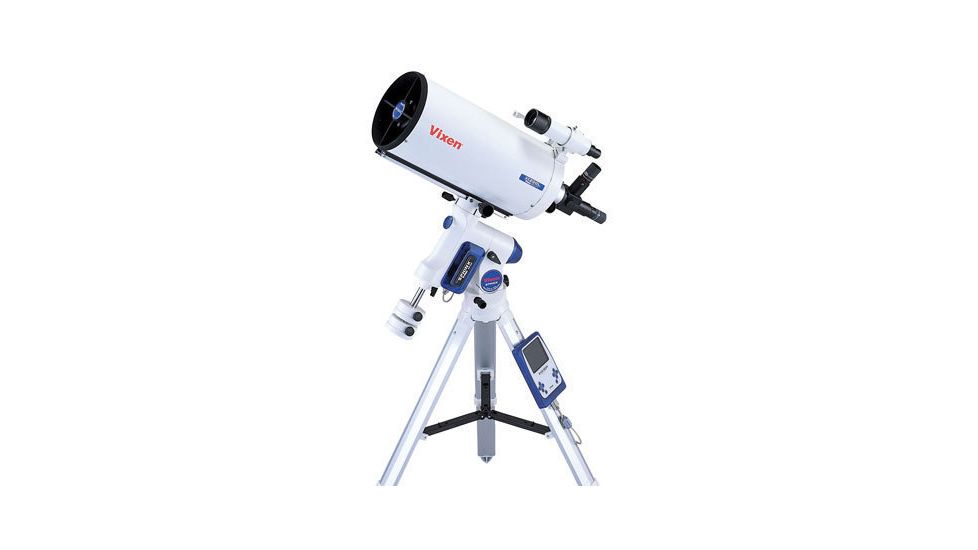

Vixen VC200L 200mm Telescope with Vixen Sphinx Mount 2732 Product Info

The Vixen VC200L 200mm Telescope with Vixen Sphinx Mount 2732 is designed for Astro Imaging. Even at the edgeimage of the 35mm film format (larger CCD chips) stars are sharp ( smaller than 15 micrometers) This is smaller than the resolution of fine quality CCD cameras, which means that the telescope does not limit the image quality. The basic configuration already contains a piggy-back camera holder. You can then take digital photos both through the vixen telescope and using a telephoto lens parallel to the main instrument or you can use the Vixen VC200L Telescope for guiding while the camera sits on top. It is now possible to explore the beauty of the night sky with greater ease and stability. The SPHINX equatorial mount and STARBOOK controller have been intelligently engineered for high-speed automatic location of celestial objects. The Vixen Sphinx mount by Vixen comes standard with built in motors and the world's first star chart go-to controller, STAR BOOK, with a large full color LCD display. The Sphinx's design is exceptional and the exterior styling is equally attractive. The Vixen Star Book S features a display on the large color screen and are navigated with simple buttons on the controller. The STARBOOK is easy to use and makes the SPHINX telescope available to a wide range of ages and experience levels. The STAR-BOOK incorporates a large astronomical database with 22,725 celestial objects. A LAN Port within the controller allows for computer control and network connectivity.

Specifications for Vixen VC200L 200mm Telescope 2732:

Finderscope:   7x50 quick release finder scope
Focuser:   2" focuser (1.25" or T2 adaptations are optional)
Mount Adaptation:   Dovetail plate for GP, Sphinx, many Chinese EQ mounts
Aperture / focal length / f:   Aperture 200mm / focal length 1800mm / focal ratio f/9
Limiting magnitude / resolution:   Visual limiting magnitude 13.3 mag / theoretical resolution 0.63"
Tube Weight:   6.3 kg. (13.2 lbs)
Tube Length / Diameter:   486mm / 232mm (9.1 x 24.4 in)

Features of Vixen Sphinx Mount:

  • 180-tooth worm gears for fine full circle motion.
  • Built in DC servo motors for improved polar axis rotation and reduced need for heavy counterweights.
  • Up to 5-deg/sec slewing.
  • Retractable counterweight shaft provides easy storage and transportation.
  • Standard Vixen dovetail bracket for attachment of telescopes.
  • Maximum 22 pound load capacity for a wide range of optical tubes.
  • Power: 12V, center pin positive, works with portable sources
  • Telescopes mount securely with locking bolt and safety screw system on standard dovetails

Package Contents:

  • Vixen VC200L 200mm Telescope with Vixen Sphinx Mount 2732
