Vixen VMC200L 200mm Telescope and Sphinx SXD Mount has been discontinued by Vixen and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

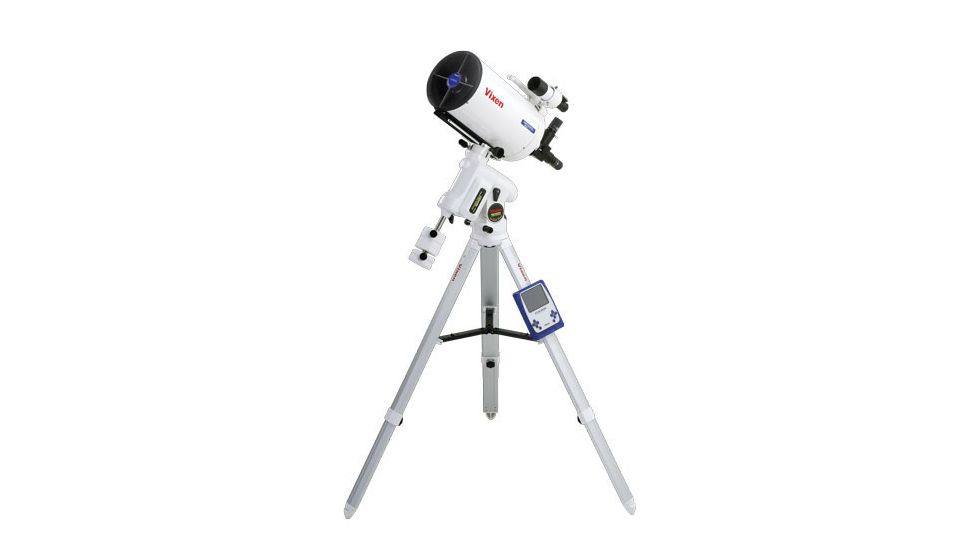

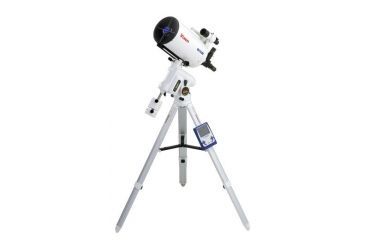

Vixen VMC200L 200mm Telescope and Sphinx SXD Mount Product Info

The Vixen VMC200L 200mm Telescope and Sphinx Mount 55037 is a unique 200mm (8") catadioptric telescope optical system. It incorporates a primary mirror and a meniscus corrector just before a secondary mirror. By imagedoing so, light is corrected twice on the optical path of the telescope tube. The end result is that spherical aberration and field curvature are corrected to a high degree of optical performance. The Vixen 55037 VMC200L w/ Mount 's primary mirror is f/2.5; the compound optical system is f/9.75. This makes the system much more compact and portable than its competition. With the optical correction placed before the secondary mirror, the VMC200L telescope avoids the necessity of having a corrector plate and all the dewing problems associated with a closed optical tube. An additional key feature is the rack and pinion focusing that is placed behind the primary telescope mirror. The use of this focusing system eliminates the image shift associated with most other SCT telescope systems. This is especially important when using high power magnification or astro-photography.When focusing, the image is stable and easy to adjust. Comes with 5 Year Warranty. For a full line of Vixen Telescopes and other products by Vixen on sale please visit the Vixen Telescopes page on our website. For more brand name Telescopes please visit our Telescopes store section.

Specifications for Vixen VMC200L 200mm Telescope with SXD Mount 55037:

Objective lens: 7.90 in; 200mm parabolic mirror, multi-coated
Focal length (Focal ratio): 800mm (F/4.0)
Resolving power, limiting magnitude: 0.58 arc sec., 13.3
Light gathering power: 816x
Tube size & weight: (OD) 9.1 in (232mm) x (L) 27.5 in (700mm), 11.7 lbs (5.3 kg)
Finder scope: 7x50mm nder, eld of view 7 degrees
Adapter thread / visual back: 60mm, 42mm for T-ring / 31.7mm push- t
Other accessory: Dovetail plate, Tube rings and Carry strap
Photography: Prime focus, Eyepiece projection and Afocal imaging

Features of Vixen VMC 200L Telescope and Sphinx SXD Mount 55037:

  • Features a catadioptric "Field Maksutov" type design
  • Light is corrected twice on the optical path.
  • Great for astro-photography

Features of Vixen SXD Mount:

  • Solid Steel RA and DEX Axis shafts
  • Needle Bearings
  • 180 Tooth Brass Worm Gear in both axes
  • Interactive Starbook with a 4.7" Color LCD Display
  • Mount Capacity 50 lbs.
  • Weight: 8.8 kg/ 19.4 lbs
  • Full Go-To capabilities to over 22,000 objects
  • Universal GP Plate receiver allows many telescopes to mount
  • Completely upgradeable firmware and comet database

Package Contents:

  • Vixen 55037 VMC200L 200mm Telescope with Sphinx SXD Mount

Vixen VMC200L 200mm Telescope and Sphinx SXD Mount Related Products

Vixen VMC200L 200mm Telescope and Sphinx SXD Mount Unorderable Models

Vixen VMC200L 200mm Telescope and Sphinx SXD Mount 55037, MPN: 55037, UPC: 811971014329, Code: VI-TS-55037
