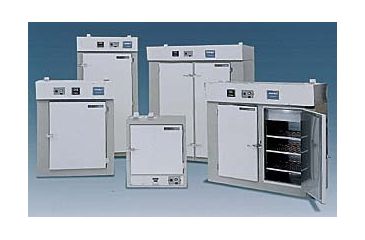

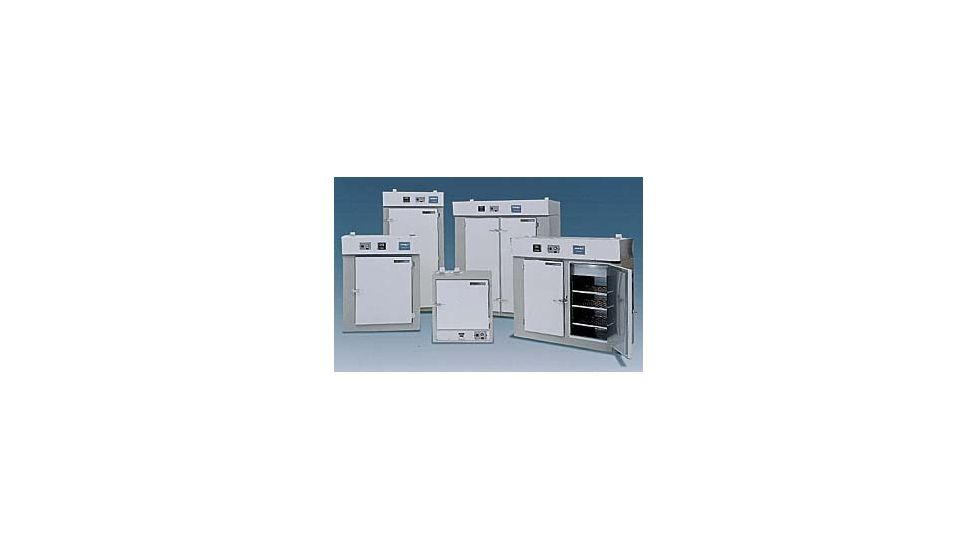

VWR Signature High-Performance Horizontal Air Flow Ovens Floor Model is a reliable and dependable addition to the VWR Baths, Ovens, Incubators, and Cryogenics Storage family of products. Combining top-notch and uncompromising quality with an affordable price, the VWR Signature High-Performance Horizontal Air Flow Ovens Floor Model 1685/ 52202-258 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
- True Horizontal Airflow Design
- Programmable 24-Step Ramp and Soak Controller
- Type-304 Stainless Steel Interior and Exterior
- Durable Powder-Coat Paint Exterior Finish
- Three-inch Intake and Exhaust Ports
- Equipped with Adjustable Stainless Steel Shelves
- VWR Two-Year Limited Parts and Labor Warranty
Horizontal airflow is created using a turbo blower that re-circulates air over the heating element, providing fast heat-up and recovery times, and ensuring a more rapid and efficient rate of drying. By forcing continuously warmed air into the chamber, the turbo blower assures uniform heating across all shelves and to every area of the chamber, eliminating concerns of obstructed air, regardless of how the shelves are loaded.
The Watlow® microprocessor-based controller provides 24-step ramp and soak capability to an accuracy of 0.1°C. Other ramping operations include ramp-rate or time-based programming, guaranteed soak deviation, program looping, and program status selection after power outages. Easy, non-ramping set point operation is also available. Temperature range: 40 to 260°C (104 to 500°F).
To maintain temperature uniformity and stop heat loss, a 8.9cm (31/2") thick, double-layer insulating barrier of high-density alumina silicate and high-temperature fiberglass wraps around all five sides of the chamber. A high temperature silicone rubber door seal eliminates air leakage. In addition, the door latch and hinges are user-adjustable to maintain a better seal as metal expands and contracts over the life of the oven.
The independent over-temperature safety is user-adjustable and protects the unit against damage to contents and burnout in the unlikely event that the main controller fails. The sealed membrane touch-pad control panel guards against any harm to the electronics. Stainless steel interior and exterior provide maximum corrosion resistance.
Unfiltered power exhaust accessory (52202-530) available for fast drying, to exhaust fumes from the lab, or to pull moisture out of high-moisture samples. Can be operated at the end of program for fast cool down, or during all or part of program. If attached, power exhaust can be activated by the controller. All units are 208–230V, 50/60Hz, except 16000-224, which is 208V, 50/60Hz only.
Ordering Information: Supplied with adjustable stainless steel shelves. Chart recorder outlet available on all but Model 1670 (52201-754).
