Yellow Springs Ph Kit 5564 Product Info

Yellow Springs Ph Kit 5564 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Yellow Springs Ph Kit 5564 / 13501-976 is part of a wide selection of Yellow Springs pH meters. Combining excellent quality with an affordable price, the Yellow Springs Ph Kit 5564 / 13501-976 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our pH meters please do not hesitate to contact our customer service for further guidance.

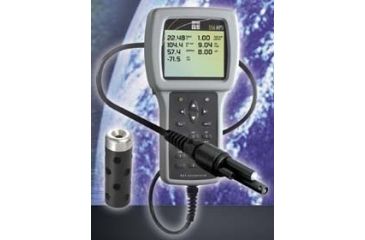

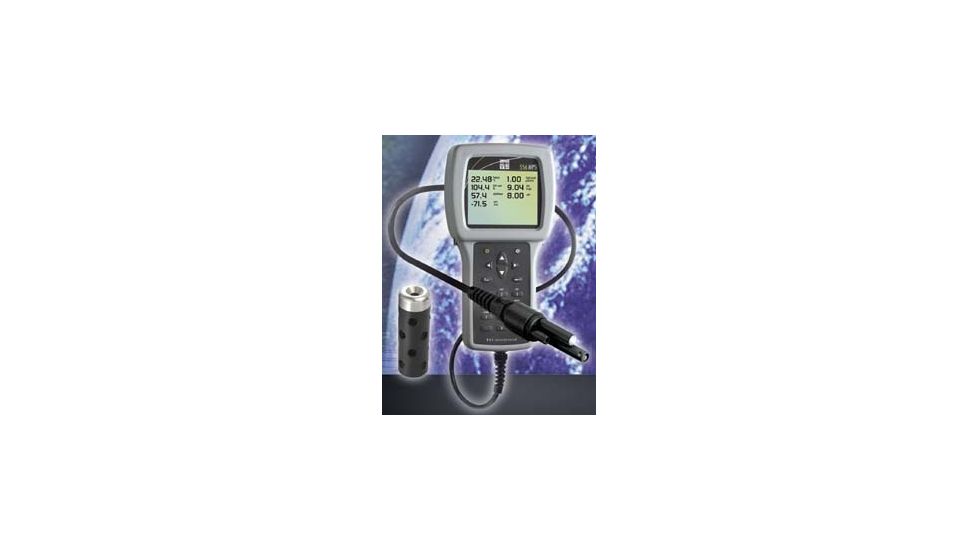

This handheld IP67 waterproof system simultaneously measures dissolved oxygen (DO), conductivity, temperature, salinity, total dissolved solids, and with optional probe, pH and ORP. IP67 rating means that the meter can be immersed in water to a depth of 1m for 1 hour without any water incursion. Stores up to 49,000 sets of time/date stamped data. Features easy-to-use, screw-on cap DO membranes, field-replaceable probes, and an RS-232 interface. An optional internal barometer can be user-calibrated and displayed along with other data, used in DO calibrations, and logged to memory for tracking changes in barometric pressure. System features on-screen parameter graphing and stores calibration data to assist in Good Laboratory Practices (GLP).

Membrane kits include six polyethylene membranes and one bottle of KCl solution. Membranes have decreased stirring requirements and fast response times. A flow cell is available for ground water applications.

Ordering Information: Three-year manufacturer's warranty on the instrument; one-year manufacturer's warranty on the probe module and cables. Instrument comes with a handstrap, instruction manual, four C-size alkaline batteries, PC interface cable, membrane kit (14236-070), and a large soft-sided carrying case. Large case can hold the instrument, a 20m (65'7") cable, and additional calibrating supplies. Form-fitted carrying case contains the instrument and features a shoulder strap. Small carrying cases 13501-990 and -962 fit the instrument and a 4m (13'1") cable.

Specifications for Yellow Springs Ph Kit 5564:

Description: pH Probe
YSI No.: 5564
Unit: Each
Unit Specifications
Dimensions: 11.9W x 22.9L cm (411/16 x 9")
Weight (with Batteries): 0.9 kg (2.1 lbs)
Dissolved Oxygen Sensor
Range: 500-800 mm Hg
0-200% air saturation: ±2% air saturation
200-500% air saturation: ±6% of reading
0-20 mg/L: ±2% or 0.2 mg/L (whichever is greater)
20-50 mg/L: ±6% of reading
Resolution: 0.1 mm Hg
Temperature Sensor
Accuracy: ±3 mm Hg
Conductivity Sensor
Accuracy (4 m Cable): ±0.5% of reading or ±0.001 mS/cm
Accuracy (10 or 20 m Cable): ±1.0% of reading or ±0.001 mS/cm
Salinity Sensor
pH (optional probe)
ORP (optional probe)
Total Dissolved Solids
Barometer (optional)
