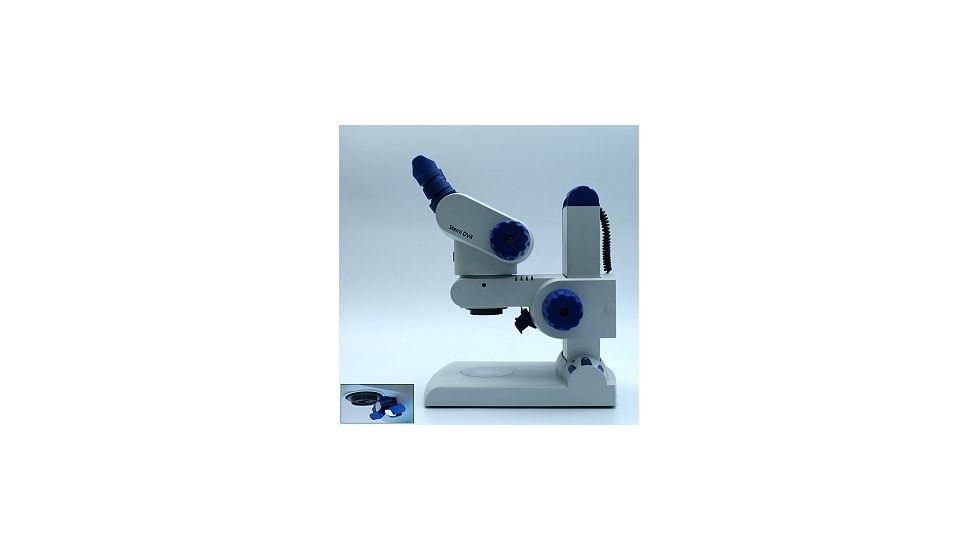

Zeiss Stemi DV4 Main Body Only High-Resolution Compact Greenough Stereomicroscope w/ Mechanical Corrected Zoom Product Info

The Carl Zeiss Microscopy Stemi DV4 High-Resolution Compact Stereomicroscope Body is the essential microscope being used for education and routine in science and industry. The innovative nature of this Carl Zeiss Microscopy Microscope can be seenimage not only in the color and unique, compact design, but also in its attractive features. The sturdy, very easy to operate Stemi DV4 stereomicroscope by Carl Zeiss features a patented zoom system (Double Lens Vario, zoom factor 4) that delivers images that are needle-sharp and, thanks to rigorous stray-light minimization, brilliant and rich in contrast across the entire magnification range, from 8x to 32x and across the whole field of view. The Carl Carl Zeiss Microscopy Stemi DV4 Stereo Microscope is the first instrument in its class with a mechanically corrected zoom system, which was a feature that was previously only incorporated into stereomicroscopes in higher price categories.

Carl Carl Zeiss Microscopy has a range of well chosen Zeiss Microscope Accessories to make the Stemi DV4 Stereomicroscope an even more attractive option for a whole range of applications all available for sale at our online store. For a selection of other microscopes on sale, check out the microscope and microscope accessories section for further enhancements and compatible solutions.

Of course, keep in mind as with all microscopes, good results depend on efficient illumination and the compatibility of microscope accessories in order to achieve great crisp detail and contrast. This is why the main body of the Carl Zeiss Microscopy Stemi DV4 Stereo Microscope may also also equipped with the Carl Zeiss Microscopy stand C LED which features an integrated modern LED illuminator for applications in reflected light and transmitted light. This powerful daylight illuminator has the ability to show specimens with high contrast in their natural colors. In transmitted light, six LEDs ensure bright, homogenous illumination at any magnnification, from overview to detail.

In addition to the Stand C LED by Carl Zeiss Microscopy, the Stand C LED with C16 Sample Carousel will also complement the Stemi DV4 stereoscope, which is able to have up to sixteen different specimens positioned under the microscope safely, quickly and extremely easily.

Specifications for Carl Zeiss Microscopy Stemi DV4 Microscope Body in stand C LED:

Zoom: 4x zoom (0.8x ... 3.2x)
Working Distance: 92 mm
Integrated Eyepieces: 10x/20 Br. foc
Mounting Diameter: 76mm
Weight: 5kg.

Basic Specifications without Front Lens System Options for Zeiss Microscopy Stemi DV4 Compact Stereo Microscope with Stand C LED

Front lens system
Eyepiece 10x/20 Br. foc.
Factor
Free Working Distance (mm)
Magnification
Object field (mm)
without front lens system
92
8,0x ... 32,0x
25,0 ... 6,3
Front lens system
Eyepiece 15x/13 Br. foc.
Factor
Free Working Distance (mm)
Magnification
Object field (mm)
without front lens system
92
12,0x ... 48,0x
16,6 ... 4,2

Specifications with Front Lens System Options for Carl Zeiss Microscopy Stemi DV4 Compact Stereomicroscope w/ Stand C LED

Front lens system
Eyepiece 10x/20 Br. foc.
Factor
Free Working Distance (mm)
Magnification
Object field (mm)
0,3x
287
2,4x ... 9,6x
83,3 ... 20,8
0,4x
211
3,2x ... 12,8x
62,5 ... 15,6
0,3x ... 0,5x
233 ... 90
2,4x ... 16,0x
39,7 ... 12,5
0,63x
130
5,0x ... 20,2x
40,0 ... 9,9
without
92
8,0x ... 32,0x
25,0 ... 6,3
1,25x
60
10,0x ... 40,0x
20,0 ... 5,0
1,6x
48
12,8x ... 51,2x
15,6 ... 3,9
2x
31
16,0x ... 64,0x
12,5 ... 3,1
Front lens system
Eyepiece 15x/13 Br. foc.
Factor
Free Working Distance (mm)
Magnification
Object field (mm)
0,3x
287
3,6x ... 14,4x
55,4 ... 13,9
0,4x
211
7,6x ... 30,2x
41,6 ... 10,4
0,3x ... 0,5x
233 ... 90
3,6x ... 24,0x
55,4 ... 8,3
0,63x
130
7,5x ... 30,3x
26,4 ... 6,6
without
92
12,0x ... 48,0x
16,6 ... 4,2
1,25x
60
15,0x ... 60,0x
13,3 ... 3,3
1,6x
48
19,2x ... 76,8x
10,4 ... 2,6
2x
31
24,0x ... 96,0x
8,3 ... 2,1
