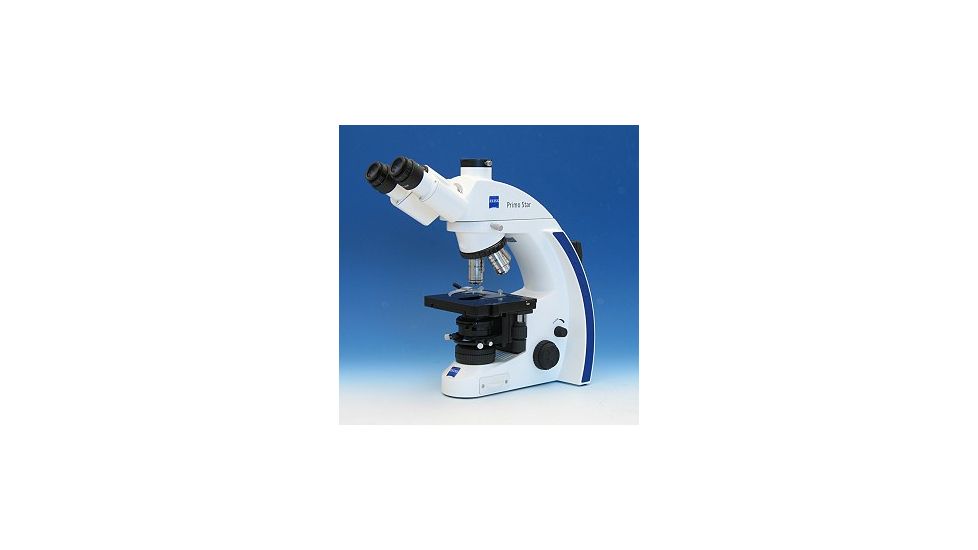

Zeiss Primo Star HAL/LED Microscope Fixed Kohler,drive R, field of view 18, 100x/0.8 dry 4155000053000000
$1,309.00 $1,595.00 Save 18%
Code: 2C-MI-4155000053000000
MPN: 4155000053000000
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $1,31349 You Save 18%

Zeiss Primo Star HAL/LED Fixed Kohler Microscope w/ Field of View 18 & 100x/0.8 Dry Product Info

The Zeiss Primo Star HAL/LED Fixed Kohler Microscope w/ Field of View 18 & 100x/0.8 Dry is robust, easy to operate, and equipped with great optics. This microscope from Zeiss is durable and meant for long-term use, adapted specificallyimage for classroom use. The Zeiss Primo Star HAL/LED Fixed Kohler Microscope w/ 100x/0.8 Dry features a 100x/0.8 complete configuration with fixed-Kohler stand including a halogen illumination with 6V 30W halogen lamp and LED warm-light, 3200K - 4-position nosepiece, tilted backwards - mechanical stage 75x30, drive right and a specimen holder with a spring clip left. The Zeiss Primo Star HAL/LED Fixed Kohler Microscope w/ FOV 18 & 100x/0.8 Dry is ideal for use in education, in the laboratory, for doctors' practice and in the field.

Zeiss 4155000053000000: Primo Star HAL/LED Microscope Fixed Kohler,drive R, field of view 18, 100x/0.8 dry

Specifications for Zeiss Primo Star HAL/LED Fixed Kohler Microscope w/ FOV 18 & 100x/0.8 Dry:

Optical system: Color-corrected infinity optics
Parfocal distance: 45 mm
Tube length: 180 mm
Two stand variants: Full-Koehler and Fixed-Koehler
Magnifications: 40x to 1000x for visual observation, 4x to 100x for camera observation
Eyepiece tubes: Swiveling Siedentopf tube with upper and lower position, upper position offers approx. 40 mm extra viewing height
Adjustable interpupillary distance: 48 mm-75 mm, Tube can be rotated 360°, 30° viewing angle (ergonomic angle), Binocular tube and binocular phototube, 50%
Eyepieces: WF 10x/18 Br. foc., WF 10x/20 Br. foc., Eyepiece pointer can be retrofitted
Nosepiece: 4x, inclined backwards, 4x, reversed
Illumination: Modular illumination concept with drawer, HAL (30 W/6 V), LED (3 W/6 V, roughly corresponding to brightness of 20 W HAL)
Stage: Stages available with either right-hand or left-hand operation
Area of stage: (w x d) 140 mm x 135 mm
Travel range: (w x d) 75 mm x 30 mm
Z-drives Fine drive: 0.3 mm/rot.
Coarse drive: 4 mm/rot.
Total travel range: 15 mm

Features of Zeiss Primo Star HAL/LED Fixed Kohler w/ FOV 18 and 100x/0.8 Dry:

  • Binocular tube, focusing, drive knobs and lower part of stand made from skin-friendly polymers
  • All optical components in Primo Star are anti-fungus treated
  • Carrying handle integrated in stand
  • Intensity indicator panels in a 5-step LED-display on both sides of stand

Package Contents:

  • Zeiss Primo Star HAL/LED Fixed Kohler Microscope with FOV 18 & 100x/0.8 Dry
