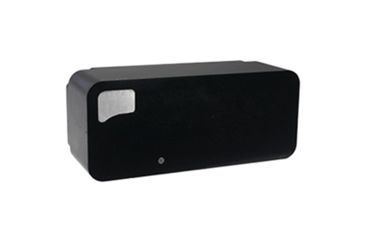

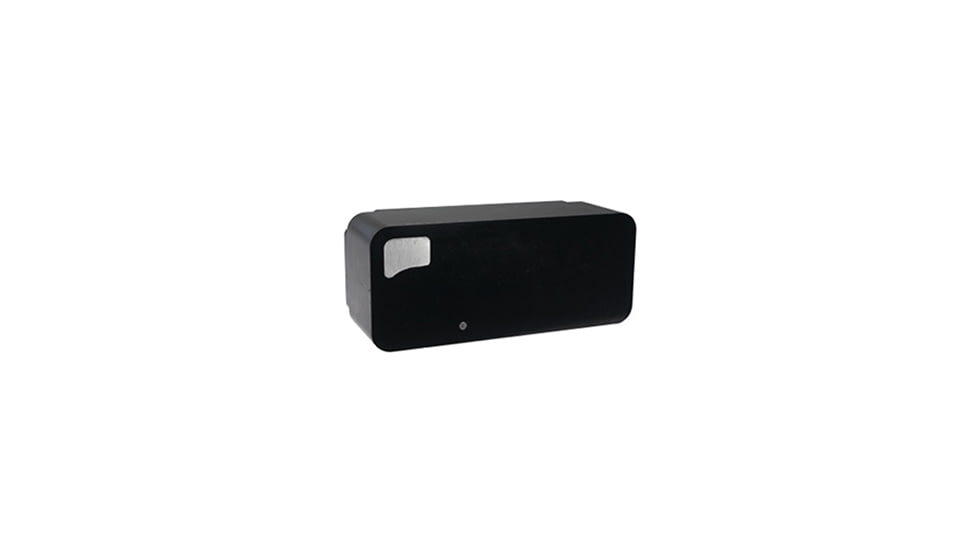

Garmin Airmar R111LH 2kW In-Hull or Pocket Mounted Transducer, CHIRP Low 38-75kHz & CHIRP High 130-210kHz 010-11643-20 Color: Black, Frequency Band: 130 kHz, w/ Free S&H

Airmar R11LH 2kW In-Hull or Pocket Mounted Transducer CHIRP Low (38-75kHz) &CHIRP High (130-210kHz)

This in-hull or pocket mounted transducer uses narrow beams at low/high frequencies to display depth and temperature data to your Garmin Marine Network via your sonar such as the GSD 26.

Designed to allow both traditional and Spread Spectrum scanning this 2kW barewire plastic transducer has a maximum depth of 8000 ft; an operating frequency of 38 to 75 kHz and 130 to 210 kHz; and a beamwidth of 10x19 degrees. The in-hull mounts on a 0-25 deadrise angle; the pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

In-hull not recommended for cored-hull vessels

Specifications for Garmin Airmar R111LH 2kW In-Hull or Pocket Mounted Transducer, CHIRP Low 38-75kHz & CHIRP High 130-210kHz:

Features of Garmin Airmar R111LH 2kW In-Hull or Pocket Mounted Transducer, CHIRP Low 38-75kHz & CHIRP High 130-210kHz

• Cable Length (Feet): 49 ft.
• Fairing Block Included: No
• Frequency: Low (38-75 kHz) & CHIRP High (130-210 kHz)
• Chirp: Low/High
• Mounting Style: Pocket
• Pins: Bare Wires
• Speed Included: No
• Temperature: Yes
• Imagining: Standard
• Supported Deadrise/Transom Angles: 0-25
• Power: 2 KW

Package Contents:

• Garmin Airmar R111LH 2kW In-Hull or Pocket Mounted Transducer, CHIRP Low 38-75kHz & CHIRP High 130-210kHz
