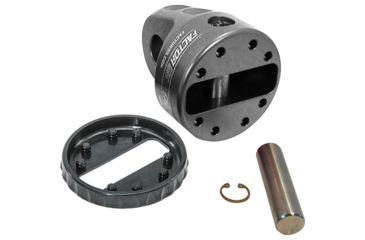

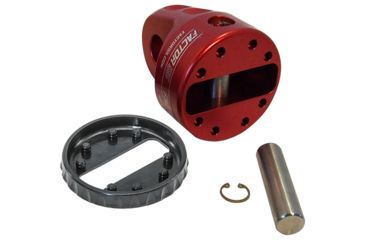

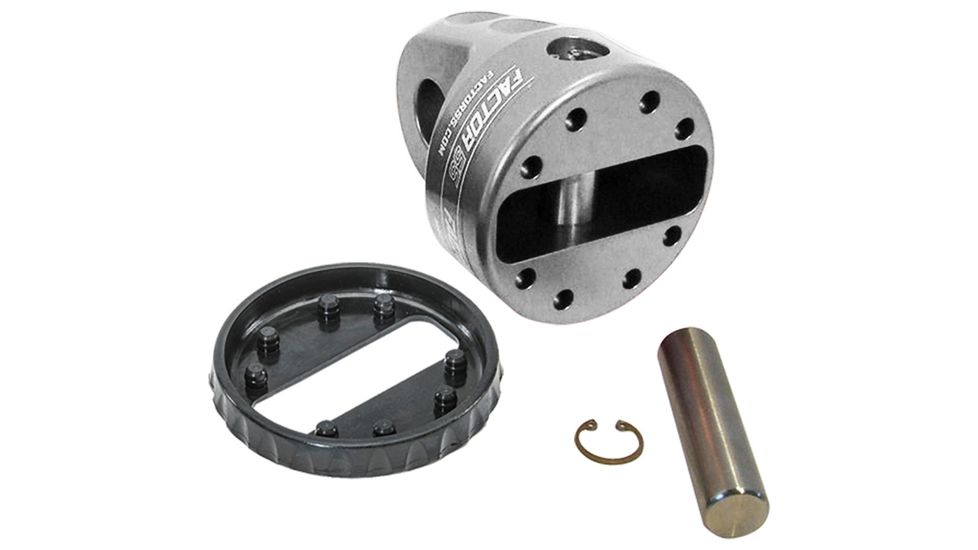

FACTOR55 Prolink Winch Shackle Mount Assembly

Features/Specifications:

The advantages of winching with a screw pin shackle over a conventional winch hook are many:

D-ring shackles are up to 5X stronger than conventional winch hooks

Conventional hooks are too small to safely fit both ends of a recovery strap

Recovery straps cannot slip out of a shackle like they can with hooks

Hook safety latches are not rated for loads and can tear recovery straps

Conventional hook surfaces add higher stresses to recovery strap fibers, resulting in decreased strap ratings

Shackles can be quickly removed and stowed away until needed for winching.

Hooks do not cinch neatly against fairleads and are prone to rattling and loosening

Conventional winch hooks are designed for chains - not commonly used recovery straps

Engineered, Tested, and made in specialized factories

Stress analyzed using COSMOS FEA and destructively tested for confirmation

Billet construction - precision machined from 6061-T6 Kaiser Aluminum round bar

16,000 pound max load rating

Fits all steel cables and synthetic ropes up to 3/8in in diameter

Fits eyes equipped with standard or tube thimbles to 3/8 inch diameters

1.2 inch shackle tab thickness virtually eliminates inshackle rattlein

Massive 5/8 inch diameter carbon steel double shear pin

Optional EPDM inRubber Guardin protects alloy Hawse fairleads - rubber barb attachment

Can be installed and removed in minutes - simple snap ring removal

Cinches neatly against all types of fairleads - Hawse or Roller

Red and Black colors are powder coated to resist fading while all other colors are beautifully anodized and zinc plated in the USA

Features of FACTOR55 Prolink Winch Shackle Mount Assembly:

• The advantages of winching with a screw pin shackle over a conventional winch hook are many:
• D-ring shackles are up to 5X stronger than conventional winch hooks
• Conventional hooks are too small to safely fit both ends of a recovery strap
• Recovery straps cannot slip out of a shackle like they can with hooks
• Hook safety latches are not rated for loads and can tear recovery straps
• Conventional hook surfaces add higher stresses to recovery strap fibers
• resulting in decreased strap ratings
• Shackles can be quickly removed and stowed away until needed for winching.
• Hooks do not cinch neatly against fairleads and are prone to rattling and loosening
• Conventional winch hooks are designed for chains - not commonly used recovery straps
• Engineered
• Tested
• and made in specialized factories
• Stress analyzed using COSMOS FEA and destructively tested for confirmation
• Billet construction - precision machined from 6061-T6 Kaiser Aluminum round bar
• 16,000 pound max load rating
• Fits all steel cables and synthetic ropes up to 3/8in in diameter
• Fits eyes equipped with standard or tube thimbles to 3/8 inch diameters
• 1.2 inch shackle tab thickness virtually eliminates inshackle rattlein
• Massive 5/8 inch diameter carbon steel double shear pin
• Optional EPDM inRubber Guardin protects alloy Hawse fairleads - rubber barb attachment
• Can be installed and removed in minutes - simple snap ring removal
• Cinches neatly against all types of fairleads - Hawse or Roller
• Red and Black colors are powder coated to resist fading while all other colors are beautifully anodized and zinc plated in the USA

Package Contents:

• FACTOR55 Prolink Winch Shackle Mount Assembly
