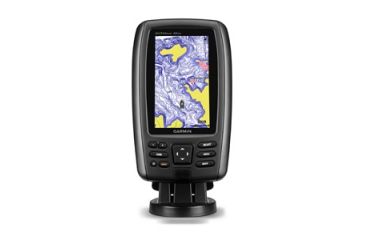

Garmin echoMAP Sonar 43DV with Transducer 010-01279-00
Tap Tap to Zoom
Code: GA-FH-010-1279-00
MPN: 010-01279-00
UPC: 753759124427
Product Info for Garmin echoMAP Sonar 43DV with Transducer
Get the clearest scanning sonar and gain new control over your fishing success when you use the Garmin echoMAP Sonar 43DV with Transducer. With preloaded maps for over 17,000 US lakes, rivers, and reservoirs, this Sonar System from Garmin offers highly detailed freshwater maps which quickly point out the precise information you're looking for: designated fishing areas, campgrounds, and docks, among other important details. In addition, the Garmin echoMAP Sonar 43DV Fishing Map with Transducer offers a scanning sonar that offers crystal clear, real time picture of what's happening 750-feet below your boat. When you're done using the Garmin echoMAP Sonar 43DV System with Transducer, the device easily disconnects from the mount, ensuring that you don't waste time fiddling with cables.
Specifications for Garmin echoMAP Fishing Sonar 43DV with Transducer:
| Physical dimensions: | 4.0" x 6.6" x 1.8" (10.2 x 16.8 x 4.6 cm) |
| Display size, WxH: | 2.1" x 3.7"; 4.3" diagonal(5.4 x 9.5 cm; 10.5 cm diagonal) |
| Display resolution, WxH: | 480 x 272 pixels |
| Display type: | WQVGA display |
| Weight: | 1.6 lbs (0.7 kg) |
| Water rating: | IPX7 |
| Antenna: | Internal only |
| NMEA 0183 compatible: | Y |
| Power consumption: | 5W |
| Mounting options: | Bail or flush |
| Garmin Marine Network ports: | N |
| Preloaded maps: | LakeVu HD (inland maps) |
| Accepts data cards: | 1 microSD card |
| Waypoints: | 3,000 |
| Routes: | 100 |
| Track log: | 20,000 points; 50 saved tracks |
| Garmin Sonar compatible: | Y |
| Supports AIS (tracks target ships position): | Y |
| Supports DSC (displays position data from DSC-capable VHF radio): | Y |
| Tide tables: | Y |
| BlueChart Mobile (planning) compatible: | N |
| Dual-frequency (50/200 kHz) sonar capable: | Y |
| Dual-beam (77/200 kHz) sonar capable: | Y |
| Transmit power: | 500 W (RMS) / 4,000 W (peak to peak) |
| DownVu: | Y (built-in) |
| SideVu: | N |
| Maximum depth: | 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up): | Y |
| Water temperature log and graph: | Y |
| Sonar recording: | Y |
| Sonar history rewind: | Y |
| NMEA 0183 input ports: | 1 |
| NMEA 0183 output ports: | 1 |
| Video input ports: | N |
| Video output ports: | N |
| Wireless connectivity: | N |
Features of Garmin echoMAP Lake Sonar 43DV with Transducer:
- High-contrast color display with keypad control with preloaded LakeVu HD maps
- Built-in DownVu scanning sonar with the clearest images on the water
- Built-in 500 W (RMS) HD-ID sonar (4,000 W peak-to-peak)
- 5 Hz Internal GPS updates position and heading 5 times per second
- Tilt/swivel quick-disconnect mount
Package Contents:
- Garmin echoMAP HD Sonar 43DV with Transducer
- echoMAP 43dv with U.S. LakeVu HD
- Power/data cable
- Quick-release mount
- GT20-TM transducer (4-pin)
- Trolling motor mount
- Hardware
- Documentation
