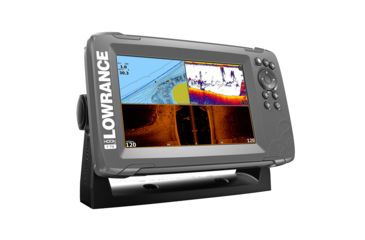

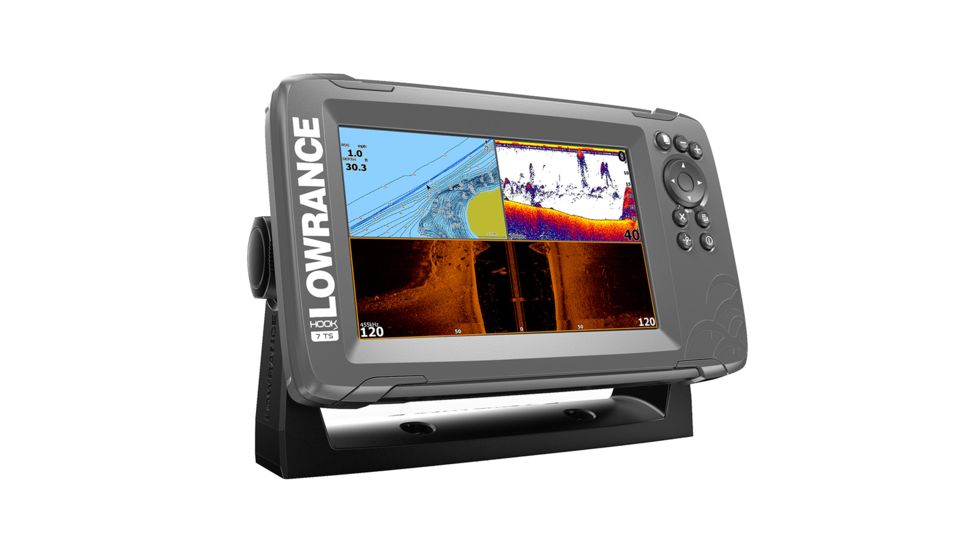

Lowrance 7" Chartplotter/Fishfinder TripleShot Transom Mount Transducer w/Nav+ Chart HOOK²-7 67561
Tap Tap to Zoom
Questions & Answers
- Color:
- Black
- Resolution:
- 800x480 pixels
- Screen Size:
- 7 in
Code: 34W-ND-CWR9162-000-14294-001
MPN: 000-14294-001
UPC: 9420024169698
Product Info for Lowrance HOOK²-7 7" Chartplotter/Fishfinder TripleShot Transom Mount Transducer w/Nav+ Chart
HOOK2-7 7" Chartplotter/Fishfinder TripleShot Transom Mount Transducer w/Nav+ ChartThe worlds easiest fishfinder HOOK2 7 TripleShot offers simple menus easy access to key functions and Autotuning sonar. Powered by proven Lowrance performance HOOK2 7
Features of Lowrance HOOK²-7 7" Chartplotter/Fishfinder TripleShot Transom Mount Transducer w/Nav+ Chart
- 7-inch SolarMAX Display - Get crisp and clear views of fish and fish-holding structure with the excellent clarity and daylight visibility of a high-resolution SolarMAX display.
- Automated sonar settings - You will spend more time fishing and less time dialing in your sonar with HOOK2 Autotuning sonar. Just plug it in and fish. It doesn't get any easier.
- Easiest-to-use menu operation and Dedicated Keypad - Make the adjustments you want with fewer key presses via a simplified menu layout and dedicated keypad.
- Exclusive Tripleshot 3-in-1 Sonar with High CHIRP SideScan and DownScan Imaging - TripleShot three-in-one sonar makes it easier to stay on the fish delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat.
- Built-in detailed mapping - Easily find depth changes roadbeds or your favorite fishing spot on the built-in high-detail U.S. map in HOOK2 featuring 1-foot contours or more than 3000 lakes.
- Mapping options - You can easily upgrade the mapping on your HOOK2 with optional mapping cards from C-MAP C-MAP Genesis Navionics and more.
- microSD card slot - -Save your waypoints routes and trails to a microSD card or upgrade your mapping with an optional chart card.
- Easy front-dash or gimbal-bracket mounting installation - -Pick the best installation option for your boat from simple flush-mount and gimbal-bracket installation options.(Both Included)
- Display: 7" (177.8mm)
- Resolution: 800 x 480
- Backlighting: LED
- Power Output: TBD
- Operating Frequency: High CHIRP Wide-angle 200kHz 455/800 kHz
- Media Port: One (1) microSD slot
- Operating Voltage: 10.4-17 VDC (min-max)
- Warranty: One year
- Depth Alarm: Yes
- Shallow Alarm: Yes
- Temperature Readings: Yes
- Transducer Type: TripleShot transducer
- Display Type: WVGA color TFT LCD
- Backlighting Levels: Adjustable Screen And Keypad
- Waterproof Standard/rating: IPx7
- Product Width: 9.31" 236.4 mm
- Product Depth: 3.28" 83.3 mm
- Product Height: 5.64" 143.3 mm
- Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
- Routes storage: 100
- Waypoint Storage: 3000
- GPS Antenna Type: Internal high-sensitivity
- Plot Trail storage: 100
- GPS Alarms: Yes
- Custom Mapping: Optional Americas chart upgrades include C-MAP Navionics HotMaps Premium and Fishing Hotspots PRO. Global chart upgrade options include Navionics + and C-MAP MAX-N
- Background Mapping: Comes with worldwide basemap Navionics+ Chart Card
Package Contents:
- Lowrance HOOK²-7 7" Chartplotter/Fishfinder TripleShot Transom Mount Transducer w/Nav+ Chart
