EOTech M914 PVS-14 Type NVG Monocular is not available for online ordering. Please call us at 800-504-5897 or fill out our and one of our team members will contact you as soon as possible!

Code: ET-NVM-M914-245620-005
MPN: 245620-005

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

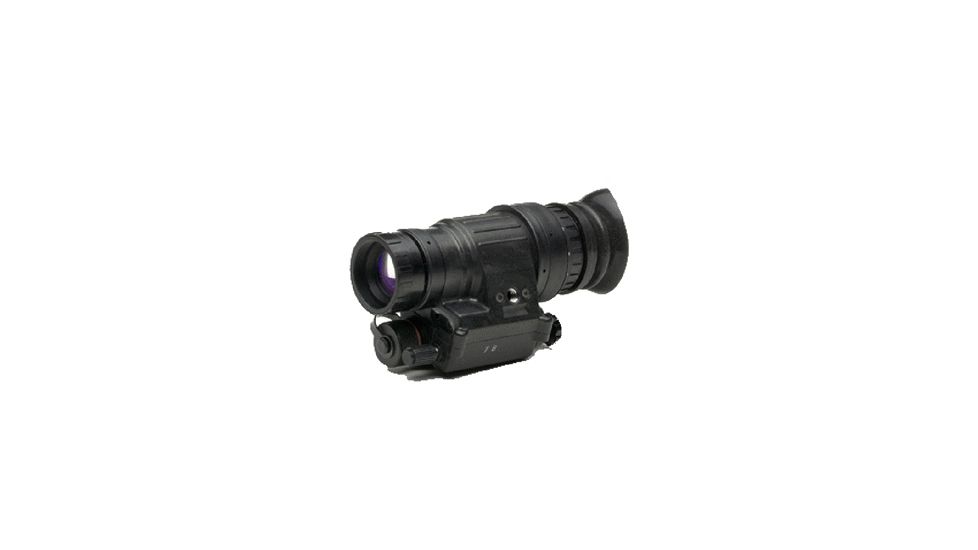

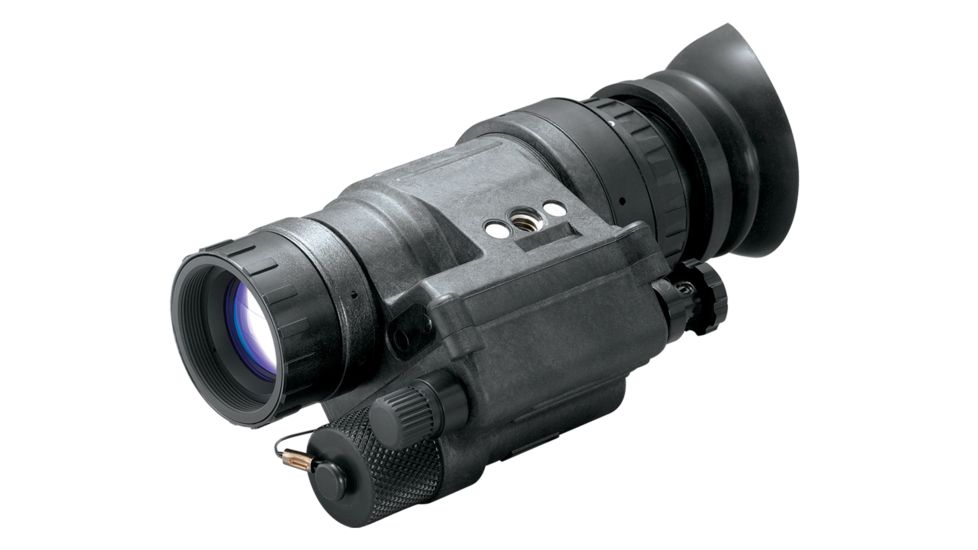

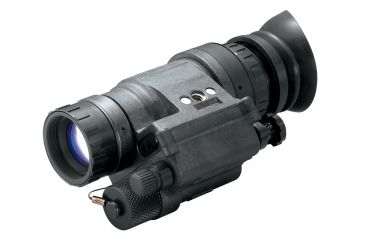

EOTech M914 PVS-14 Type NVG Monocular Product Info

EOTech M914 PVS-14 Type NVG Monocular provides versatility and impressive image quality. The M914 (AN/PVS-14) monocular from EOTech features Light Cut-Off Tube Protection and Manual Gain Control. The EOTech PVS-14 offers the capabilities of a hand-held pocket scope, and can be mounted for right or left eye as a monocular and a weapon sight if mounted in conjunction with an infrared laser aimer. The EOTech M914 Night Vision Monocular delivers Gen 3 night vision performance with convenient hands-free operation or weapon-mounted operation. Make sure to see the full line of EOTech Night Vision devices for more versatile, high grade night vision devices.

Eotech 245620-005: M914 Omega PVS-14 Type NVG Monocular US Spec with accessories

Specifications for EOTechM914A Night-Vision Monoculars:

Magnification: 1x
Field of View (FOV): 40.0°
Objective Lens: 27 mm (1.1 in.)
Minimum Focus Distance: 25 cm (9.8 in.)
Eye Relief: 25 mm (1 in.)
Diopter Adjustment: +2 to -6
Gen III Image Intensification Tube Options
Alpha;Resolution: 45 lp/mm (min);Signal/Noise
Delta;Resolution: 64 lp/mm (min);Signal/Noise
Omega;Resolution: 64 lp/mm (min);Signal/Noise
Power Source: 1 AA Battery
Battery Life: ~40 Hours at Room Temperature
Physical Characteristics
Size: 11.4 cm L x 5.1 cm W x 5.7 cm H (4.5 in L x 2 in W x 2.2 in H)
Weight: 290 g with battery (.6 lbs)
Color: Black
Mounts: Head and Helmet Mount Adapter
Weapon Mount Adapter for Picatinny Rail (MIL-STD-1914/STANAG 2324)
Housing: 1 year
Tube: 1 year
Model Numbers
Alpha: Model 245620-00
Delta: Model 245620-003
Omega: Model 245620-005

Features of EOTech M-914 Night Vision M-914A:

  • Hands-free or one-hand operation
  • High light cut-off tube protection
  • Mounts available for head, helmet or weapon interfaces
  • Compact, lightweight and multi-purpose
  • Generation III night vision
  • U.S. manufactured image intensifier tube
  • One of the most versatile night vision systems available
  • Offers capabilities of a hand-held pocketscope, a right or left eye-mounted monocular and a weapon sight when mounted in conjunction with an infrared laser aimer night vision-compatible primary optic
  • An Active projected infrared LED provides short range illumination allowing such activities as map reading
  • Self-contained system operation on a single AA battery
  • Low-battery indicator in eyepiece
  • OptionaEOTechX and 5X Magnification
  • Hands-Free or One-Hand Operation
  • High Light Cut-Off Tube Protection
  • Manual Gain Control
  • One-Year Warranty Standard

Package Contents:

  • EOTech M914 PVS-14 Type Night Vision Monocular
  • Operation Manual
  • Soft Carrying Case
  • Battery
  • Demist Shield Assembly
  • Lens Paper
  • Shoulder Strap
  • Retainer Cord
  • Head Mount Assembly
  • Weapon Mount and Head/Helmet Mount Adapter

EOTech M914 PVS-14 Type NVG Monocular Related Products

EOTech M914 PVS-14 Type NVG Monocular Unorderable Models

Eotech M914 Alpha PVS-14 Type NVG Monocular (1250 FOM) with accessories, MPN: 245620-001, Code: ET-NVM-M914-245620-001
Eotech M914 Delta PVS-14 Type NVG Monocular (1600 FOM) with accessories, MPN: 245620-003, Code: ET-NVM-M914-245620-003
