Product No Longer Available

Unfortunately EOTech M-949 ANVIS-6/9 Aviator Night Vision Goggle, Class B is no longer carried by OpticsPlanet. You can also explore other items in the Binoculars, Night Vision categories yourself to try and find the perfect replacement for you!

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

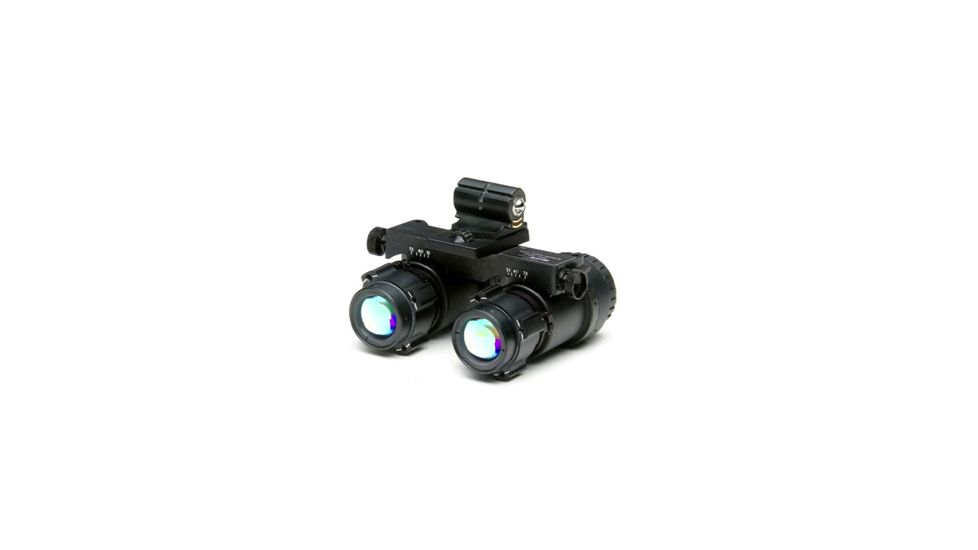

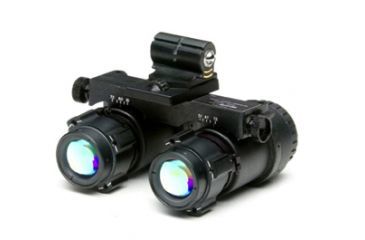

EOTech M-949 ANVIS-6/9 Aviator Night Vision Goggle, Class B Product Info

EOTech Class B M949 ANVIS-6/9 Type Aviator Goggle is a highly sophisticated device packed with plenty of features for a wide range in functionality. The M949 by EOTech improves the aviator's night vision imaging system (ANVIS) increase situational awareness, improves system performance and enhances ergonomic characteristics benefiting both law enforcement and civil operators. The EOTech M949 (AVS-9 Type) features binocular viewing for optimized depth perception and large 25mm eyepieces that provide improved eye relief, excellent for people with eyeglasses. EOTech M949 night vision goggle has ergonomically designed interface controls (including inter-pupillary and vertical/fore-aft/tilt adjustments) provide improved system fields-of-view. Be sure to see the full line of EOTech night vision devices for more high performance devices.

Specifications for EOTech M949 ANVIS Goggle:

Magnification: 1x
Field of View (FOV): 40.0°
Objective Lens: 27 mm (1.1 in)
Interpupillary Adjustment: 52-72 mm (2-2.8 in)
Eye Relief: 25 mm (1 in)
Diopter Adjustment: +2 to -6
Gen III Image Intensification Tube Options
  • Resolution:45 lp/mm (min)
  • Signal/Noise:17.1:1 (min)
  • FOM:1250 (max)
  • Resolution:64 lp/mm (min)
  • Signal/Noise:21.0:1 (min)
  • FOM:1600 (max)
  • Resolution:64 lp/mm (min)
  • Signal/Noise:21.0:1 (min)
  • FOM:1600 (max)
  • Resolution:64 lp/mm (min)
  • Signal/Noise:25.0:1 (min)
  • FOM:Unrestricted
Power Sources: Low Profile Power Pack (LPPP) with 4 AA batteries (2 AA primary, 2AA alternate)
Cable from Aircraft Power Converter into Low Profile Power Pack
Warning Indicator: Red LED Activates on Mount at 2.3 volts DC or on Battery voltage of 2.0-3.0 Volts DC
Physical Characteristics
Size: 11.6 cm L x 13 cm W x 8.9 cm H (4.6 in L x 5.1 in W x 3.5 in H)
Weight: 590 g Max (1.3 lbs)
Vertical Adjustment: 25 mm Min (1 in)
Fore/Aft Adjustment: 27mm Min (1.1 in)
Tilt Adjustment: 10° Min
Objective Adjustment: 3/4 turn (338°)
Automatic Breakaway: 11-15g (0.02 - 0.03 lbs)
Mounts: Multiple Helmet Mount Adapters Available
Housing & Tube: 1 Year
Ordering Information
Alpha: Model 245080-001
Delta: Model 245080-003
Omega Tube: Model 245080-004

Benefits of EOTech Night-Vision M949 Pilots NV Goggles

  • Provides improved situational awareness and enhanced ergonomics
  • Binocular viewing for optimized depth perception and large 25mm eyepieces
  • Ergonomically designed interface controls including inter-pupillary and vertical/fore-aft-tilt adjustments
  • Generation III night vision
  • U.S. manufactured image intensified tube

Features of EOTech Night Vision M 949 Goggles:

  • Optional Class A and Class C ("Leaky Green") Filters
  • Clip-On Power Supply (COPS) for pre-flight or dismounted operations
  • Low Profile Power Pack with primary and alternate battery plus aircraft power port provide triple redundancy for complete system confidence
  • Multiple Helmet Mounts
  • Clip-On Power Supply (COPS)
  • Dual AA Battery Operation
  • One-Year Warranty Standard
  • Improved 40° field of view

Package Contents:

  • EOTech M949 ANVIS-6/9 Aviator Goggle - Class B
  • Operation Manual
  • Soft Carrying Case
  • Low Profile Power Pack
  • Clip-On Power Supply
  • Lens Paper
  • Neck Cord and Airworthiness Log
