Product No Longer Available

Unfortunately Leica Geosystems 200 Rugby Class IIIa GC Package with Rod-Eye Plus is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

This model of Leica Geosystems Surveying Equipment is now discontinued and no longer available. Please check out our other selection of Surveying Equipment

Leica Geosystems 200 Rugby Class IIIa GC Package with Rod-Eye Plus Product Info

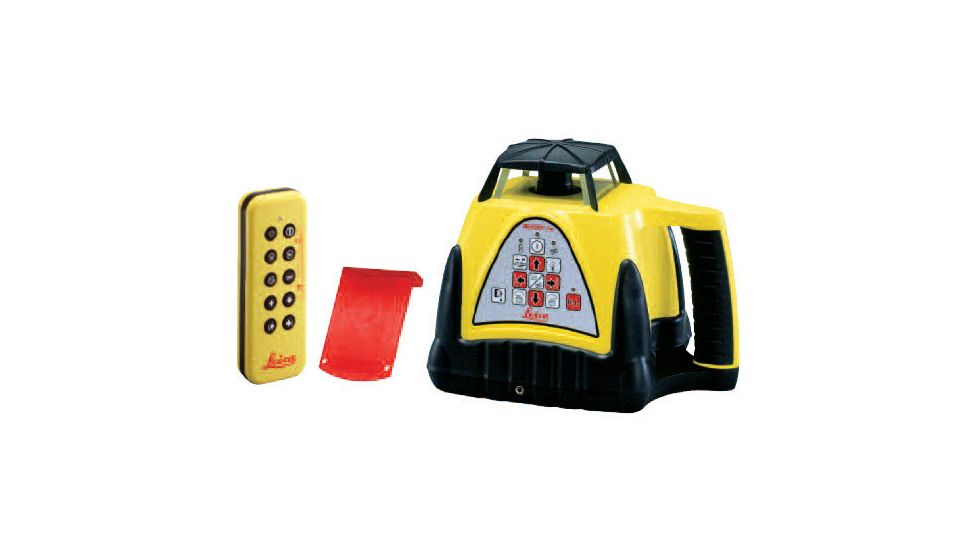

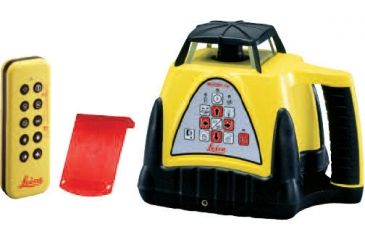

LeicaGeosystems Rugby 200 Class IIIa GC Package with Rod-Eye Plus is the new Leica Geosystems branded laser built from the combined heritage and expertise of Laserimage Alignment and Leica Geosystem. Like the Leica Geosystems Rugby 100 series laser, the Rugby 200 is a new breed of laser that sets the industry standard for durability and value. Rugged and reliable, this Leica Geosystems Surveying Equipment's ergonomic, structural, and performance features add up to the best interior and exterior construction laser in the market today. The Surveying Equipment by Leica Geosystem is a horizontal and vertical self-leveling laser for interior and general construction jobs of any size, large or small.

Use this Leica Geosystems Interior Laser many different ways, including: installing ceiling grids, exterior site preparation, installing and laying out walls, checking grade, installing raised access floors, concrete forming, pad placement, transferring points from floor to ceiling, setting foundations and footings, setting window supports. Removable laydown foot provides a solid, three-point support for stability without any external hardware.

Whether you have to precisely stake out a construction site, perform control measurements, collect height and angle data, align concrete forms, install ceilings and partitions, lay gravity flow pipe, locate underground services or complete site preparation and earthworks - Leica Geosystems offers the right instrument, construction laser or machine control installation specifically designed for your construction application. Easy-to-use, jobsite tough, accurate and reliable - Leica Geosystems instruments and lasers ensure the efficient use of your materials and resources. High quality products, such as optical and electronic levels, construction lasers, total stations and machine automation systems, provide fast results, keep you working and increase your profitability.

Leica Rod Eye Plus Laser Detector Sensors with bracket is a full featured receiver with proven performance in the field. This Surveying Equipment Accessory by Leica Geosystems has three bright LED's, nine channel arrow display and audio output that provide the user with all the information needed to lock on the laser beam and get the job done right.

Additionally, Leica Geosystems surveying equipment accessory features the double beep beam finder, last beam strike memory, laser low battery indication and the reversible clamp for rectangular or oval rods. All these features put the Leica Rod Eye Plus at the top of the list for today's contractor.

  • Available Models of Leica Geosystems Class IIIa Rugby 200 GC Interior Laser Packages:
  • 6003513: Leica Geosystems Rugby Class IIIa 200 GC Laser Package: Rod-Eye Plus, Re-chargeable Battery
  • 6003512: Leica Geosystems Rugby Alkaline 200 GC Class IIIa Package with Rod-Eye Plus

Specifications for Leica Geosystems Class IIIa Rugby 200 GC Interior Laser Package:

Working Range: Up to 1000 feet (300 m) with sensor
Self-leveling Accuracy: +- 1/16" @ 100 feet (+- 1.5 mm @ 30 m)
Self-leveling Range: +- 5
Rotating Speeds: 0, 1, 2, 5,10 rps
Scan Modes: 10, 45, 90, 180
Battery Types: Alkaline / NiMH options
Battery Life: 50 hours with alkaline batteries, 30 hours with rechargeable NiMH batteries
Laser Diode: 635 nm visible laser diode
Dimensions (Height x Width x Depth): 7.8 x 9.8 x 6.9 inches (197 x 248 x 175 mm)
Operating Temperature: -4 F to +122 F (-20 C to +50 C)
Weight: 6.5 Ib (2.95 kg) w/batteries
Environmental: Waterproof to IPX-6 standard

Features of Leica Geosystems 200 Rugby GC Class IIIa Interior Laser:

  • Waterproof and dustproof to work reliably in all weather and job site conditions
  • Housing made from co-molded rubber and high-impact plastic
  • Wide, stable aluminum base for maximum strength and stability
  • The head is completely enclosed to protect the crucial interior parts
  • Rugged, high-impact carrying case included
  • 24 month exclusive knockdown warranty
  • The keypad is easy to understand with the features clearly indicated
  • Self-leveling accuracy of +- 1/16" at 100 feet (+- 1.5 mm @ 30 m)
  • H.I. elevation alert
  • Automatic/manual modes with manual grade
  • Enclosed and protected rotating head with selectable head speeds and scan mode
  • Infrared remote control compatible
  • Bright, highly visible beam
  • Available with the rechargeable NiMH battery pack or alkaline battery pack
  • Waterproof to IPX-6 standard

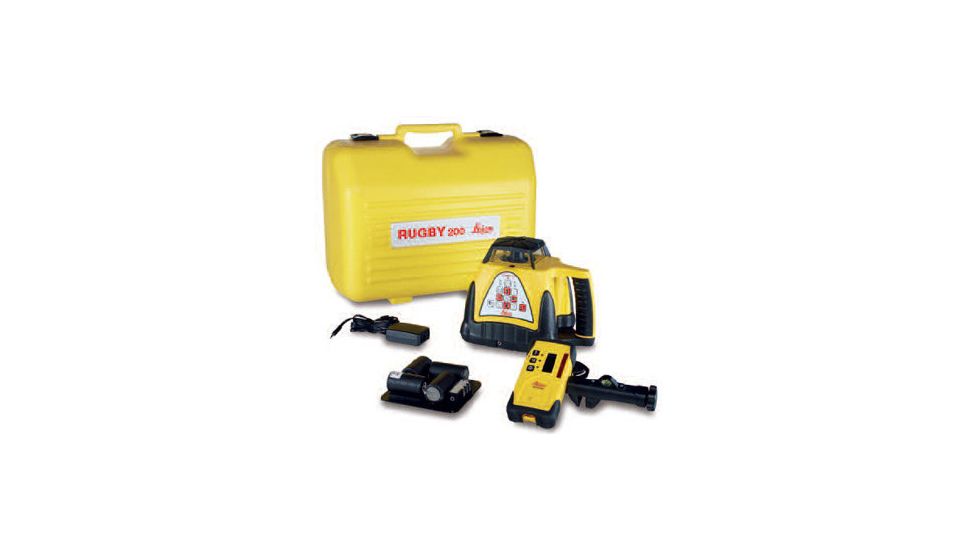

Package Contents:

  • Leica Geosystems Rugby 200 Class IIIa GC Package with Rod-Eye Plus
  • Leica Geosystems 740318 Rugby 200 (Class IIIa) with STANDARD Case
  • Leica Geosystems Rod-Eye Plus with bracket 769810
  • 726746 NiMH Battery Pack for Rugby (only 6003513)
  • 727165 NiMH Battery Charger for Rugby, 110V (only 6003513)
  • 731440 US Cable for Universal Charger (only 6003513)
  • 726747 Alkaline Battery Housing w/o batteries (only 6003512)
  • 8212806 Alkaline batteries (4D-Cells) (only 6003512)
  • 732987 User Manual Rugby 200, english

Leica Geosystems 200 Rugby Class IIIa GC Package with Rod-Eye Plus Unorderable Models

Leica Geosystems Rugby 200 (Class IIIa) GC Package Rod-Eye Plus, Alkaline, MPN: 6003512, Code: L5-SQ-200Plus-6003512
Leica Geosystems Rugby 200 (Class IIIa) GC Package, w/ Rod-Eye Plus, Re-Chargeable battery,, MPN: 6003513, Code: L5-SQ-200Plus-6003513
