- Additional Features:
- Manual Gain
- Magnification:
- 1 x
- Night Vision Generation:
- 3
- Field of View, Linear:
- 2184 ft at 1000 yds
Code: 8N-NVM-PVS14-NO-NM-P14-3STM
MPN: NM-P14-3SM

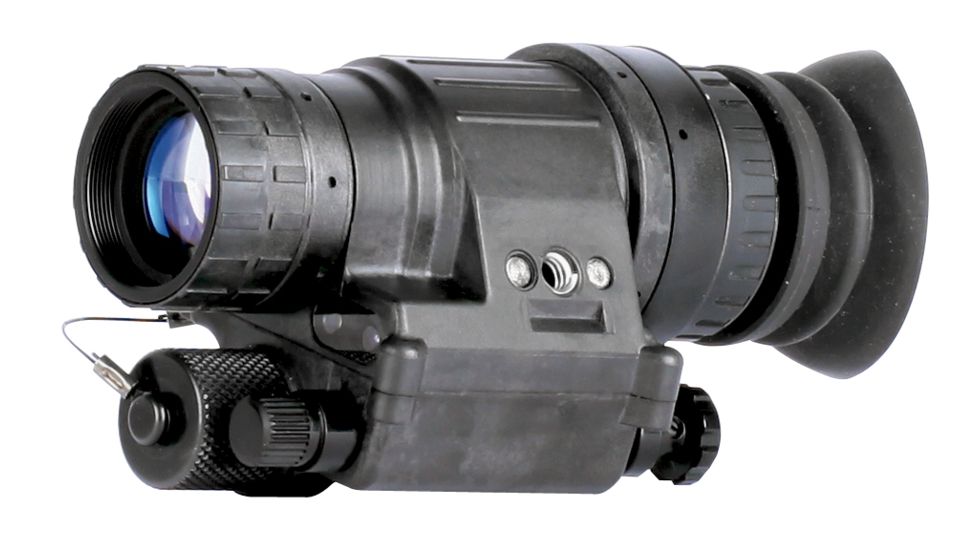

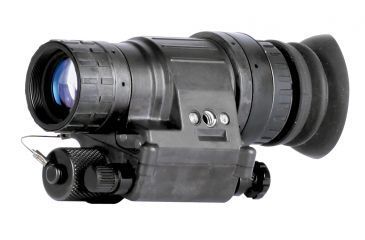

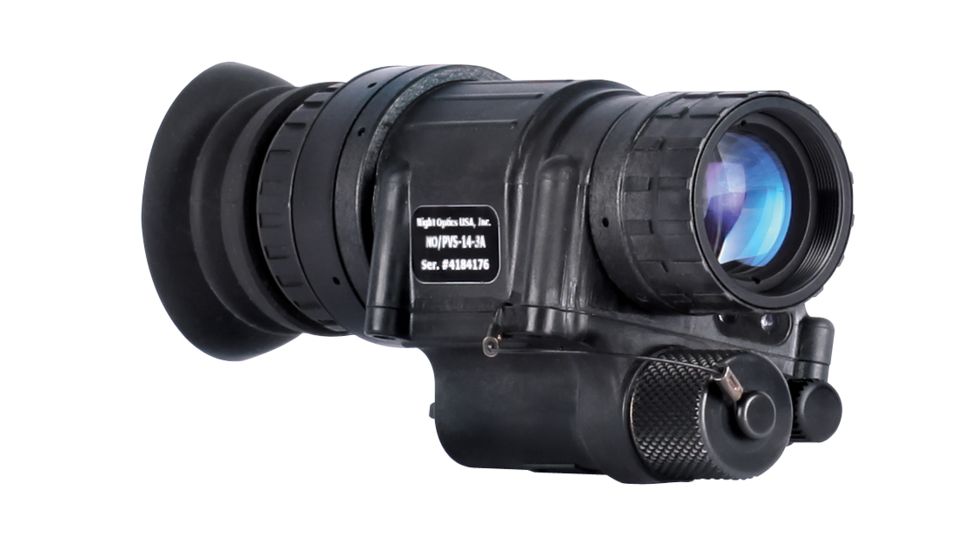

Product Info for Night Optics PVS-14 Gen 3 Mil-Spec Adaptable Night Vision Mono-Goggle
Optics PVS-14 Gen 3 Night Vision Mono-Goggle is an adaptable, professional-grade night vision sight that's perfectly suited to helmet use, weapon use, or independent operation. Capable of being used as a standalone night vision monocular, the PVS-14 uses state of the art Generation 3 night vision tubes and professional-grade optics to transmit a high-resolution, high-brightness night vision image no matter where your operations take you. Anybody can learn how to use these Night Optics night vision devices; all you have to remember is the three-position power switch (On/Off/Momentary) and the Constant Infrared button, which activates the Night Optic Gen 3 Mil-Spec NV Mono-Goggle's IR illuminator. Smart electronics guide these night vision sights, which automatically deactivate when flipped up or removed from its helmet mount. Night Optics has even included a brightness protection sensor and automated brightness control in the NightOptics PVS14 Night Vision Monocular.![]()
Night Optics has designed the NightOps PVS 14 Mountable Night Vision Goggle to be endlessly versatile. All models come packaged with a fully adjustable headmount assembly that makes it easy to install the monocular on a helmet or headgear, plus they come with an adapter to optimize the Night Optics night vision monocular for right or left eyes. The Night Optics PVS-14 Mil-Spec Night Vision Goggle is also perfectly capable of being mounted to a weapon, and it's particularly well suited to adding night vision capability to close-quarters attachments like red dot and reflex sights. The NG models of these night vision monoculars come packaged with a swing arm attachment, so you can flip the monocular out of the way while still keeping it mounted. For a versatile night vision goggle that is excellent for battlefield operations, picking your way across a dark and hazardous landscape, or performing nighttime reconnaissance, outfit your squad with the Night-Optics Gen 3 Adaptable Night Vision Monocular-Goggle.
Specifications for NightOps PVS14 Military-Grade NV Mono-Goggle:
| Night Vision: | Generation 3 |
| Magnification: | 1x |
| Power Supply: | Gated (NG-P14-AGM, NM-P14-3AGM), Non-Gated (NG-P14-3STM, NM-P14-3STM) |
| Lens System: | 26mm f1.2 |
| Field of View Angle: | 40° |
| Field of View: | 2184' at 1000 yards |
| Range of Focus: | 10" to Infinity |
| Detection Range: | 1148' |
| Recognition Range: | 984' |
| Diopter Adjustment: | +2 to -6 |
| Waterproof: | Up to 66' |
| IR Illuminator: | Yes |
| Batteries: | 1x AA (included) |
| Battery Life: | 40 hours |
| Dimensions: | 4.5" x 2.25" x 2" |
| Weight: | 13.8oz |
Features of Night Optics PVS 14 Helmet/Weapon Mounted Night Vision Goggle:
- Adaptable, high resolution night vision mono-goggle from Night Optics
- Can be used independently as a night vision monocular
- Mounts to rear of rifle scopes and close-combat sights for weapon mounting
- NG-P14-AGM and NG-P14-3STM models include swing-arm adapter for weapon mounting
- Can be mounted to helmet of headgear with included adapter
- Right and left-eye adapters for helmet mounting
- High-resolution Generation 3 night vision image intensifier tubes
- Automatic brightness control and fully-automated brightness protection sensors
- Automatically shuts down with "flipped up" or removed from mount
- Manual gain control
- Simple, 3-position controls
- Lightweight, rugged, and waterproof
- Can run for up to 40 hours on a single AA battery
- Backed by Night Optics 2 year warranty
Package Contents:
- Night Optics PVS-14 Gen 3 Night Vision Mono-Goggle
- 1x f1.12 Objective Lens Assembly
- Sacrificial filter
- Demist shield
- 1x AA battery
- Lens tissue
- Operating manual
- Hard Case (NM models only)
- Soft Case (NG models only)
- Swing Arm Adapter (NG models only)
Related Products to Night Optics PVS-14 Gen 3 Mil-Spec Adaptable Night Vision Mono-Goggle
Night Optics PVS-14 Gen 3 Mil-Spec Adaptable Night Vision Mono-Goggle Unavailable & Discontinued Models
List of Unorderable Models
- Night Optics PVS-14 Gen 3 NV Mono-Goggle, Std, Manual Gain NO-NM-P14-3STM , MPN: NM-P14-3SM , Code: 8N-NVM-PVS14-NO-NM-P14-3STM
- Night Optics PVS-14 Gen 3 NV Mono-Goggle, Std, Manual Gain, Swing Arm NO-NG-P14-3STM , MPN: NG-P14-3SM , Code: 8N-NVM-PVS14-NO-NG-P14-3STM
- Night Optics PVS-14 Gen 3 NV Mono-Goggle, Adv, Gated, Manual Gain NO-NM-P14-3AGM , MPN: NM-P14-3GM , UPC: 029757000750 , Code: 8N-NVM-PVS14-NO-NM-P14-3AGM
- Night Optics PVS-14 Gen 3 NV MonoGoggle, Adv, Gated, ManGain, Swing Arm NO-NG-P14-AGM , MPN: NG-P14-3GM , UPC: 029757001054 , Code: 8N-NVM-PVS14-NO-NG-P14-AGM
