Product Discontinued by Manufacturer

Nikon Instruments SMZ-445 10X Microscope 83601 Set with Eyepieces and Epi/Dia Stand has been discontinued by Nikon Instruments and is no longer available. Our product experts have helped us select these available replacements below.

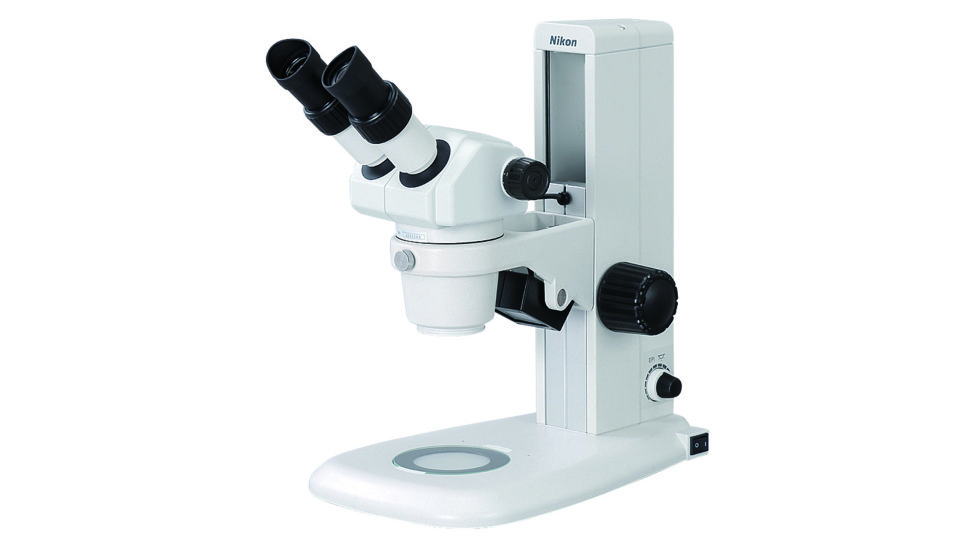

Nikon Instruments SMZ-445 10X Microscope 83601 Set with Eyepieces and Epi/Dia Stand Product Info

Nikon SMZ-445 StereoZoom Microscope 83601 Set with 10X Eyepieces and C-LED Focusing Stand, includes the Nikon SMZ-445 (MMA23008) Stereo Microscope that delivers the outstanding optical performance you expectimage from Nikon 's cutting-edge stereoscopic zoom microscopes. Porro prisms enable a lightweight, compact zoom microscope like the included Nikon SMZ-445 Stereo (MMA23008) with 0.8x ~ 3.5x zoom magnification (Zoom Ratio 4.4:1). High quality images with superior flatness are achieved by following the optical design and quality criteria of all Nikon 's high performance stereoscopic microscopes . The multicoated lenses provide clear, bright and high contrast images. The long working distance of 100mm allows safe focusing even with specimens having markedly uneven surfaces. This is useful when using tweezers, dissection tools or a pipette during specimen manipulation. The inside of the zooming body is treated with a mold-resistant finish. This maintains the integrity of the microscope optics even in hot, humid environments. The newly developed C LED microscope stand features built-in diascopic and episcopic illumination. The light intensity of each illumination type can be adjusted individually, and both can be used simultaneously. The LED light source uses very bright LED bulbs. Since they have a very long life, they avoid the cost and trouble of frequent replacement. And while the  MMD23500 Nikon C-LED Stand is compact and thin, it is designed to be robust for all uses. In addition to the microscope LED stand with built-in diascopic illumination, it also comes with dedicated 10x eyepieces with diopter adjustments for parfocality. Combining the Nikon SMZ-445 (MMA23008) with 10x eyepieces along with rubber eyecups makes for a perfect stereoscopic biological microscope. We are an Authorized US Distributor for Nikon Microscopes. All Microscopes by Nikon from our online store come with a Full Manufacturer Warranty.

Specifications for Nikon SMZ-445 Stereozoom Microscope (MMA23008) Part of 83601 Set:

Type:

Twin zooming objective optical system

Total magnification:

8x ~ 35x (4x ~ 70x by replacing eyepiece and/or auxiliary objective lens)

Eyepiece:

E10xB eyepieces (F.N. 21), E20xB eyepieces (F.N. 12)

Zoom range:

0.8x ~ 3.5x (Zoom ratio 4.4:1)

Auxiliary objective lens :

AL0.5x

Working distance:

100mm (standard configuration), 181mm (AL0.5x):

Eyepiece inclination:

45º

Optical system:

True erect image, 12º inner bevel, independent adjustment of right and left eyepieces, and 54 to 75mm interpupillary adjustment:

DELETE THIS BOX

DELETE THIS BOX

Weight:

(Zooming body) Approx. 1.0kg

Features of Nikon SMZ-445 Microscope 83601 Set:

  • The multicoatings on lens surfaces provide clear, bright and high contrast images.
  • Microscope has Mold-resistant finish
  • Dedicated 10x eyepieces with diopter adjustments for parfocality
  • C- LED Stand with built-in diascopic and episcopic illumination

Package Contents:

  • Nikon SMZ-445 10X Microscope 83601 Set with Objectives and C-LED Focusing Stand
    • MMA23008- SMZ-445 Zoom Stereo Microscope-NC
    • MMK20106- E10XB-SMZ 445/460 Eyepiece-NC
    • MMD23500- C-LED Epi/Dia Stand W/ Focus Mount
    • 79035- AC Power Cord
