Opti-Logic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM
$379.99 $539.95 Save 30%
Code: OL-RF-RS800
MPN: RS800
UPC: 738490112476

OptiLogic RS800 Industrial Laser Rangefinder w/ serial RS232 PC interface port OEM Product Info

The Opti Logic RS 800 Industrial Rangefinder unit is laser range finder that outputs measured distance readings to an RS232 compatible port. Range finder data then can be output from Opti-Logic RS 800 Industrial laser range-finder as either raw image(relative) or calibrated (actual) distances. This information can then be used in several applications. OptiLogic RS-800 Industrial Laser Rangefinder is a great pre-made laser rangefinder to fit your needs and Opti Logic RS800 Industrial Rangefinder is also part of family of Opti-Logic Industrial laser range finders that are made to fit almost any project you will deal with.

Like all OptiLogic Rangefinders, the Opti-Logic RS800 is made in the USA!

Specifications for Opti-Logic RS800 Industrial Laser Range-Finder:

RS800 Range: 800 Yards (Minimum 4 Yards)
Communications:
  • ASCII Characters
  • Protocol: RS232 - 8, N, 1 (no handshaking)
  • Baud Rate:19200
  • Connections:Transmit, Receive, and Ground Wires
Data Raw Counts: ~200Hz
Data Calibrated Range: ~10Hz
Data Rate: ~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation
Calibrated Range Units: Feet, Meters, Yards
Laser: Class I (eye-safe), 905nm +/- 10nm
Power: 7-9VDC conditioned required, Current draw @ full power (~ 1.8W)
Laser Wavelength: RS100 905nm +/- 10nm
Laser Divergence: Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm)
Accuracy: +/- 1m on 1x1m2 diffuse target with 50% reflectivity
Resolution: 0.2m
Dimensions: 32x78x84mm
Weight: < 8oz

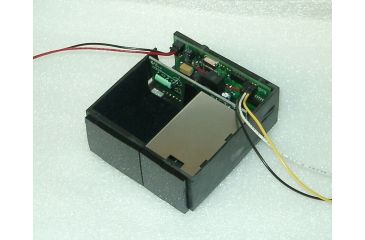

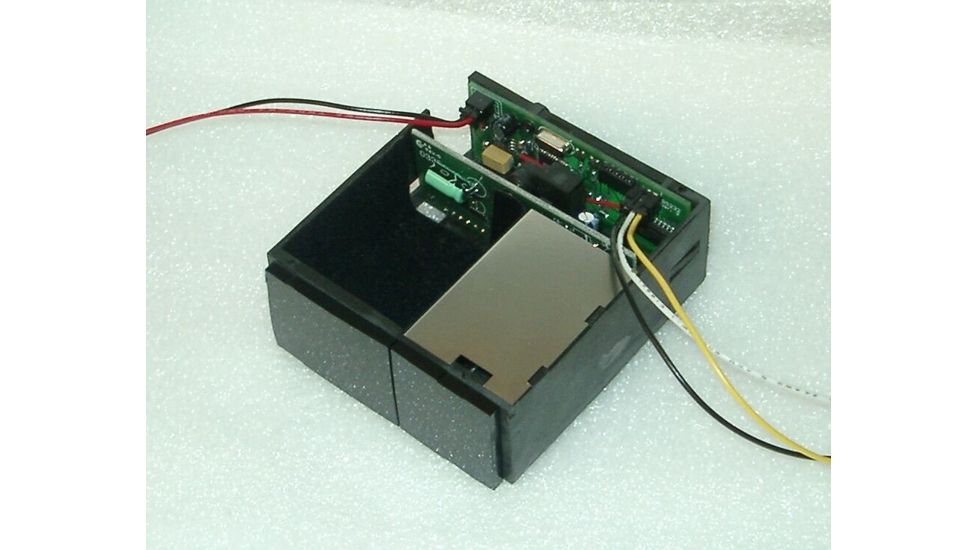

Case: Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request.
Note: Custom designs and modifications are available at additional cost, please contact manufacturer.

Features of Opti Logic Industrial Laser Range Finder RS800:

  • Compact
  • Light weight

Package Contents:

  • Opti-Logic RS800 Industrial Laser Range Finder
