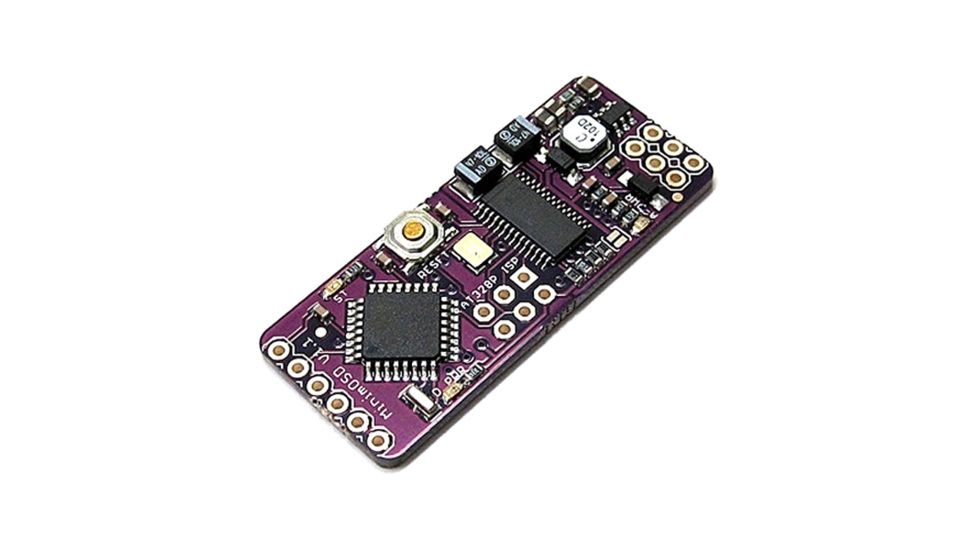

3D Robotics APM MinimOSD Rev. 1.1 Kit On Screen Display VID-KIT-0003

MinimOSD, an Arduino-based on-screen display board. It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as compact as possible. It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI-compatible 6-pin cable. It features two independent power and ground sections to isolate the OSD's analog stage: a +5V section for the ATmega and the OSD's digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD's analog stage, powered through the video in/out header and capable of handling up to +12V input. Solder jumpers are available to combine the two power and ground sections if desired. Starting on 4/30/2012, all boards are version 1.1, which reflects a change in the voltage regulator to deal with excessive heating issues. Specifications • ATmega328P with Arduino bootloader • MAX7456 monochrome on-screen display • FTDI cable compatible pinout • Standard 6-pin ISP header • Two independent power sections with an LED indicator on each • Solder jumpers for combining the power sections • +5V 500mA regulator for up to +12V supply input • Solder jumper for PAL video option • Exposed test points for HSYNC and LOS • Dimensions: 0.7"W x 1.7"L (2.4" w/ pins as shown) x 0.3"H

Package Contents:

• 3D Robotics APM MinimOSD Rev. 1.1 Kit On Screen Display
