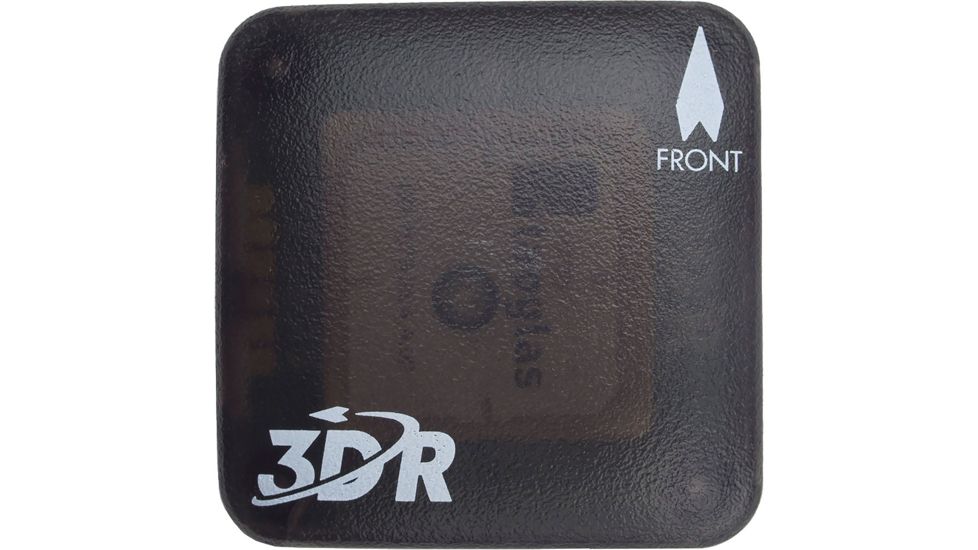

3D Robotics GPS Module for Pixhawk and APM 2.6 3DR uBlox GPS GPS-KIT-0003

3D Robotics GPS Module for Pixhawk with APM 2.6 3DR uBlox GPS comes with a larger antenna and updated technology. These Drones & Accessories from 3D Robotics incorporate the HMC5883L digital compass in a new design, which lets you mount the compass away from sources of potential interference in your vehicle. The 3D Robotics GPS Module for Pixhawk, APM 2.6 3DR uBlox GPS is an excellent solution for multicopters and rovers in particular. For the top of the line in GPS modules, pick up the 3D Robotics Pixhawk GPS Module with APM 2.6 3DR uBlox GPS.

Specifications for 3D Robotics Pixhawk GPS Module and APM 2.6 3DR uBlox GPS, GPS-KIT-0003:

Features of 3D Robotics Pixhawk GPS Module, APM 2.6 3DR uBlox GPS, GPS-KIT-0003:

• u-blox NEO-7 module
• 5 Hz update rate
• 25 x 25 x 4 mm ceramic patch antenna
• LNA and SAW filter
• Rechargeable 3V lithium backup battery
• Low noise 3.3V regulator
• I2C EEPROM for configuration storage
• Power and fix indicator LEDs
• Protective case
• APM compatible 6-pin DF13 connector
• Exposed RX, TX, 5V and GND pad

Package Contents:

• 3D Robotics GPS Module for Pixhawk GPS-KIT-0003 with APM 2.6 3DR uBlox GPS
• GPS with Compass module
• Protective case
• Four-position cable (compass)
• Five-position-to-six-position cable (GPS) for APM or PX4
