Product Discontinued by Manufacturer
AGM Global Vision ASP 3.45x50mm Medium Range Thermal Imaging Monoculars has been discontinued by AGM Global Vision and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging, Thermal Imaging Monoculars yourself to try and find the perfect replacement for you!

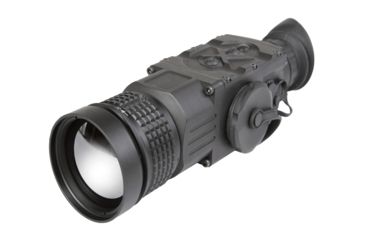

Product Info for AGM Global Vision ASP 3.45x50mm Medium Range Thermal Imaging Monoculars

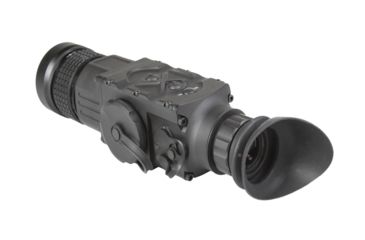

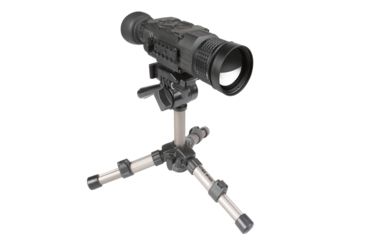

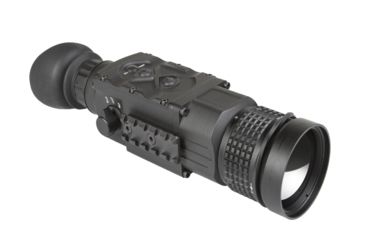

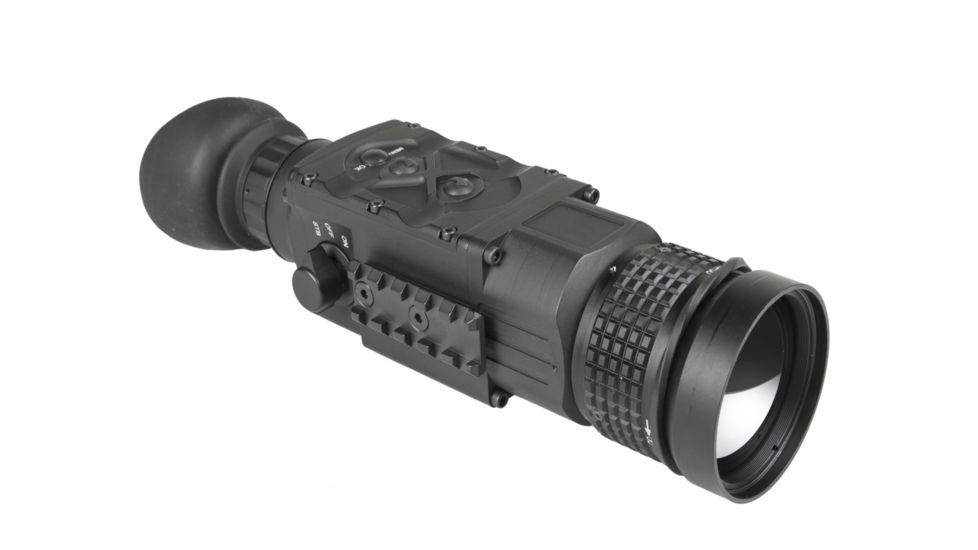

AGM ASP represents the line of the most technologically advanced thermal imaging monoculars currently existing on the market. Based on FLIR Tau 2 VOx microbolometer cores and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users.
This uncooled, long-wave infrared, magnified thermal imaging camera is designed for fulfilling of both day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging monocular, or as a long-range observation tool. The ASP thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional WiFi module for live video streaming and recording is also available.
FLIR Tau 2 17m pitch thermal sensor
Durable and lightweight design
Easy and intuitive operation
Manually adjustable eyepiece and objective lens
External Wi-Fi module
Optional video recording
A wide variety of color palettes
Digital zoom: 1x, 2x, 4x, and 8x
Wireless remote control
Waterproof
Integral MIL-STD-1913 rails on unit for optional accessories
Powered by two standard CR123A batteries
External power supply via micro USB
Features of AGM Global Vision Asp 3.45x50mm Medium Range Thermal Imaging Monocular
- Detector type FLIR Tau 2 640x480 17m Uncooled Microbolometer
- Refresh rate 60 Hz
- Resolution 640x480
- Start up 3 seconds
- Lens system 50 mm; F/1.0
- Optical magnification 2.1x
- Field of view (H X) 14.8 x 11.8
- Digital zoom 1x, 2x, 4x, 8x
- Diopter adjustment range -5 to +5 dpt
- Focusing range 5 m to infinity
- Display (800x600)
- Video output PAL (768x574 pixels)/ NTSC (640x480 pixels)
- Temperature imaging palettes White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
- Interfacing S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack)
- Battery Type Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)
- Battery Life (Operating) Up to 4 hr (optional up to 12 hrs)
- Operating Temperature Range -40C to +50C (-40F to +122F)
- Weight 0.69 kg (1.5 lbs)
- Overall Dimensions 220 72 60 mm (8.6 2.8 2.3 in)
- Package Includes Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual
Package Contents:
- AGM Global Vision Asp 3.45x50mm Medium Range Thermal Imaging Monocular
- Thermal imaging monocular Lens Cloth Soft Carrying Case User Manual
Night Vision Hard Case
Thermal Monocular Accessories
Related Products to AGM Global Vision ASP 3.45x50mm Medium Range Thermal Imaging Monoculars
AGM Global Vision ASP 3.45x50mm Medium Range Thermal Imaging Monoculars Unavailable & Discontinued Models
List of Unorderable Models
- AGM Global Vision ASP Medium Range 3.45x50mm Thermal Imaging Monocular, 336x256 60 Hz Resolution, Black, 3093451006AS51 , MPN: 3093451006AS51 , Code: AG2-HS-AGMAM345-3093451006AS51
