New! Analytic Systems Waterproof IP66 DC Battery Charger 10A $10.00 Off w/ Free S&H

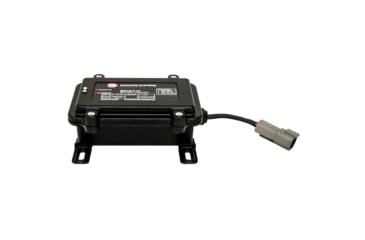

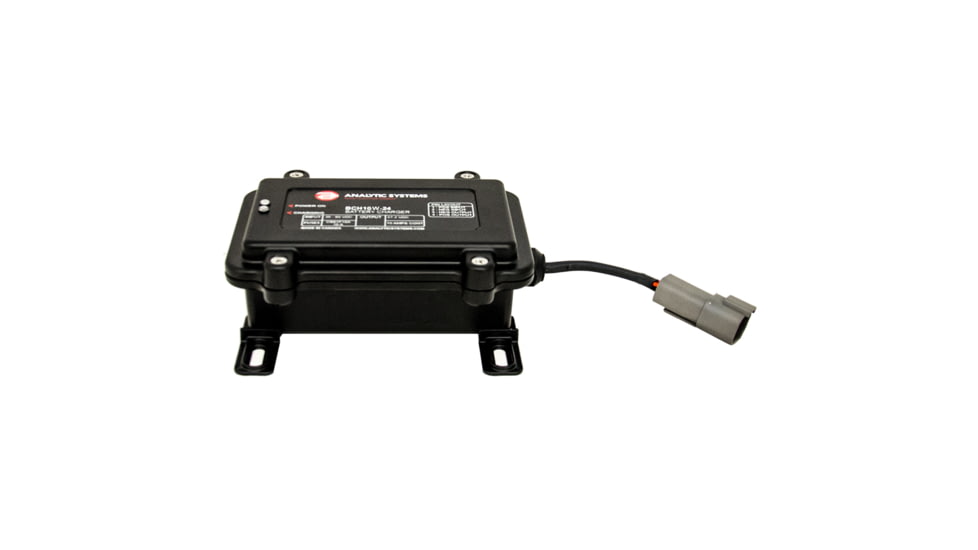

Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, RuggedizedThe BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.The standard BCH10W model offers a Deutsch connector on a pigtailinput/output cable, and the military grade BCH10MW features separatebayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability,higher efficiency (more than 91%), more power (up to 544 watts at 48VDC Out) and minimum size.The BCH10MW is rated for operation from -40 to +55 degrees C andhas been tested and confirmed to meet MIL-STD-461F for radiated andconducted emissions. It is designed to meet MIL-STD-810G for shock andvibration.The unit has reverse input protection, reverse battery connection protection, output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.Features:Watertight O-ring sealed and EMC gasketed enclosureOutput ON and Charging LED indicatorsUp to 80V inputCompact size and easy mountingDeutsch DT04-4P connector on pigtail or MIL connectorsHeavy duty ruggedization with wide temperature rangeCustom output voltages availableCustom connector arrangementsInput and output EMC filtersTwo year warranty (parts and labor)

Package Contents:

• Analytic Systems Waterproof IP66 DC Battery Charger 10A
