ATN NVM14 Night Vision Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Night Vision, Monoculars, International Export Night Vision, Night Vision Monocular yourself to try and find the perfect replacement for you!
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

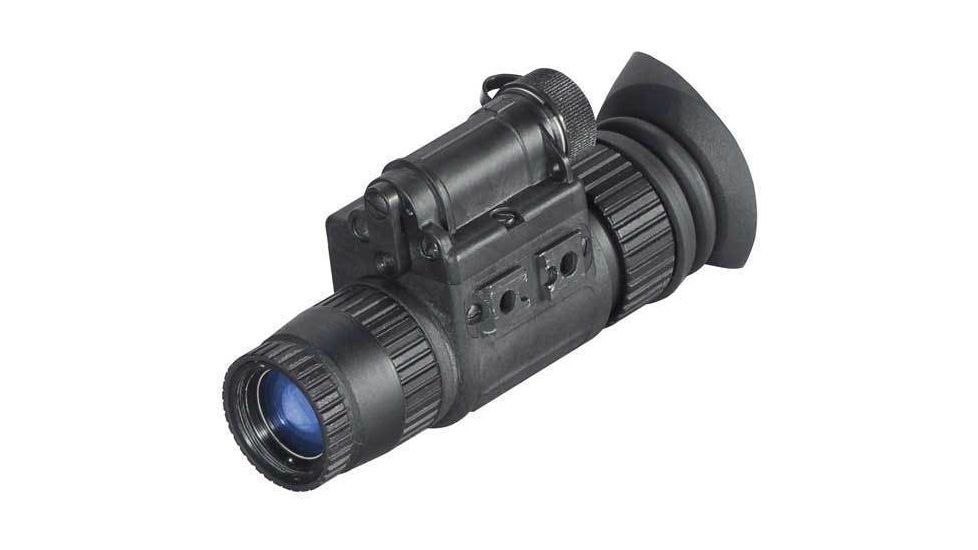

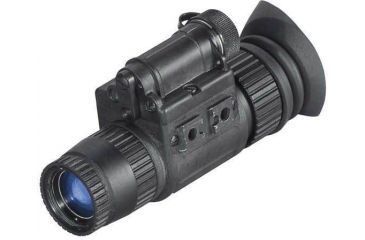

ATN NVM14 NightVision Monocular is a hand-held, head-mounted, helmet-mounted, or weapon-mounted International Export Night Vision that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus. The ATN NightVision Monoculars are also equipped with an infrared light-emitting source. NVM-14 Night Vision monocular by ATN utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the monocular consists of: an objective lens, an image intensifier tube and an eyepiece.![]()
The NVM14 from ATN is a high performance, versatile International Export Night Vision. It is designed to be multifunctional: hand-held as a monocular, head-mounted/ helmet-mounted as a single-eye goggle, or weapon- mounted as a International Export Night Vision. The NVM14 utilizes a single 2nd gen image intensifier tube combined with specially designed optics to provide crisp, clear images under the darkest of conditions. The NVM14 has an optional flip-up headset or helmet mount with an automatic off-feature. The automatic off-feature turns the unit off when it is flipped-up out of the viewing position. These ATN NightVision Devices have a host of additional features such as a built-in IR illuminator with rotary lens to select between IR Spot or Flood Beam as well as a built-in automatic highlight cutoff to protect the image intensifier. The NVM-14 also includes a bright light and low battery warning indicators built into the viewing area of the eyepiece. The NVM14 are compatible with most weapons, IR laser aiming/illuminating devices and standard collimated reflex sights.
| Magnification: | 1X |
| Lens system Element: | F1.2, 25 mm |
| Exit Pupil: | 14 mm |
| Eye Relief: | 25 mm |
| Eye use: | Left or Right |
| FOV: | 40 deg. |
| Range of focus: | 0,25 m to infinity |
| Diopter Adjustment: | -6 to +6 |
| ABC- Automatic Brightness Control: | Cut-off to Protect IIT Yes |
| Bright Light Indicator: | Yes |
| Controls: | Digital |
| Infra-red Illuminator: | Built-in. Rotary Select - Flood & Spot |
| IR Illumination Range: | 20 meters |
| IR Indicator LED: | ON/ |
| Battery: | Low |
| Weight w/ Battery: | 0.34 kg (0.75 lbs) |
| Dimensions: | 120 x 49 x 69 mm (4.7" x 2.8" x 2.0") |
| Environmental rating: | Waterproof 20 m, 1 hr. |
| Operation Temperature: | -40 to +50 C |
| Storage Temperature: | -50 to +70 C |
| Flip Up Headset w/ Automatic System Off: | Yes |
| Battery Life w/o IR: | ON 30 hrs. (AA), 60 hrs. (3 V, Lithium) |
| Battery Life w/ IR: | ON 30 hrs. (3 V, Lithium) Continuous |
| Power supply: | (1) 3 V Lithium, or (1) AA Alkaline |
| Mil-Spec: | 810 Standards Complies |
| Waterproof: | 20 m for 1 hrs. |
