Are there external batt pack options for these? The OEM packs are discontinued - are there aftermarket options? How does ext batt connect? Expert Answer

The Armasight BNVD Gen 3 Dual-Channel Night Vision Goggles currently do not have an option for using external battery packs. These goggles are powered by a CR123 or AA battery that fits into the center of the unit itself.

by Ethan, Gear Expert, January 7, 2022
Can these BNVDs utilize accessories I already have for my psv14s like recorders and magnifiers? Are these returnable if I don't like the quality? Expert Answer

Please email us at techsales@opticsplanet.com for more information.

by Hunter, Gear Expert, January 19, 2022
Customer Reviews
Helpful Positive Review Armasight bnvd by Night stalker, July 9, 2022
Really happy with the quality of this product. Simple to operate and the clarity/contrast with the white phosphorus is almost unbelievable. I have used the green before and it is good but these make picking out images much easier and quicker. These a...
Read More...
1/1 found this helpful
Helpful Positive Review Buy once cry once! by Delta Sierra, Verified Owner, October 17, 2021
I became interested in these units because I was unable to find definitive evidence as to the origin of manufacture from other brands such as ATN and AGM. I reached out to Armasight directly before purchasing and was informed that the components and ...
Read More...
23/24 found this helpful
Read All 2 Reviews

Not Available For Online Ordering

Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles is not available for online ordering. Please call us at +1-800-504-5897 or fill out our and one of our team members will contact you as soon as possible!

3 Models Available
Image Intensifier Tube
All
Search

All International, Government, and Export sales of Armasight products are efficiently managed through our sister company, USIQ.  Offering full export license and international shipping on controlled items is their specialty. Click "Request Quote" for International, Government, and Export ordering and quotation.

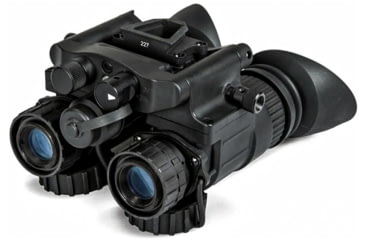

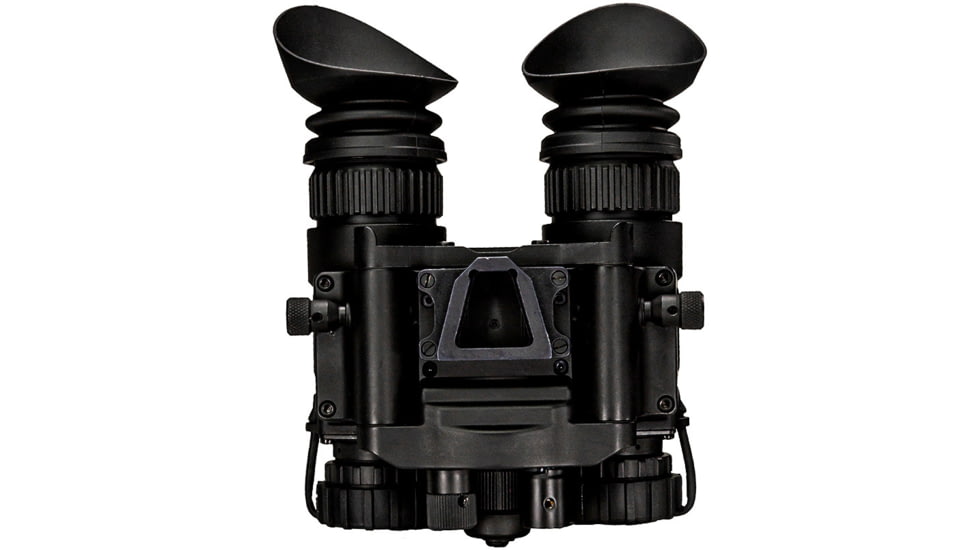

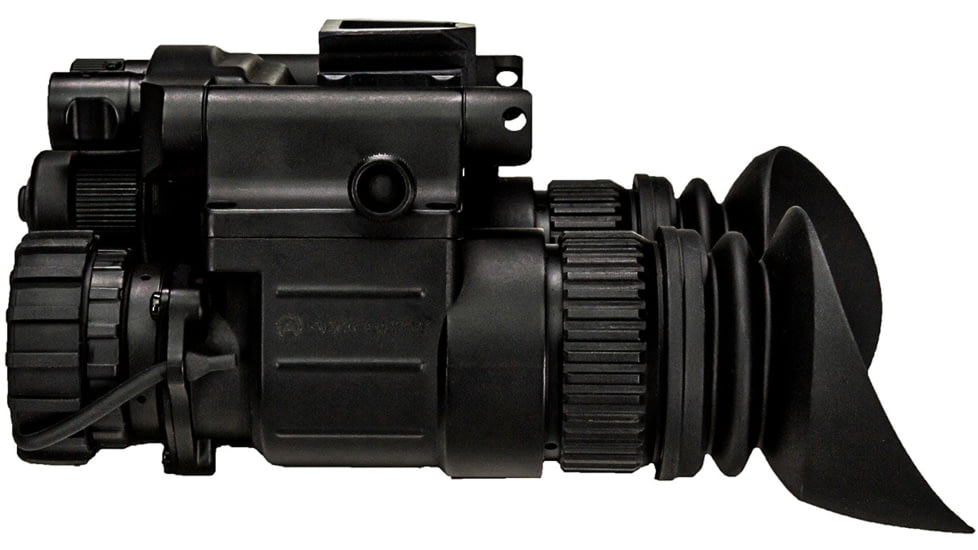

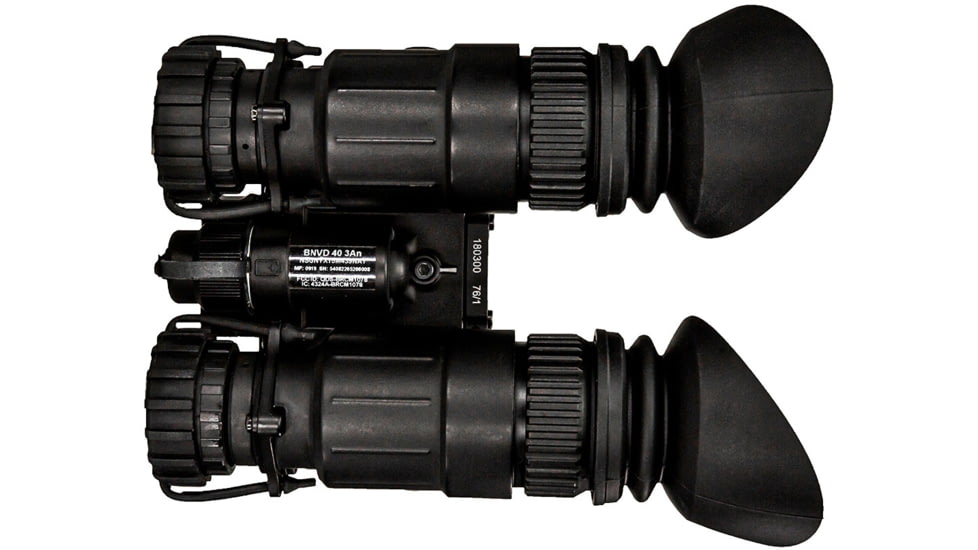

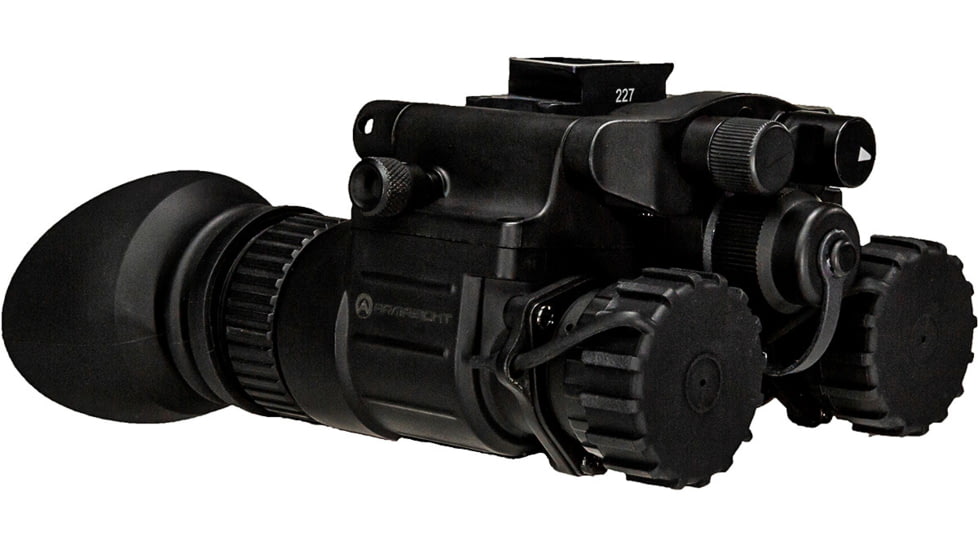

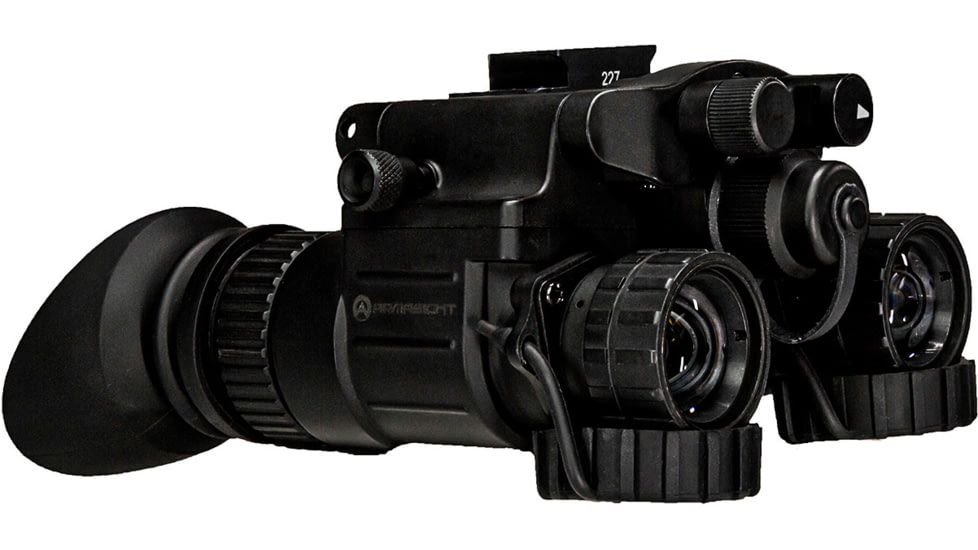

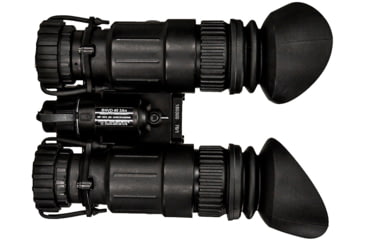

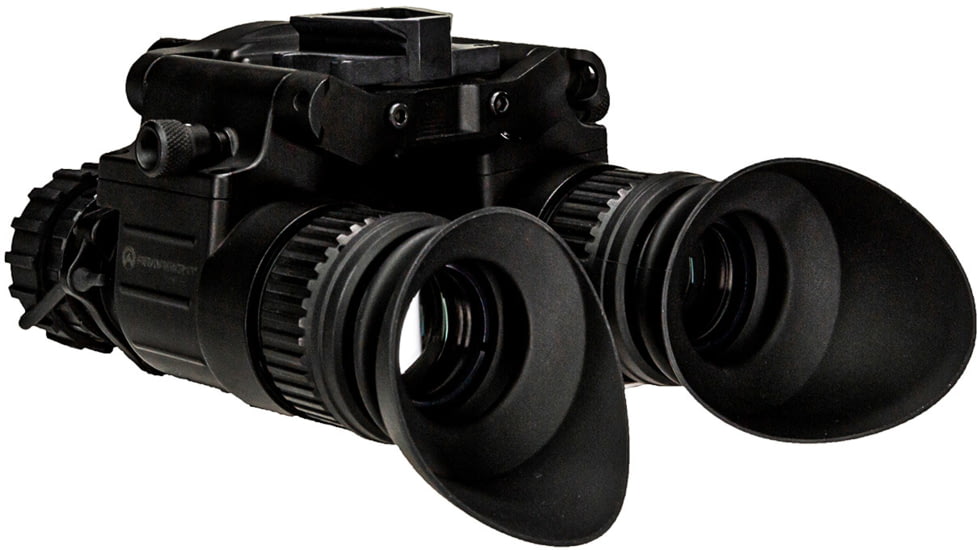

Product Info for Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles

Enhance your tactical utility during low-light operations without limiting your vision by using the Armasight BNVD Gen 3 Dual-Channel Night Vision Goggles. Armasight designed these Night Vision Goggles with a wide field of view (FOV) so that you can track targets without needing to move the binoculars. This helmet-mounted night vision goggle is incredibly versatile and can also be used as a hands-free NV binocular, and you can adjust the tubes to use it as a night vision monocular. With just a simple gain control knob, you can adjust this device as needed for optimal viewing sessions. Grab the Armasight Dual-Tube IR Night Vision Goggle to observe your surroundings in total darkness.image

Specifications for Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles:

Manufacturer: Armasight
Night Vision Generation: 3
Image Intensifier Color: White Phosphor
Eye Relief: 17 mm
Length: 5.4 in
Weight: 1.42 lb, 1.35 lb
Magnification: 1 x
Objective Lens Diameter: 27 mm
Color: Black
Included Accessories: Standard, Bayonet/Horn Interface Shoe, NVG Interface Shoe, Sacrificial Window - 2, Lens Cloth, Demist Shield - 2, Lens Caps, Product Manual, Soft Carrying Case
Additional Features: Manual Gain Control, Gated Power Supply
Condition: New
Finish: Matte
Focus Range: 0.25 m to Infinity
Field of View, Angle: 40 degrees
Battery Type: AA Alkaline, CR123A
Water Resistance Level: IP67
Battery Quantity: 1
System/Lens Resolution: 64 - 72 lp/mm
Diopter Adjustment Range: -6 - 2 dpt

Features of Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles

  • With a 40-degree field of view (FOV), the BNVD provides a large visual field without needing to move the binoculars, and makes it easier to track moving objects
  • Built-in IR illuminator enhances night vision and allows for reading in the dark
  • Built with a tough, ergonomic composite housing that is water and fog-resistant
  • Needing only a single AA battery or one CR123 battery for convenient operation, can run up to 20 hours
  • For hands-free operation, the BNVD includes head and helmet mounting options
  • Can be used as binoculars, a monocular, or goggles, and also stowed out of the way
  • Gated Power Supply.
  • Manual Gain Control.

Package Contents:

  • Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles
  • Lens Caps
  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Sacrificial Window (2)
  • Demist Shield (2)
  • Product Manual
  • Lens Cloth
  • Soft Carrying Case

Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles Orderable Models

List of Orderable Models

Armasight BNVD-40 Dual-Channel Night Vision Binoculars, Gen 3 Max 2000 FOM Ghost White Phosphor IIT, 40 Degree FOV, Black, NSGNYX15M4G9TA1 , MPN: NSGNYX15M4G9TA1 , UPC: 810081911245 , Code: 0A-NVG-X15M529DH1-NSGNYX15M4G9TA1
Armasight BNVD-40 Dual-Channel Night Vision Binoculars, Gen 3 Max 1600 FOM Ghost White Phosphor IIT, 40 Degree FOV, Black, NSGNYX15M4G9NA1 , MPN: NSGNYX15M4G9NA1 , UPC: 810081910613 , Code: 0A-NVG-X15M529DH1-NSGNYX15M4G9NA1
Armasight BNVD-40 Dual-Channel Night Vision Binoculars, Gen 3 Max 1800 FOM Ghost White Phosphor IIT, 40 Degree FOV, Black, NSGNYX15M4G9PA1 , MPN: NSGNYX15M4G9PA1 , UPC: 810081910651 , Code: 0A-NVG-X15M529DH1-NSGNYX15M4G9PA1

Armasight BNVD-40 Gen 3 Dual-Channel Night Vision Goggles Unavailable & Discontinued Models

List of Unorderable Models

Armasight BNVD-40 Dual-Channel Night Vision Binoculars, Gen 3 Max 1800 FOM Green Phosphor IIT, 40 Degree FOV, Black, NSGNYX15M439PA1 , MPN: NSGNYX15M439PA1 , UPC: 810081910644 , Code: 0A-NVG-X15M529DH1-NSGNYX15M439PA1
Armasight BNVD-40 Dual-Channel Night Vision Binoculars, Gen 3 Max 1600 FOM Green Phosphor IIT, 40 Degree FOV, Black, NSGNYX15M439NA1 , MPN: NSGNYX15M439NA1 , UPC: 810081910545 , Code: 0A-NVG-X15M529DH1-NSGNYX15M439NA1
