Armasight NYX14 Flag 5x2x3 Multi-purpose Night Vision Monocular NSMNYG1401F6DA1
Tap Tap to Zoom
Product Discontinued by Manufacturer
Armasight NYX14 Flag 5x2x3 Multi-purpose Night Vision Monocular has been discontinued by Armasight and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Night Vision, Monoculars, Night Vision Monocular yourself to try and find the perfect replacement for you!
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

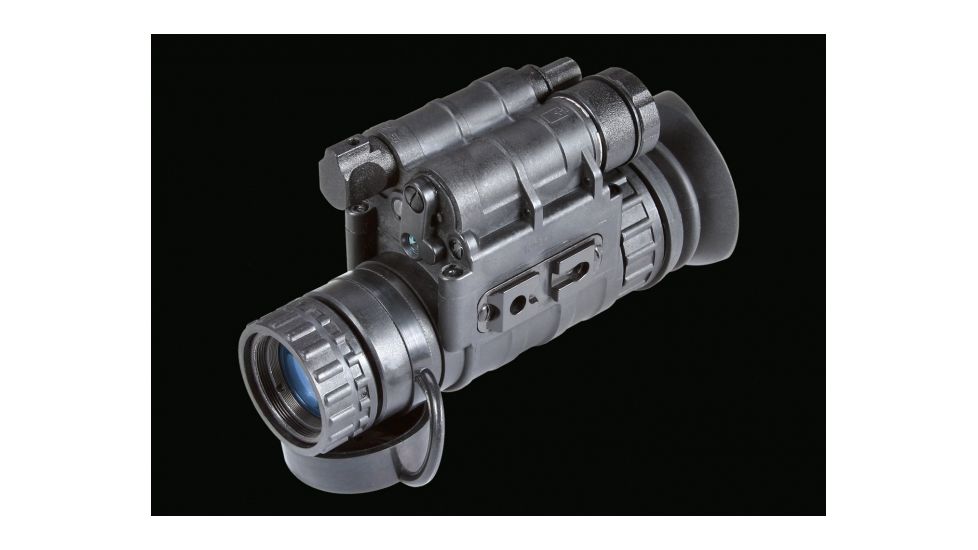

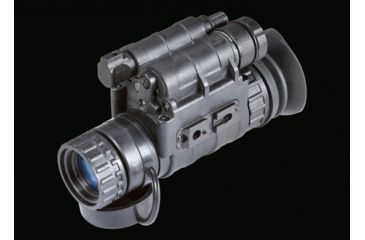

Product Info for Armasight NYX14 Flag 5x2x3 Multi-purpose Night Vision Monocular
The Armasight Nyx-14 FLAG 1X Night Vision Monocular takes performance and optical quality to new levels, bringing you unprescedented performance in a compact multi-use night vision monocular. The Armasight NYX14 Night Scope is built with optics that are equal to or better than current Military issue night vision units, integrated into a tough, compact and ergonomically designed composite housing. This night vision monocular is built to exceed MIL-SPEC-810 specifications, and so the Armasight Nyx-14 Night Vision Device can withstand salt water, rain, high humidity, and extreme temperatures - and still give unsurpassed levels of performance.
The Armasight NYX-14 Waterproof Night Vision Mini-Monocular is equipped with manual variable gain control so that the image brightness level can be selected by the user to adjust for the ambient light level in his area of operations. The Armasight NYX-14 is the only night vision device that will meet the challenges of virtually any mission, and take it all on with ease.
A variety of accessories are available for the Armasight Nyx-14, allowing you to expand its capabilities even further. Optional accessories (sold separately) include 3, 5 and 8X magnification lenses for mid-long range viewing, head or helmet mounts to allow the unit to be worn as a mono-goggle, various different weapon mounts for tactical or hunting use and high powered IR illuminators for long range use.
Specifications for ARMASIGHT NYX14 FLAG Multi-Purpose Night Vision Monocular:
| IT Generation: | FLAG |
| Resolution: | 62-72 lp/mm |
| Magnification: | 1x standard, 3x, 5x, 8x optional |
| Total Darkness IR System: | Yes |
| Multi-Purpose System: | Yes |
| Photocathode Type: | Filmless |
| Battery Life: | 60 hrs |
| Lens System: | F1.2, 27 mm |
| FOV: | 40° |
| Range of Focus: | 0.25 to infinity |
| Diopter Adjustment: | -2 to +6 dpt |
| Controls: | Direct |
| Automatic Brightness Control: | Yes |
| Bright Light Cut-off: | Yes |
| Automatic Shut-off System: | Yes |
| Infrared Illuminator: | Yes (built-in flood lens) |
| IR Indicator: | Yes (in FOV) |
| Low Battery Indicator: | Yes (in FOV) |
| Power Supply: | 1x CR-123 Lithium 3V or 1x AA Alkaline |
| Environmental Rating: | Waterproof / MIL-STD-810 Complies |
| Operating Temperature: | -40 to +50 °C |
| Storage Temperature: | -50 to +60 °C |
| Dimensions: | 140 x 49 x 69 / 5.5 x 1.9 x 2.7 (LxWxH; mm/in) |
| Weight: | 0.4 kg / 0.88 lbs |
| Warranty: | 2 Years |
Features of Armasight NYX-14 Flag Night Vision Scope:
- Compact, rugged design
- Waterproof
- Weapon mountable
- Head or helmet mountable for hands-free usage
- Auto brightness control
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Utilizes single CR123A lithium or AA battery
- Adaptable for use with cameras
- Built-in Infrared illuminator and flood lens
Package Contents:
- Armasight NYX-14 FLAG Night Vision Monocular
- Battery adapter 1x CR123A 3V / 1x 2AA 1,5V
- Lens Cap
- Lens Tissue
- One Lithium Battery CR123A
- Soft carrying Case
- Instruction Manual with Warranty Card
