- Color:
- Gray
- Diopter Adjustment Range:
- -4 - 4 dpt
- Reticle:
- Crosshair
- Illumination Color:
- Red
- Night Vision Generation:
- 3
- Image Intensifier Tube:
- Pinnacle, Minimum 2000 FOM
- Image Intensifier Color:
- White Phosphor
- System/Lens Resolution:
- 64 - 81 lp/mm
- Condition:
- New
- Battery Quantity:
- 2
Code: 0A-NVR-V45PN-NRWVULCAN4G9DX2
MPN: NRWVULCAN4G9DX2
UPC: 810081911115

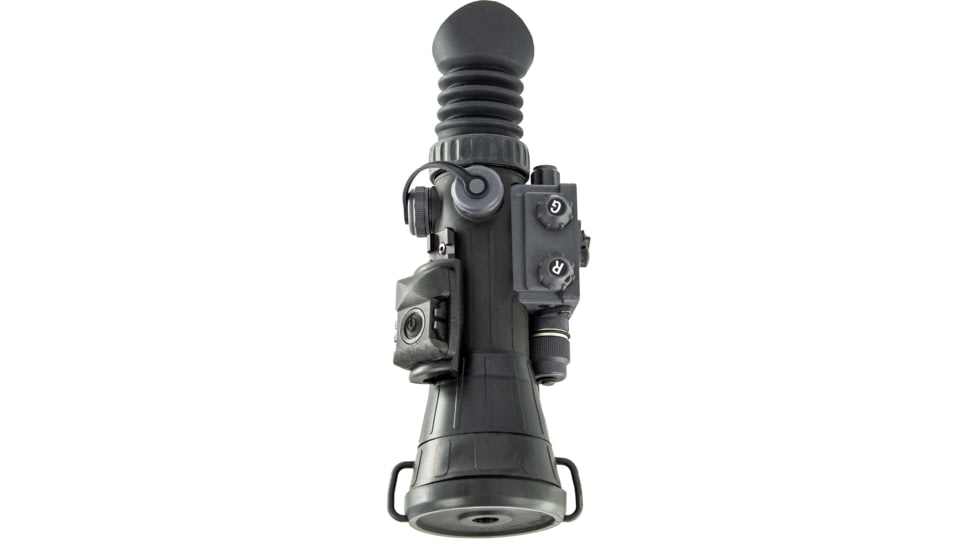

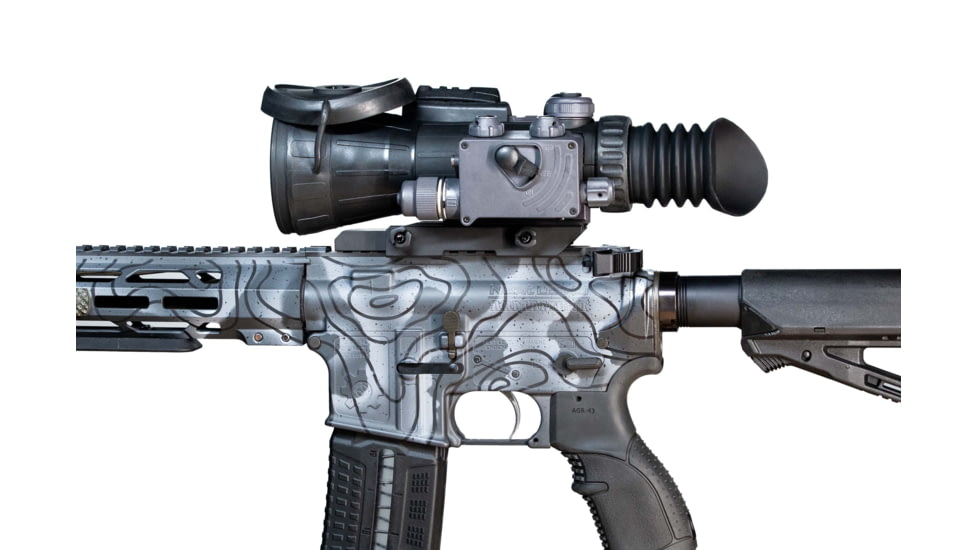

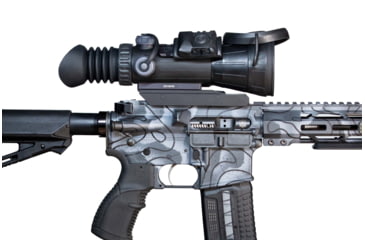

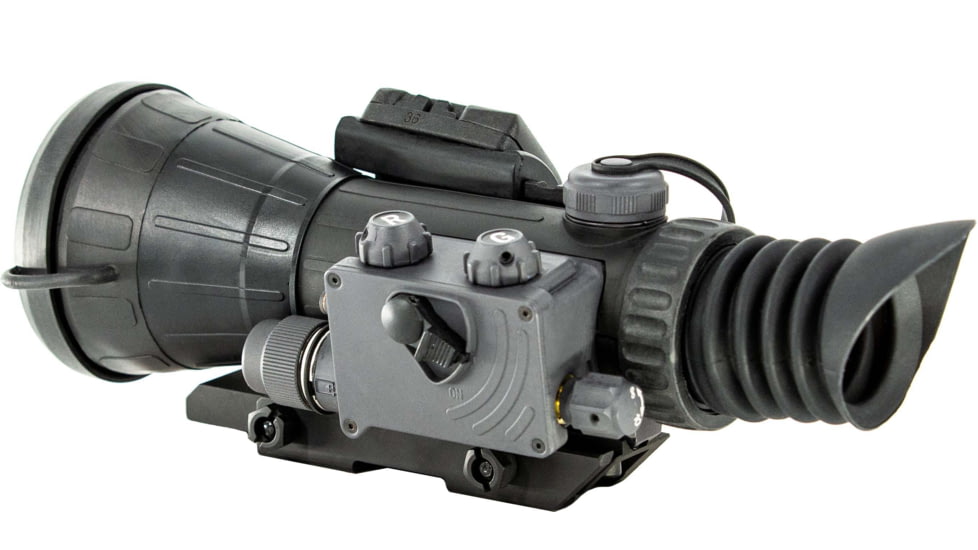

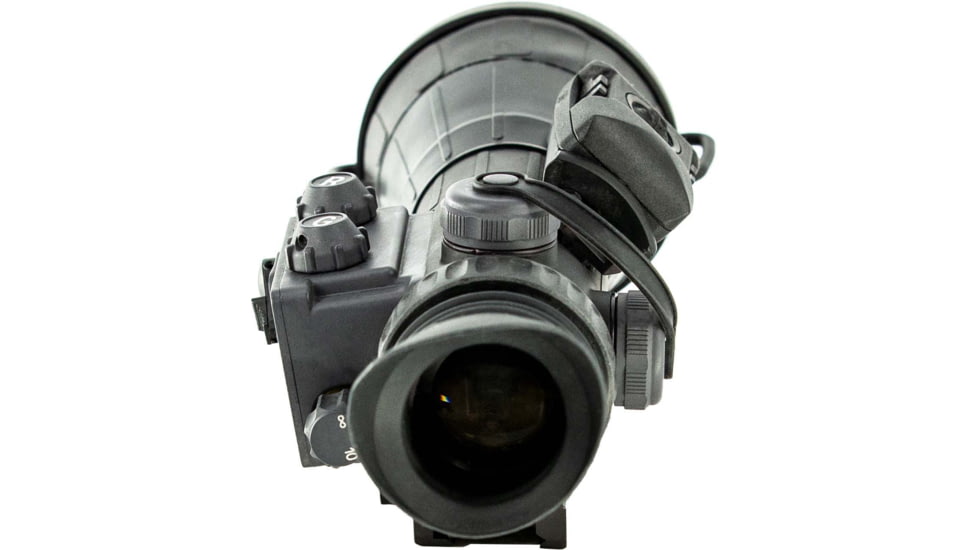

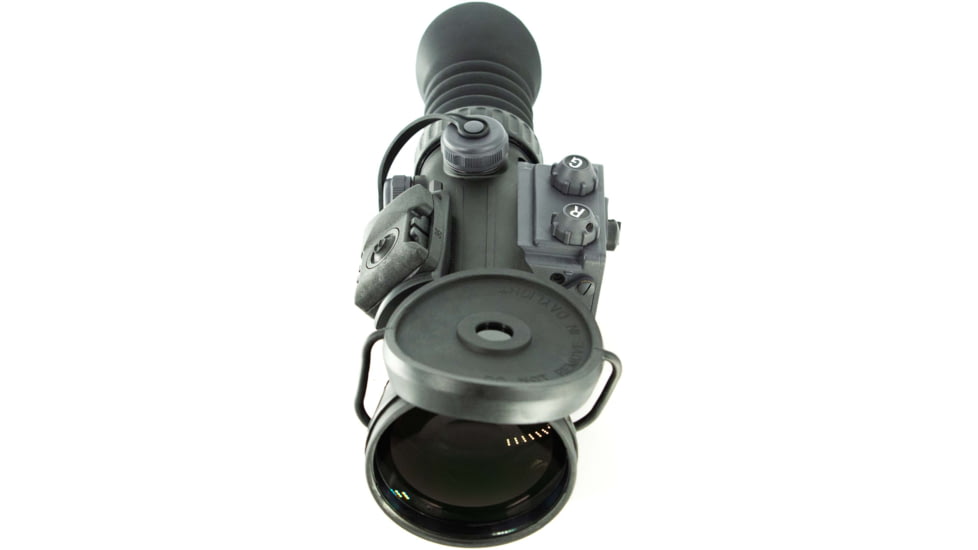

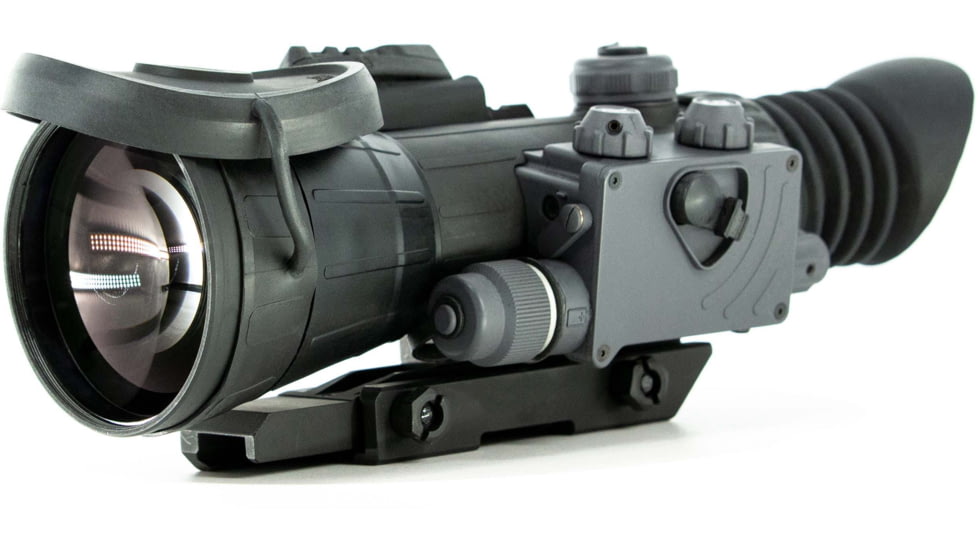

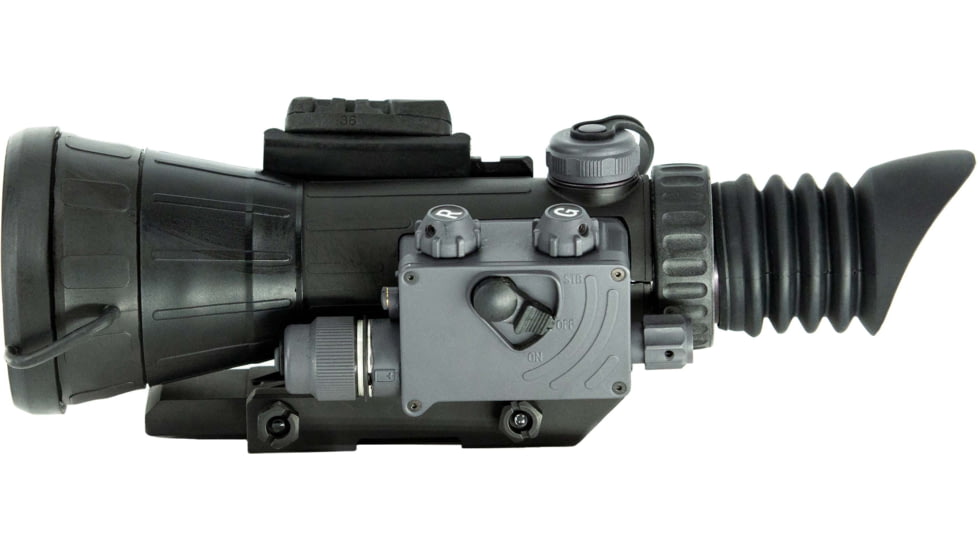

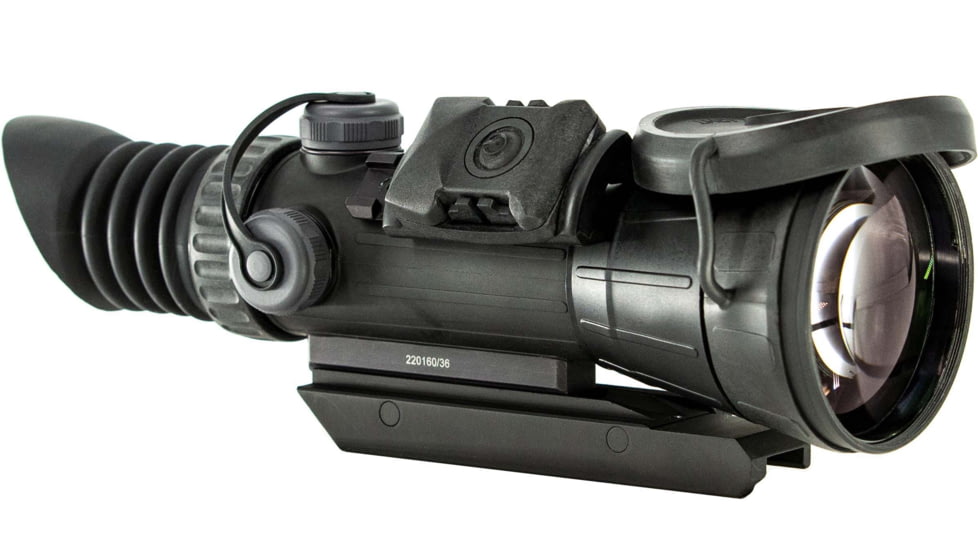

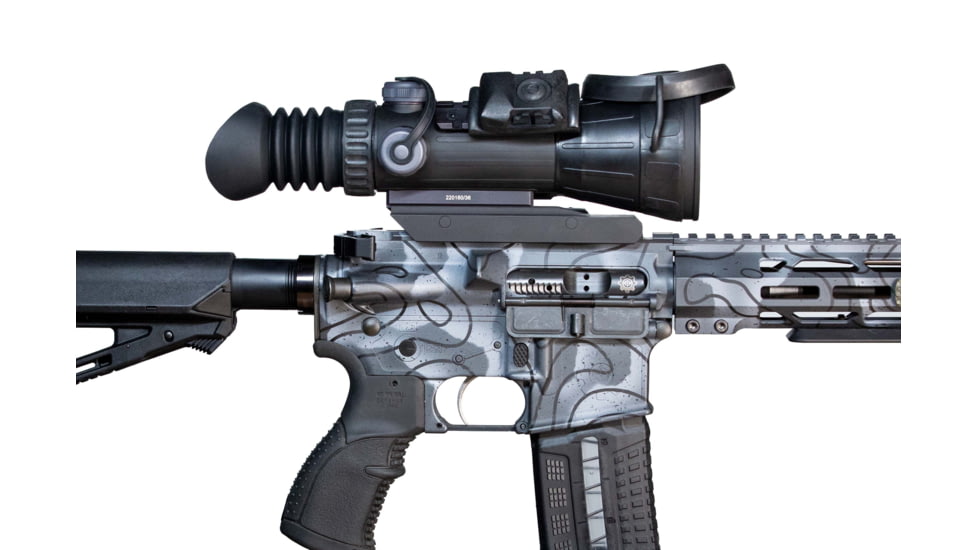

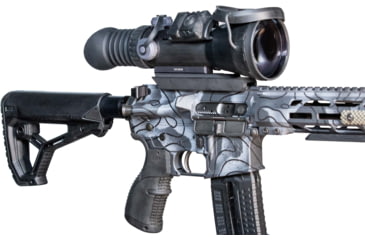

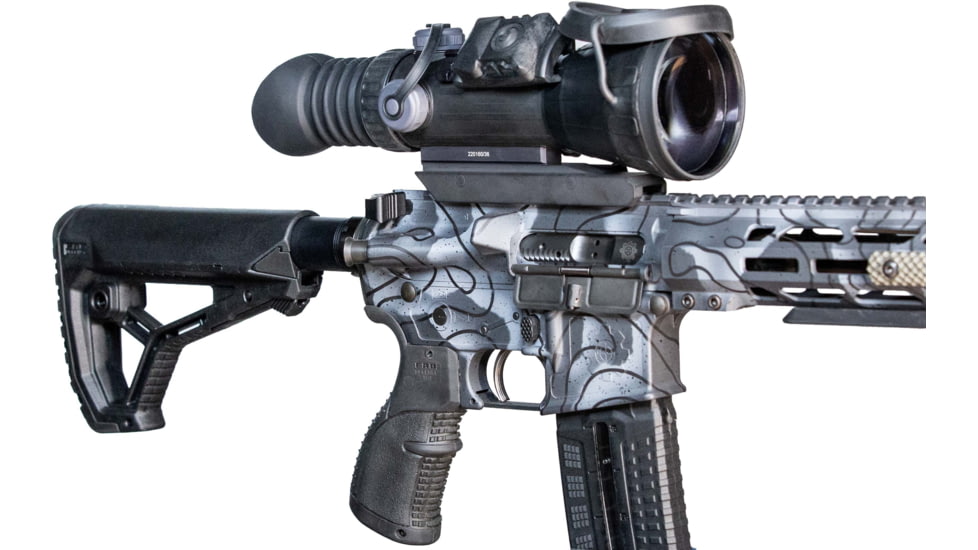

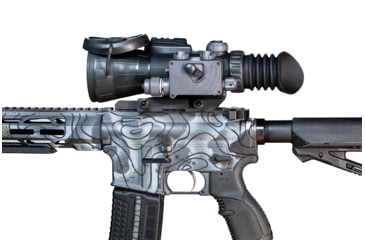

Product Info for Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope
The Armasight Vulcan is a great option if you want a dedicated rifle for use at night. The Vulcan is a 4.5 magnified Compact Night Vision Rifle Scope designed for stand-alone operation without the need for a daytime optic. The Vulcan 4.5x uses a classic crosshairs reticle that lights up red for great contrast against either your green or white phosphor background. To save battery life, the Vulcan utilizes a remote control. This allows your unit to remain powered off until you are ready to line up the shot. The body of the Vulcan features a rail for mounting either of your choosing, an IR Illuminator, or IR lasers. Armasight built the Vulcan to attach to your rifle easily with the use of QD levers, which provide a solid lock up and mount without the use of tools. The rugged body of the Vulcan is durable and rated IP67 waterproof. The lenses of these Night Vision Rifle Scopes are multi coated and the internals are nitrogen purged to prevent fogging. The Armasight Vulcan 4.5x can use either one AA batter that gives you 24 hours of battery life or a single CR123A which gives you 40 hours of battery life.![]()
We understand that night vision can be complex to understand. Armasight breaks it down by separating our devices by field of view, phosphor color, and by grading our tubes in a way that is easier to understand at first glance. Get to know our offering below to decide which tube you need in your next night vision device.
Pinnacle – Looking to step it up a level with the Pinnacle of Gen 3 night vision? This grade is for you. This tube has a minimum 2000 FOM, with no inclusions in zone 1 of your tubes, and absolutely no inclusions sized .009” to .012” found in any of the 3 zones. Designed for a more experienced end user, Pinnacles graded NVGs can be found in the hands of law enforcement, hunters, and discerning citizens.
Pinnacle 2376 - Take all the ingenuity that makes up the Pinnacle and add in what our Military calls “the perfect number”. A minimum FOM of 2376, the perfect ratio of SNR and Resolution per current military standards. These units are used by top law enforcement agencies, elite hunters, and by professionals like yourself that simply put, just want the best.
Specifications for Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope:
| Manufacturer: | Armasight |
| Magnification: | 4.5 x |
| Eye Relief: | 45 mm |
| Battery Type: | AA Alkaline, CR123A |
| Length: | 11.7 in |
| Width: | 3.8 in |
| Height: | 2.8 in |
| Weight: | 2.4 lb, 1.1 kg |
| Range of Detection: | 1100 m |
| Color: | Gray |
| Objective Lens Diameter: | 108 mm |
| Focus Range: | 20 m to Infinity |
| Diopter Adjustment Range: | -4 - 4 dpt |
| Reticle: | Crosshair |
| Illumination Color: | Red |
| Night Vision Generation: | 3 |
| Image Intensifier Tube: | Pinnacle, Minimum 2000 FOM |
| Image Intensifier Color: | White Phosphor |
| System/Lens Resolution: | 64 - 81 lp/mm |
| Exit Pupil: | 7 mm |
| Adjustment Click Value: | 0.5 MOA |
| Field of View, Angle: | 9 degrees |
| Operating Temperature: | -40 - 122 Fahrenheit |
| Battery Life: | 50 hours |
| Water Resistance Level: | IP67 |
| Condition: | New |
| Battery Quantity: | 2 |
| Magnification Type: | Fixed |
| Gun Model: | AR-15 |
| Gun Rail: | Picatinny |
| Mount Type: | Picatinny |
| Manual Gain: | Yes |
Features of Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope:
- Wide array of IIT configurations
- Shock protected, all-glass IR transmission multicoated optics
- Bright light cut-off
- Illuminated reticle with brightness adjustment
- Variable gain control (optional)
- Detachable long-range infrared illuminator
- Waterproof design
- Powered by a single CR123A Lithium or AA battery
- Low battery indicator
- Quick-release mount
- Mounts to standard Weaver rails
Package Contents:
- Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope
- Lens Cap
- Eyecup
- Battery Adapter
- IR850-XLR Long Range IR Illuminator
- Remote Control
- Product Manual
- Lens Cloth
- Soft Carrying Case
Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope Orderable Models
List of Orderable Models
- Armasight Vulcan 4.5x Magnification Night Vision Riflescope, Powered By Pinnacle Gen 3 Ghost White Phosphor IIT, Gray, NRWVULCAN4G9DX2 , MPN: NRWVULCAN4G9DX2 , UPC: 810081911115 , Code: 0A-NVR-V45PN-NRWVULCAN4G9DX2
Armasight Vulcan 4.5x108mm Pinnacle Gen 3 IIT Night Vision Rifle Scope Unavailable & Discontinued Models
List of Unorderable Models
- Refurbished, Armasight Vulcan 4.5x Magnification Night Vision Riflescope, Powered By Pinnacle Gen 3 Ghost White Phosphor IIT, Gray, NRWVULCAN4G9DX2 , MPN: NRWVULCAN4G9DX2-REARMED , Code: 0A-NVR-V45PN-NRWVULCAN4G9DX2-REARMED
- Armasight Vulcan Night Vision Rifle Scope, Gen3, 4.5x, Pinnacle, White Phosphor IIT, Gray, NRWVULCAN4G9DH2 , MPN: NRWVULCAN4G9DH2 , UPC: 810081911559 , Code: 0A-NVR-V45PN-NRWVULCAN4G9DH2
- DEMO, Armasight Vulcan Night Vision Rifle Scope, Gen3, 4.5x, Pinnacle, White Phosphor IIT, Gray, NRWVULCAN4G9DH2 , MPN: NRWVULCAN4G9DH2-DEMO , Code: 0A-NVR-V45PN-NRWVULCAN4G9DH2-DEMO
