Product Discontinued by Manufacturer
ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 NVMPPV143A2 (13073 / 13083) has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Night Vision, Monoculars, Night Vision Monocular yourself to try and find the perfect replacement for you!
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

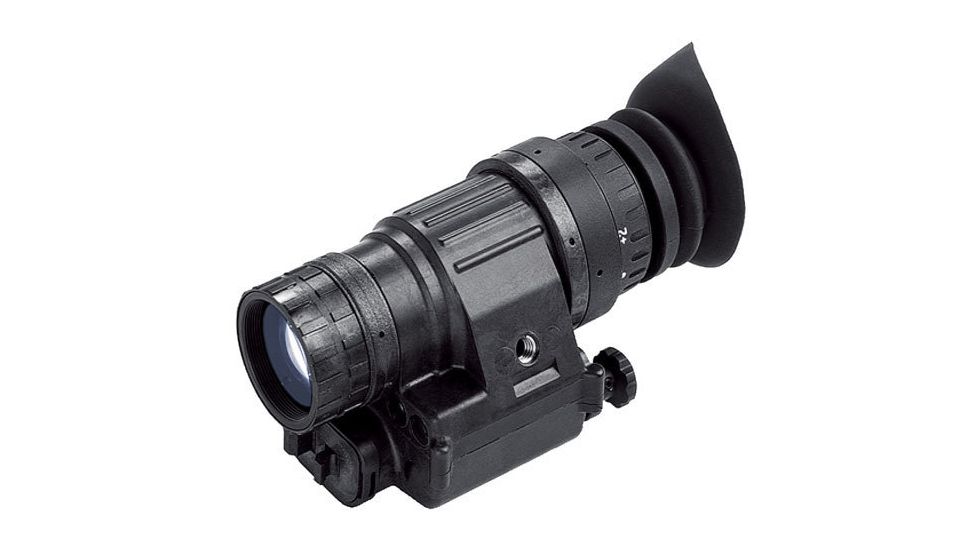

Product Info for ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 NVMPPV143A2 (13073 / 13083)
ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 NVMPPV143A2 (13073 / 13083) is a Generation Three Night Vision Devices (NVD) which is designed for the most demanding of night time applications. Based on Night Vision Monocular units used by the U.S. military, the ANT PVS-14 Generation III Night Vision scope Monocular 64 lp/mm features the most advanced Gen 3 image intensifier tube with a variable gain control to achieve the highest quality image resolution for varying light conditions. The extremely lightweight and versatile Generation 3 PVS 14 Night Vision Scope Monocular can be head-mounted, handheld or camera adapted. ATN Night Vision product such as ATN PVS-14 comes factory new and backed by 2-year warranty the ATN PVS-14 NightVision Monocular is the ideal NVD (Night Vision Monocular) for all Day or Night applications.
Features of ATN PVS14-3A Night Vision Monocular Gen 3 Alpha 64 lp/mm:
- Multifunctional: Hand-held or head-mounted as single eye goggle
- Variable Gain Control for enhanced performance in altering light conditions
- Camera and video adaptable
- Two Years Warranty
Specifications for ATN PVS14-3A Night Vision Monocular Gen 3 Alpha 64 lp/mm:
| Generation: | 3 Alpha | |
| Resolution, lp/mm: | 13073: 64
13083: 64-72 |
|
| Brightness Gain: | Adjustable from 25 to more than 3000 fL/fL | |
| Magnification: | 1x | |
| Field of View: | 40° | |
| Objective Lens: | f/1.2 | |
| Eyepiece Lens: | EFL 26 mm | |
| Diopter Adjustment: | +4 to -6 | |
| Range of Focus: | 25cm to infinity | |
| Voltage Required: | 2.7 - 3.0 Volts | |
| Battery Type: | Two (2) AA size | |
| Battery Life: | Approx. 50 hrs at room temp | |
| Weight: | 13.8oz (392 grams) | |
| Dimensions: | 4.5" (L) x 2" (W) x 2.25" (H) | |
| Operating Temperature: | -51°C to +49° C | |
| Storage Temperature: | -51°C to +49° C | |
| Warranty: | Two (2) Years | |
Package Contents:
- ATN PVS14-3A Night Vision Monocular Gen 3 Alpha 64 lp/mm
- Head Mount Assembly - Allows for hands-free operation. Accommodates the user's head size and eye positioning.
- Brow Pads - Changeable pads for secure head mount fit.
- Helmet/Head Mount Adapter -Allows the user to position the monocular in front of either eye.
- Eye Cup - Prevents the emission of stray light or facial reflections.
- System Soft Carrying Case -Provides convenient storage of NQ PVS-14 and accessories.
- Unit Soft Carrying Case - Provides convenient storage of NQ PVS-14.
- Shoulder Strap - Attaches to the NQ PVS-14 carrying case for easy portability.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Day Light Filter - Filters excessive light. Protects objective lens from the elements.
- Diopter Lens Cap - Protects diopter lens from the elements.
- Operator's Manual - Instructional users guide.
Related Products to ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 NVMPPV143A2 (13073 / 13083)
ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 NVMPPV143A2 (13073 / 13083) Unavailable & Discontinued Models
List of Unorderable Models
- ATN PVS-14 Gen.3 Night Vision Monocular NVMPPV14302 , MPN: NVMPPV14302 , UPC: 658175130734 , Code: AT-NVM-PVS14-3-NVMPPV14302
- ATN PVS14-3A Night Vision Monocular Gen 3 Alpha 64 lp/mm , MPN: NVMPPV143A2 , UPC: 658175130833 , Code: AT-NVM-PVS14-3-NVMPPV143A2
