Product Discontinued by Manufacturer
ATN PS-23 Gen. 2+ Night Vision Goggles has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Night Vision, Night Vision Goggles (NVG) / Binoculars yourself to try and find the perfect replacement for you!
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

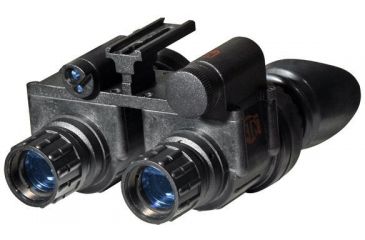

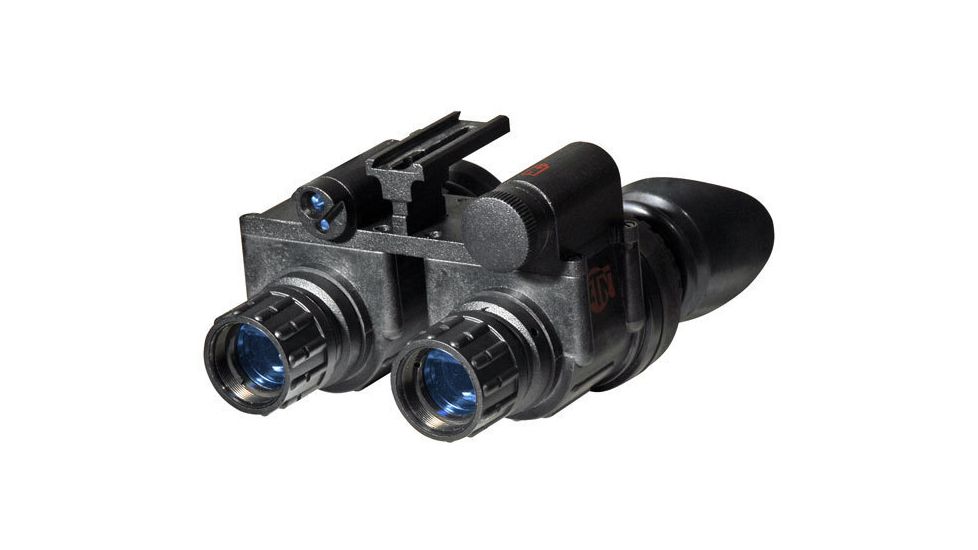

Product Info for ATN PS-23 Gen. 2+ Night Vision Goggles
The ATN PS-23 Gen.2+ Night Vision Goggles is one of the most versatile Night Vision Goggles devices available. This unit from ATN can be handheld, head-mounted for hands free usage, it is camera / camcorder adaptable, and can be 3x Night Vision Goggles. The intergrated IR illuminator enhances the ability of the user to read maps and operate in confined, zero light areas. The PS23 is available with several image intensifier options to meet a wide array of specification requirements. The PS 23 night vision goggles is a complex opticoelectronic system for individual use. The device consists of the objective lens assembly, eyepiece and the body. The body contains an image intensifier tubes assembly with an integrated high voltage power source and the Night Vision Goggles housing.
ATN PS-23 Gen. 2+ Night Vision Goggles are available in the following models:
- NVGOPS2320: ATN PS23-2 Night Vision Goggles
- NVGOPS23C0: ATN PS23-CGT Night Vision Goggles
- NVGOPS23H0: ATN PS23-HPT Night Vision Goggles
Specifications for ATN PS-23 Night Vision Goggles:
| ATN PS-23 Gen.2+ Night Vision Goggles | ||
|---|---|---|
| Magnification | 1X (optional 3X) | |
| Detection range | 200 m/y | |
| Recognition range | 150 m/y | |
| Lens System | 24 mm; F1:1.2 | |
| Field of view | 40° | |
| Interpupillary adjustment | 55mm-72mm | |
| Resolution, lp/mm |
PS23-2: 36-45 PS23-CGT: 45-54 PS23-HPT: 55-64 |
|
| Range of Focus | 0.25m to infinity | |
| Power Supply | 3 volt battery (CR123A) | |
| Battery Life | 35 hours (10 hours with IR illuminator) | |
| Operating Temp. | -40°C to +40°C | |
| Waterproof | 20 m for 1 hour | |
| Dimensions | 151x85x120 mm (6" x 3.4" x 4.7") | |
| Weight | 0.7kg (1.5 lb) | |
Features of ATN PS-23 Night Vision Goggles:
- High Quality light intensifier tube
- Super fast lens system provides the user with a clear and sharp image
- Built-in Infra Red illuminator lets you see even in total darkness
- 3x lenses (optional)
- Adjustable Flip-up headmount for hands free use
- IR-on and Low Battery indicators
- Single switch knob operation
- Automatic brightness control for high-light protection , unit will turn off automatically if exposed to excessive light for more than 10 seconds. If the unit is move away from the bright light, it will reactivate automatically
- Rugged and versatile design
- Camera/camcorder-adaptable
- Uses one 3V lithium battery
- Environmental: Water resistant
- Lifetime warranty
Package Contents:
- ATN PS-23 Gen.2+ Night Vision Goggles
Related Products to ATN PS-23 Gen. 2+ Night Vision Goggles
ATN PS-23 Gen. 2+ Night Vision Goggles Unavailable & Discontinued Models
List of Unorderable Models
- ATN PS-23 Gen2plus Night Vision Goggles NVGOPS2320 , MPN: NVGOPS2320 , Code: AT-NVG-PS23-2-NVGOPS2320
- ATN PS-23 Gen2plus Night Vision Goggles NVGOPS23C0 , MPN: NVGOPS23C0 , Code: AT-NVG-PS23-2-NVGOPS23C0
- ATN PS-23 Gen2plus Night Vision Goggles NVGOPS23H0 , MPN: NVGOPS23H0 , Code: AT-NVG-PS23-2-NVGOPS23H0
