ATN Heat Seeking OTS-X-S614 Scope - 640x480, 14mm, 9Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging, Thermal Imaging Monoculars yourself to try and find the perfect replacement for you!
Product Info for ATN Heat Seeking OTS-X-S614 Scope - 640x480, 14mm, 9Hz

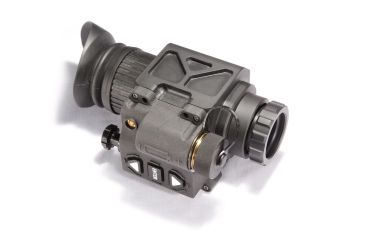

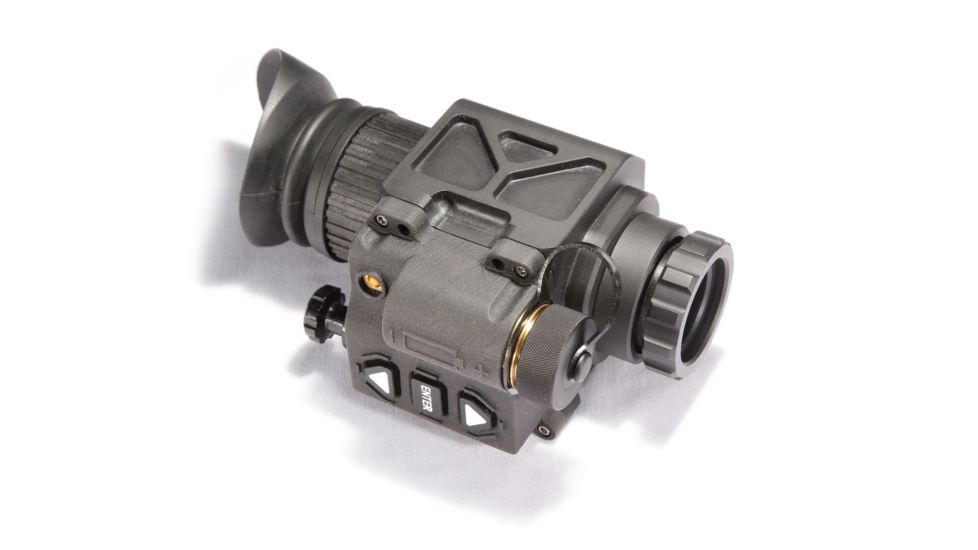

The ATN OTS-X-S614 .5x Heat Seeking Thermal Monocular TIMNOTSXS614 has been designed to make sure you have the highest quality thermal imaging device for all of your shooting needs. The ATN OTSX S614 9Hz Thermal Imaging System is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Heat Seeker Monocular from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480 resolution. One of the most unique features of the ATN S614 OTSX Heat Seeking Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.
Specifications for ATN OTS-X-S614 .5X (9Hz) Thermal Imaging Viewer:
Sensor (microbolometer):
640 x 480
Type:
Uncooled
Material:
Vanadium oxide (VOx)
Image Size (output resolution):
800x600
Frame rate:
9 Hz
Video output:
Analog RS-170
Lens:
14 mm
Display:
Color OLED matrix, SVGA< 800x600
Thermal Sensitivity:
<50mK
Spectral Response:
7-14 um
Field of View:
45°
Eye Relief:
27 mm
Diopter Adjustment:
-1.5
Optical Magnification:
0.5X
E-Zoom:
1X, 2X, 4X
Human Detection:
500 m
Human Recognition:
225 m
Human Identification:
135 m
Vehicle Detection:
1100 m
Vehicle Recognition:
495 m
Vehicle Identification:
300 m

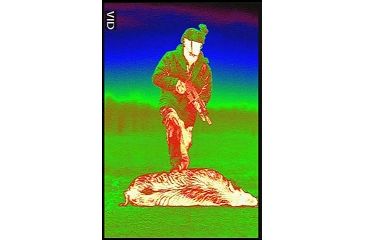

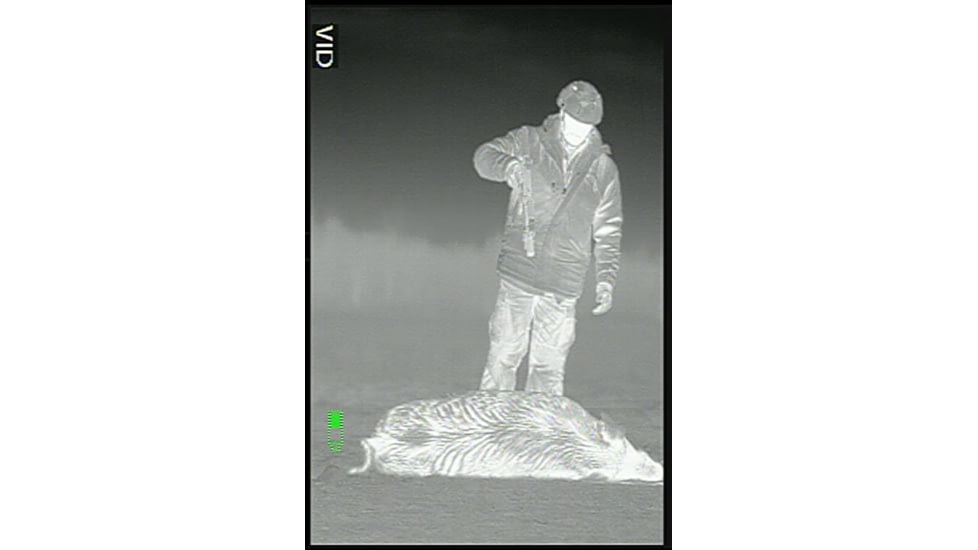

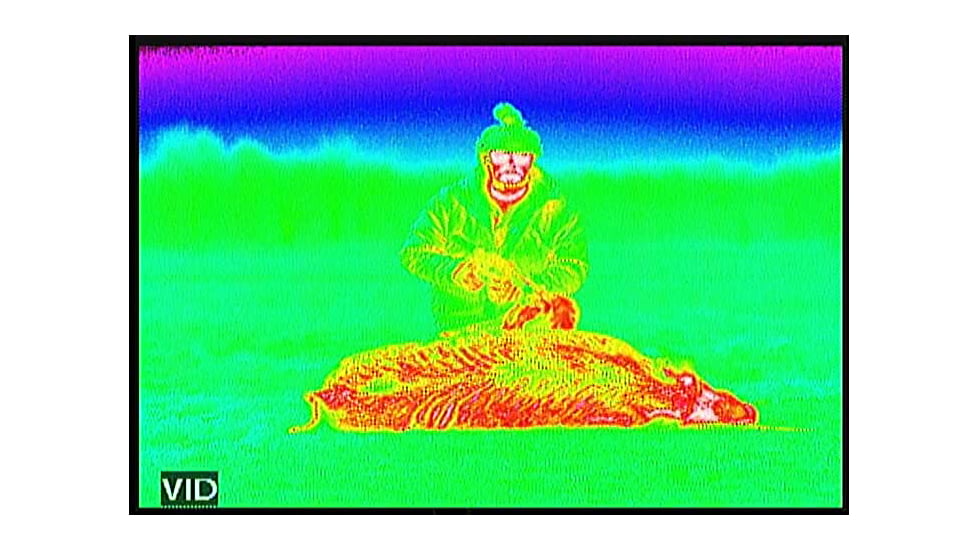

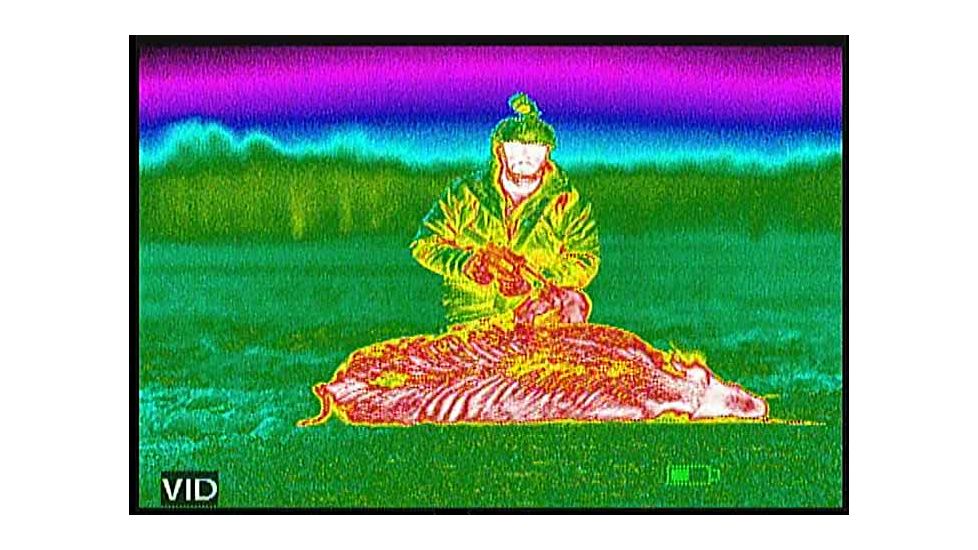

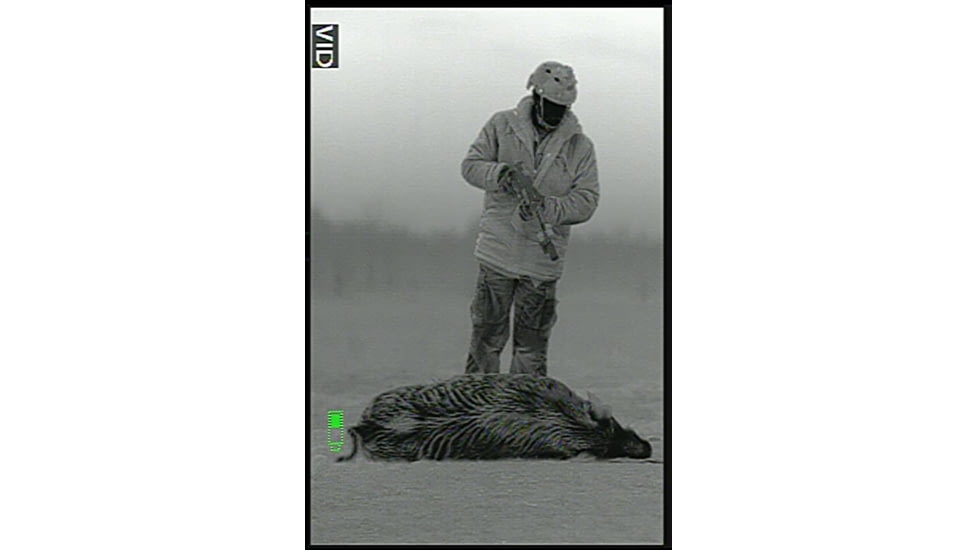

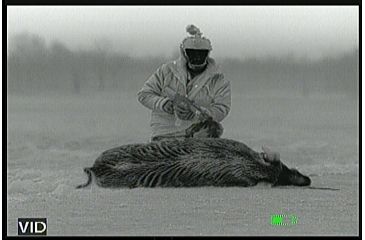

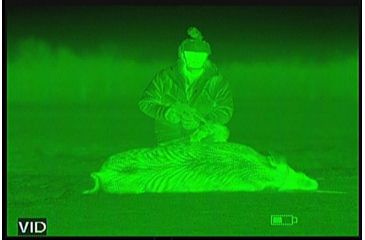

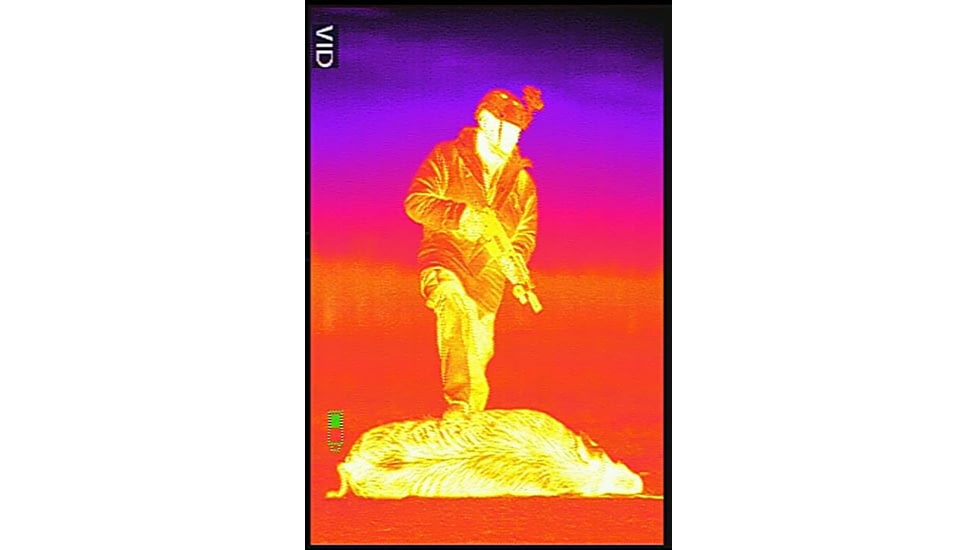

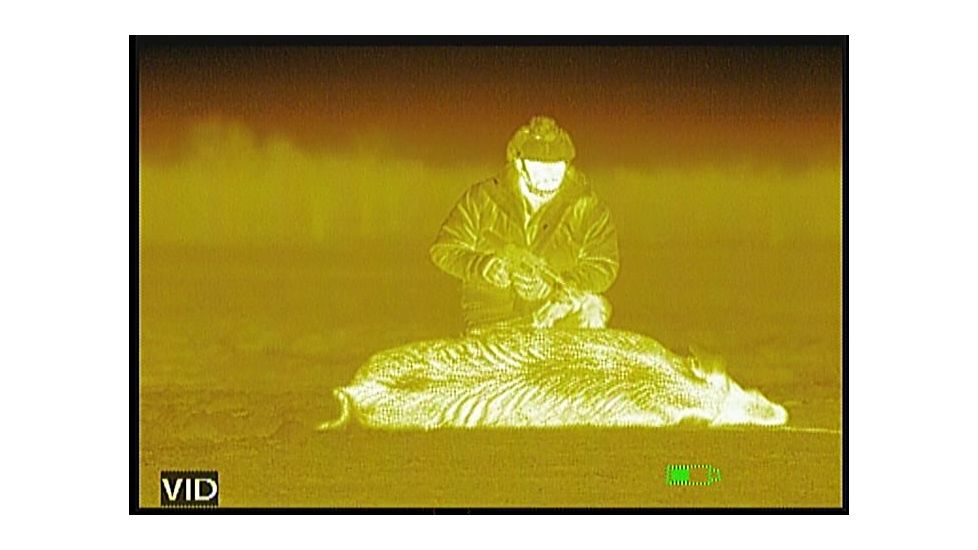

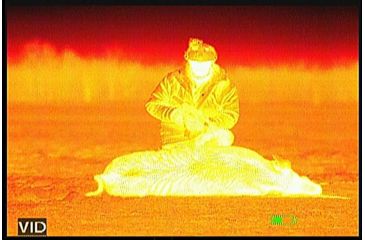

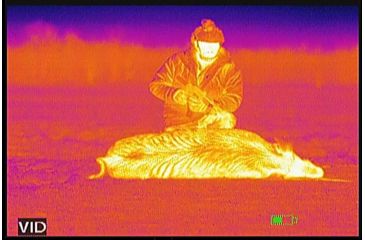

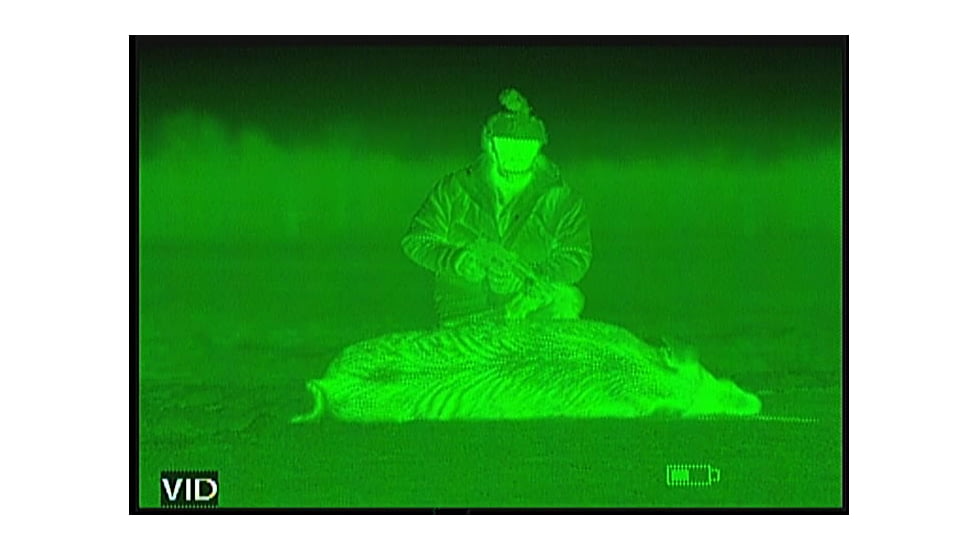

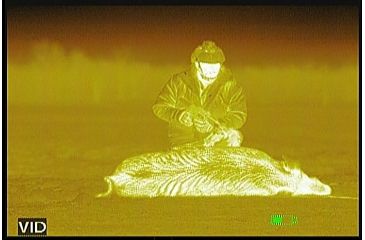

Polarity control:

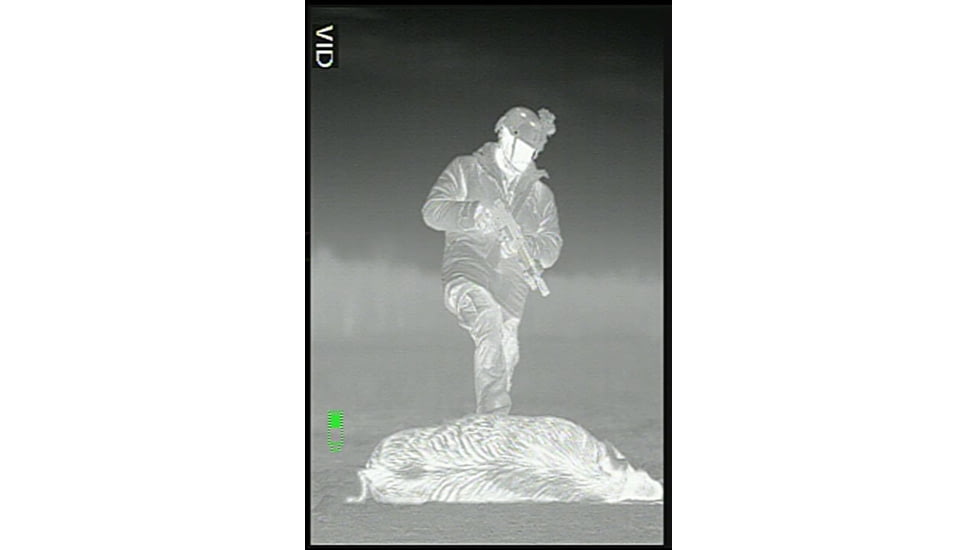

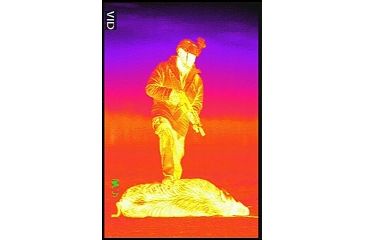

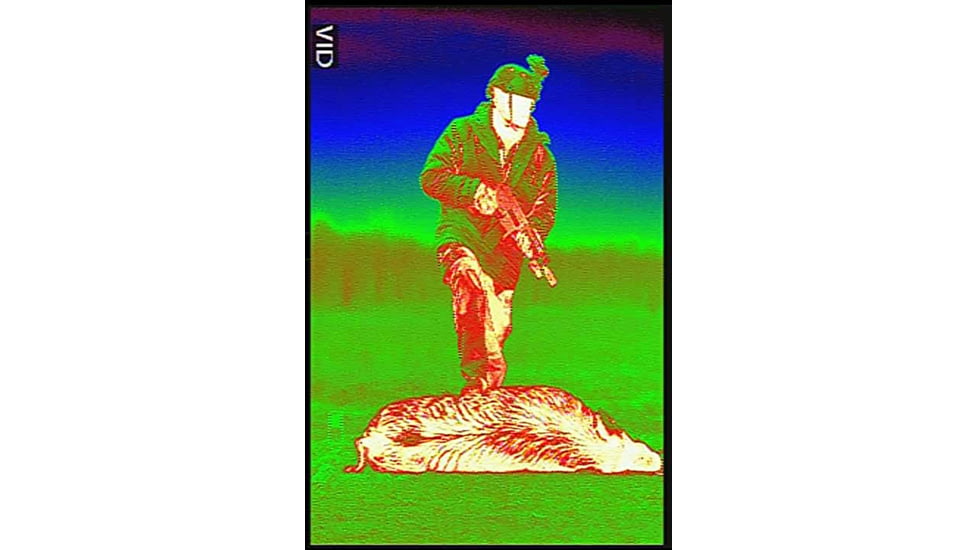

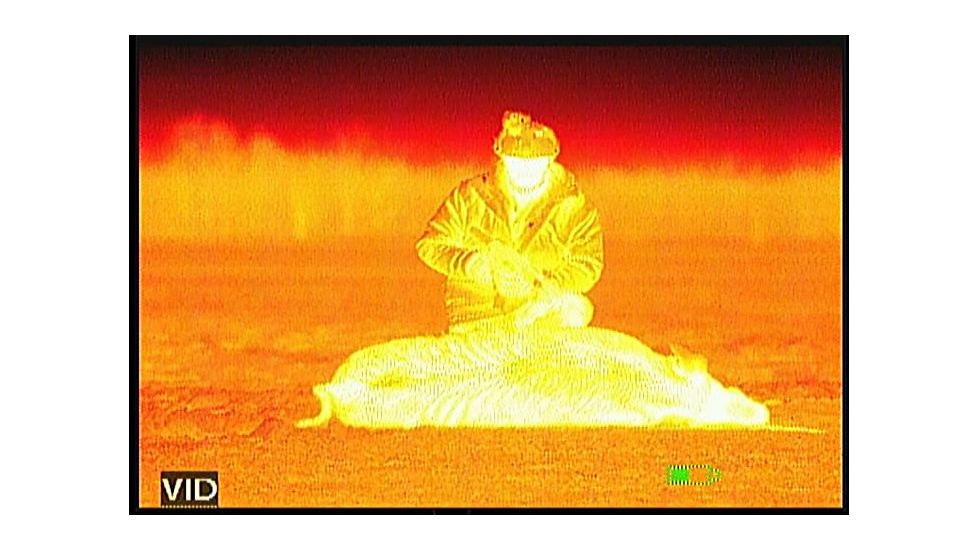

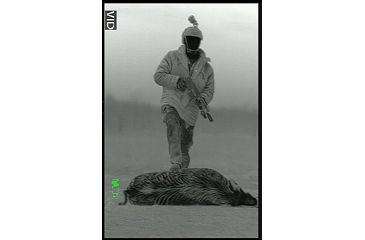

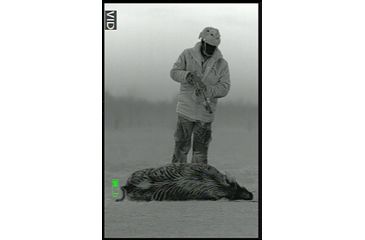

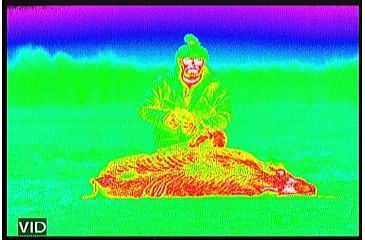

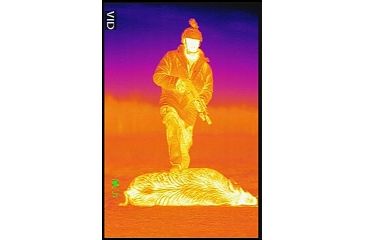

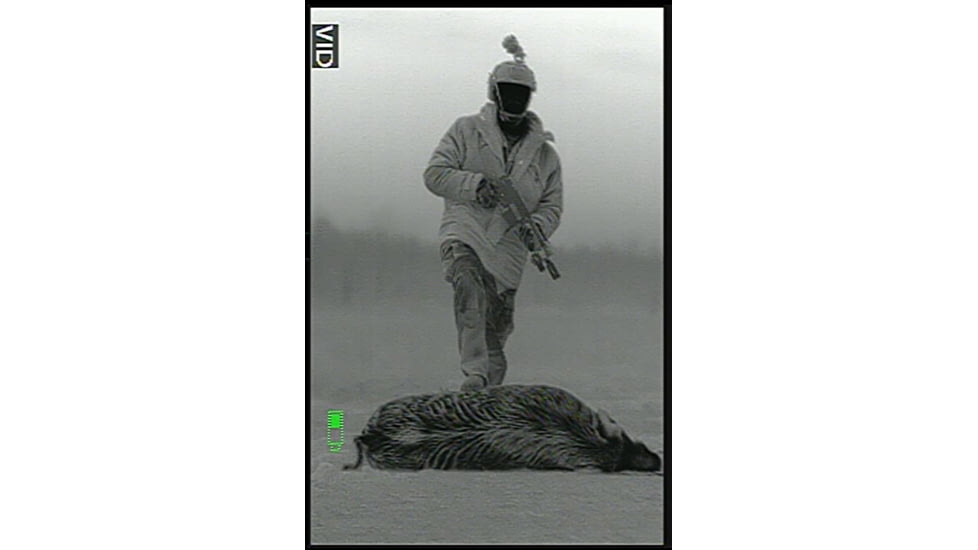

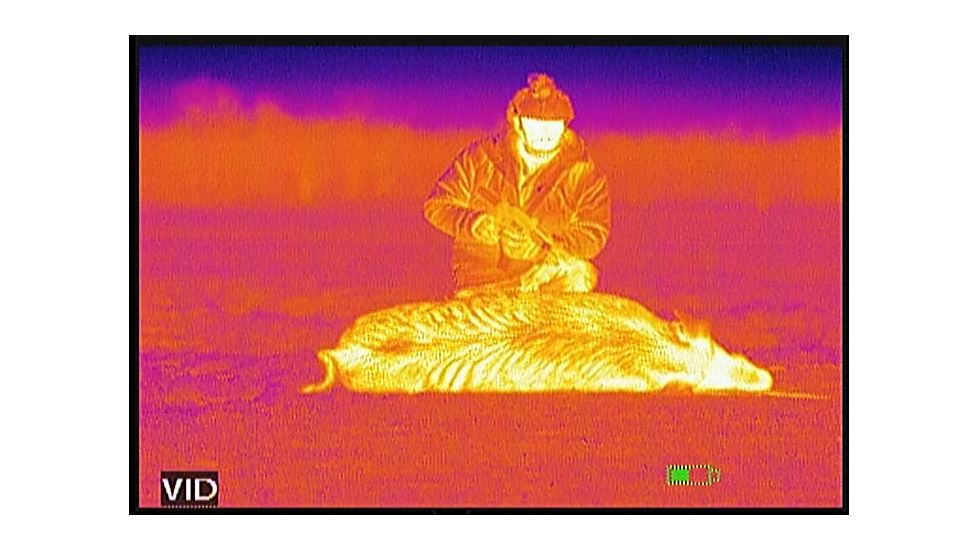

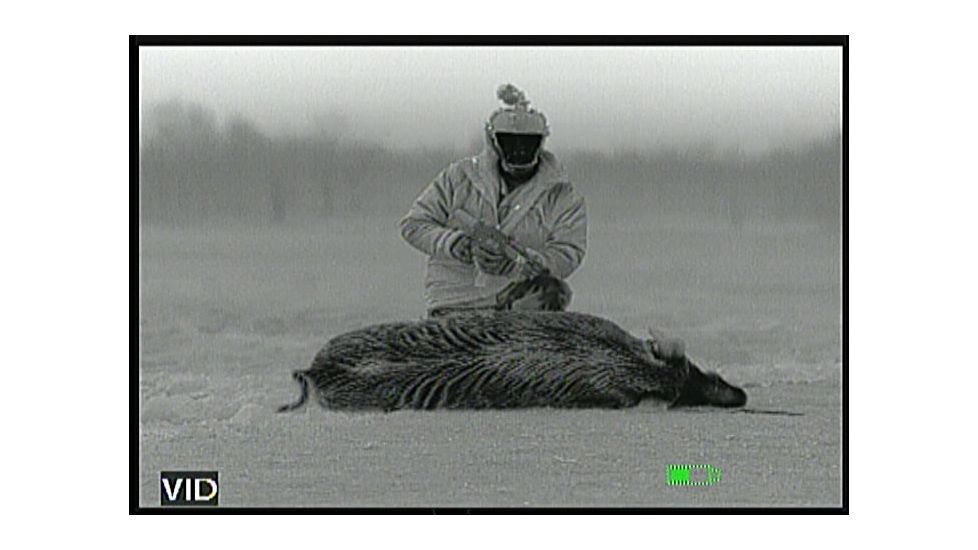

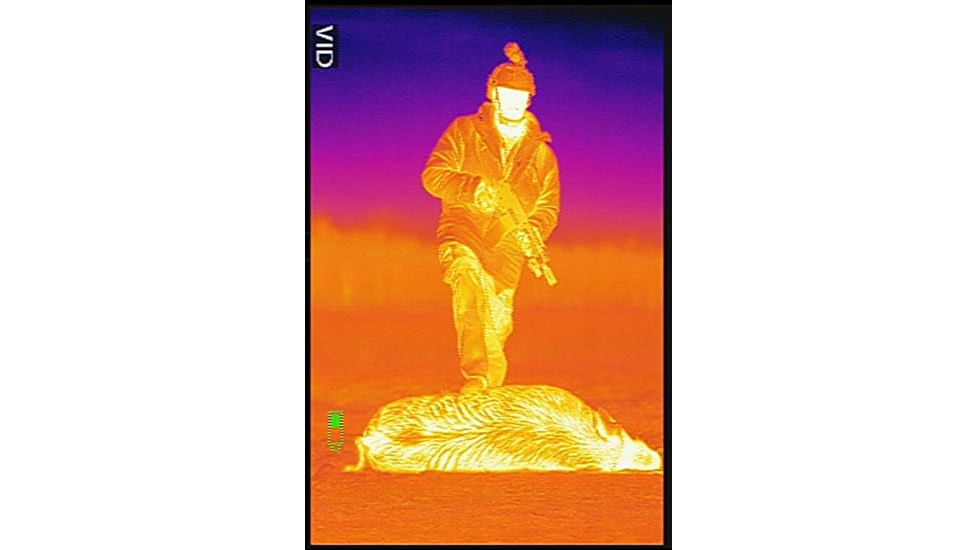

White hot / Black hot / Multiple Color Modes
Start up time:
<4 sec
Waterproof:
Yes

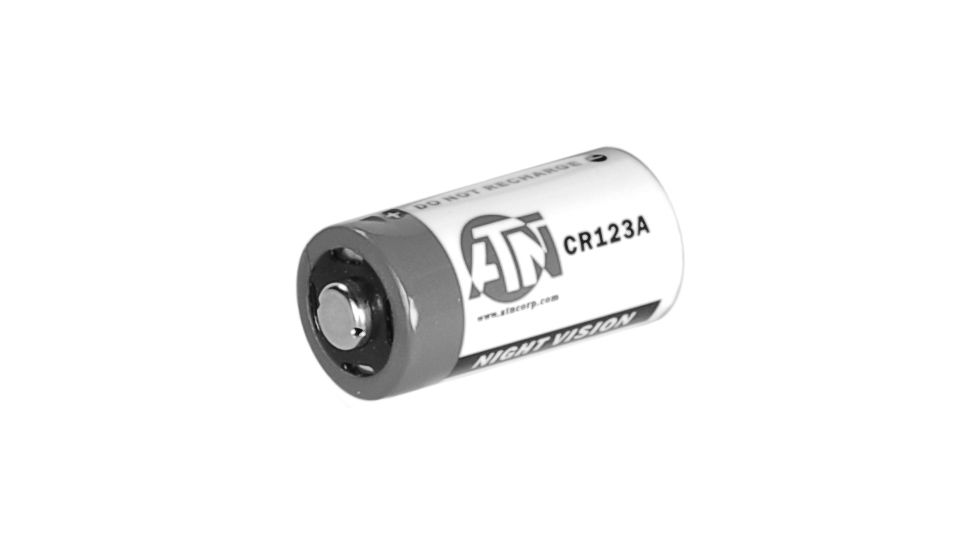

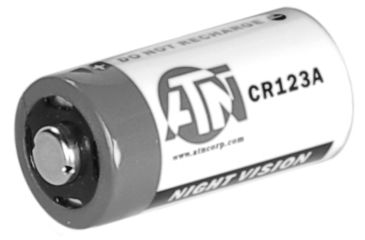

Battery type:
1 x CR123A battery type
Weight:
0.83 lb /375 grams
Battery Life:
2+ hrs
Dimensions:
100 x 61 x 83 mm /4x2.4x3.3"
Warranty:
1 year
Features of ATN Thermal Image OTS X S614 Heat Seeking Scope:
