ATN Thor 640 1.5x Thermal Weapon Sight w/ 3x, 6x, 9x E-Zoom TIWSMT641B
Tap Tap to Zoom
Read More...
Product Discontinued by Manufacturer
ATN Thor 640 1.5x Thermal Weapon Sight w/ 3x, 6x, 9x E-Zoom has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging, Rifle Scopes & Accessories, Thermal Imaging Scopes yourself to try and find the perfect replacement for you!
Product Info for ATN Thor 640 1.5x Thermal Weapon Sight w/ 3x, 6x, 9x E-Zoom
With the ATN Thor 640 - 1x640x512 Micron Thermal Weapon Sight, once you go digital, it's hard to go back to traditional. This thermal sight by ATN is lightweight and small enough to fit in the palm of your hand, yet rugged and durable. The ATN Thor 640 - 1x640x512 Digital NV Micron Thermal Weapon Sight features a digital menu that gives you a variety of options and adjustments allowing you to customize your system. You can select a number of reticle options as well as choose a reticle color best suited for your specific application. The ATN Thor 640 - 1x640x512 Digital NV Micron Thermal Weapon Scope provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage or bright lights will not affect the sensitivity and features E-Zoom to expand your optical magnification. For ideal nighttime hunting, force protection, border patrol, police SWAT and special operations, use the ATN Thor 640 - 1x640x512 Night Vision Micron Thermal Imager. It'll be a hard sell to find anything else!
Specifications for ATN Thor 640 - 1x640x512 NV Digital Micron Thermal Weapon Scope:
| Sensor (microbolometer): | 640 x 512 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 30 Hz |
| Video output: | Digital NTSC / PAL |
| Display: | Color OLED matrix, SVGA< 800x600 Color background + color reticules |
| Thermal Sensitivity, mK: | <50mK |
| Spectral Response, μm: | 7-14 |
| Lens: | 19 |
| Field of View (H x V), deg: | 21x16 |
| Eye Relief, mm: | 28 |
| Optical Magnification: | 1.5X |
| E-Zoom: | 3X, 6X, 9X |
| Diameter of exit pupil, mm: | 14 |
| Distance of the human detection, m (w/o zoom): | 1100 |
| Distance of the human recognition, m: | 400 |
| Reticle: | Multiple Reticles to Choose From |
| Reticle Color: | Red, Green, Blue, White & Black |
| Brightness adjustment: | Manual |
| Sharpness adjustment: | Automatic |
| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time, sec: | <3 |
| Waterproof: | Waterproof / Dustproof |
| Battery type: | 3 x CR123A battery type |
| Battery Life, h: | 8+ |
| Weight, grams: | 710 |
| Dimensions (L x W x H),mm (without bracket): | 262x94x73 mm |
| Mounting bracket: | MIL-STD 1913 Picatinny (Quick) |
| Output computer set up: | Yes |
| Video output: | Yes |
| Low Battery Indicator: | Yes |
| Iconology: | Quick access, Icon driven feature controls |
| Housing: | Aircraft Aluminum 6061 T6 w/ class III hard anodized coating |
| Objective lens: | Janus, full MIL SPEC, DLC (Diamond Like Carbon) coating |
Features of ATN Thor 640 - 1x640x512 Night Vision Micron Thermal Imager:
- Compact & lightweight design
- Digital imaging
- Fast Imaging (30hz)
- 800 x 600 OLE D color display
- Rugged design with mil. spec optics
- Menu functions include reticle type & color selection; windage & elevation adjustment
- Digital brightness control
- Vanadium oxide (VOx) Microbolometer Uncooled
- Polarity single button modes: black on white, white on black, 5 different color settings
- E-zoom

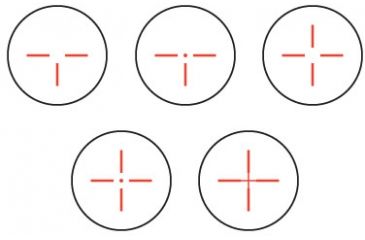

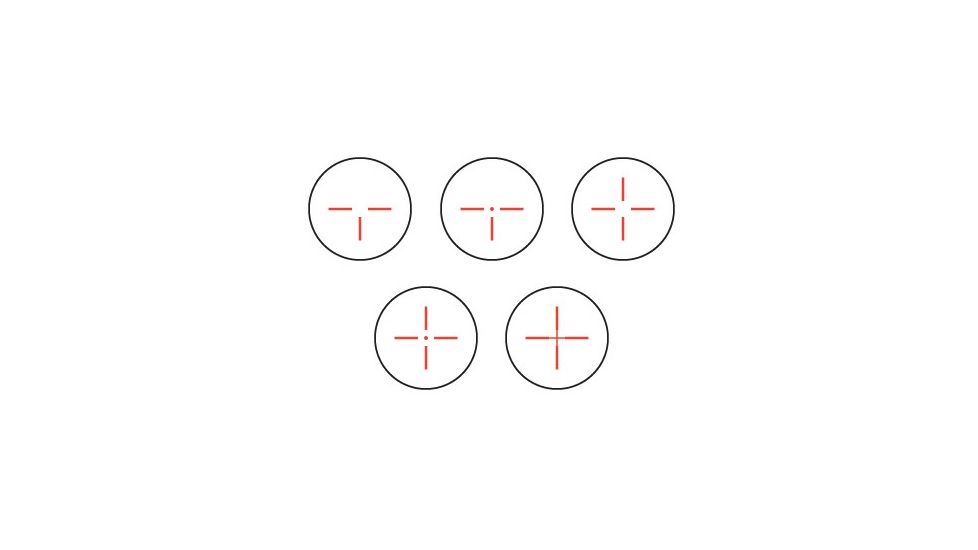

- 5 different reticles with choice of reticle color: red, green, blue, black, or white
- Reticle will Automatically Adjust its position when using E-Zoom
- (Note: Most thermal scopes allow the user to use the scope for observation only, in E-Zoom due to the lack of this feature.)
- Video output with RCA cable
- Diopter range: +2° to -6°
- Eye relief: 28mm
- MIL -STD-1913 (Picatinny Rail) Quick Release Mount
- Up to 8 hours operation with three lithium batteries
- One-year warranty
Package Contents:
- ATN Thor 640 - 1x640x512 Digital NV Micron Thermal Weapon Sight
