Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 60 x 30 degrees, AT-56Y-S.56YS186030
2 of 3 images
Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 60 x 30 degrees, AT-56Y-S.56YS186030
3 of 3 images
Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 60 x 30 degrees, AT-56Y-S.56YS186030
Tap Tap to Zoom
Questions & Answers
6 Models Available
Field of View, Angle
All
Search
List: $1,337.00Save 18%
$1,095.00
List: $1,359.00Save 19%
$1,099.00
List: $1,359.00Save 19%
$1,099.00
List: $1,359.00Save 19%
$1,099.00
List: $1,359.00Save 19%
$1,099.00
List: $1,359.00Save 19%
$1,099.00
Product Info for Axton Helios AT-56Y-S 9-28VDC IR Illuminator
HELIOS IR illuminators are designed for use with Off-Grid, battery and solar powered security or mobile applications. The Input/Output ports can be used to connect to motion sensors, camera or other I/O port devices to turn light On/Off based on preset conditions. For easy integration, Helios Lights also have a built-in light sensor for Auto ON/OFF operation. Helios Lights are rugged, vandal resistant and are Outdoor IP67 Rated (weatherproof).
Specifications for Axton Helios AT-56Y-S 9-28VDC IR Illuminator:
| Manufacturer: | Axton |
| Wavelength: | 850 nm |
| Finish: | Powder Coated |
| Fabric/Material: | Aluminum |
| Operating Temperature: | -58 - 140 Fahrenheit |
| Water Resistance Level: | IP67 |
| Weight: | 5.5 lb |
| Dimensions: | 6.25 x 3.5 x 9.25 in |
Features of Axton Helios AT-56Y-S 9-28VDC IR Illuminator
- Wavelength 850nm IR
- Energy Efficient Advanced LED Technology

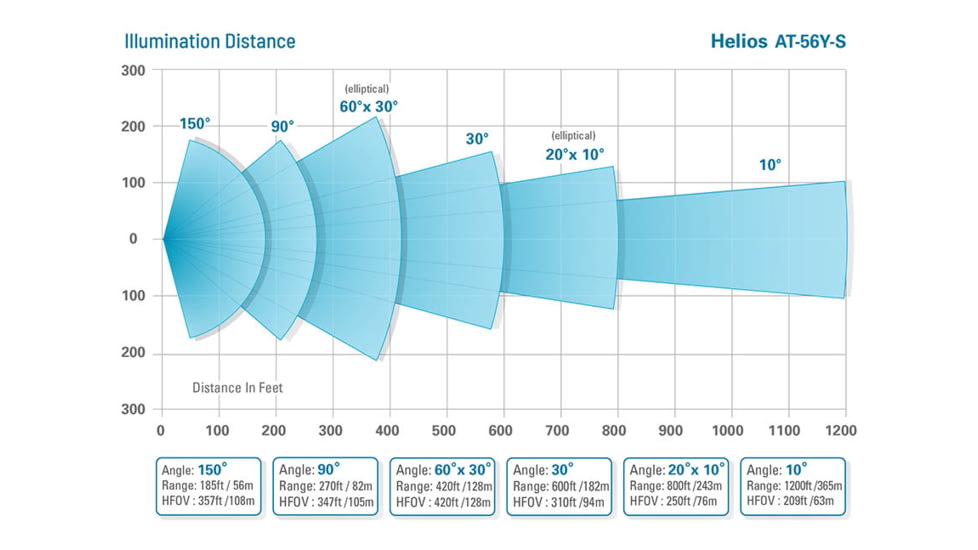

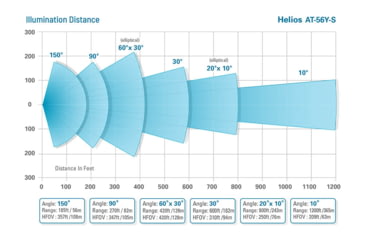

- Beam Angle Options:
- 150 degrees, 90 degrees (60 degrees x 30 degrees elliptical) 30 degrees, (20 degrees x10 degrees) or 10 degrees
- Power Consumption 56 Watts
- Input Voltage 9 to 28 VDC
- I/O Ports Sync with Motion Sensors, Camera or other I/O Port Devices
- Automatic Day/Night Sensor
- Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens
- Lifetime Warranty
Package Contents:
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator
- Pan/Tilt U Bracket
- Setup guide
Axton Helios AT-56Y-S 9-28VDC IR Illuminator Orderable Models
List of Orderable Models
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 60 x 30 degrees, AT-56Y-S.56YS186030 , MPN: AT-56Y-S.56YS186030 , UPC: 819960016385 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS186030
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 30 degrees, AT-56Y-S.56YS1830 , MPN: AT-56Y-S.56YS1830 , UPC: 819960016392 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS1830
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 90 degrees, AT-56Y-S.56YS1890 , MPN: AT-56Y-S.56YS1890 , UPC: 819960016378 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS1890
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 150 degrees, AT-56Y-S.56YS18150 , MPN: AT-56Y-S.56YS18150 , UPC: 819960016361 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS18150
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 10 degrees, AT-56Y-S.56YS1810 , MPN: AT-56Y-S.56YS1810 , UPC: 819960016415 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS1810
- Axton Helios AT-56Y-S 9-28VDC IR Illuminator, 20 x 10 degrees, AT-56Y-S.56YS182010 , MPN: AT-56Y-S.56YS182010 , UPC: 819960016408 , Code: 6B7-IR2-AN016LR-AT-56Y-S-56YS182010
