Product Info for Axton Smart AT-56S IR Illuminator

The Smart AT-56S Long Range IR Illuminator has Input/Output ports that can be used to connect to motion sensors, camera or other I/O port devices to turn light On/Off based on preset conditions. For easy integration, an automatic DAY/NIGHT sensor turns IR ON/OFF, based upon lighting conditions. Smart series IR Illuminators are rugged, vandal resistant, Outdoor IP67 Rated (weatherproof) and have AXTONs exclusive lifetime warranty.image

Specifications for Axton Smart AT-56S IR Illuminator:

Manufacturer: Axton
Wavelength: 850 nm
Fabric/Material: Metal
Operating Temperature: -58 - 140 Fahrenheit
Water Resistance Level: IP67
Weight: 5 lb
Dimensions: 6.25 x 3.5 x 9.25 in

Features of Axton Smart AT-56S IR Illuminator

  • Energy Efficient Advanced LED Technology

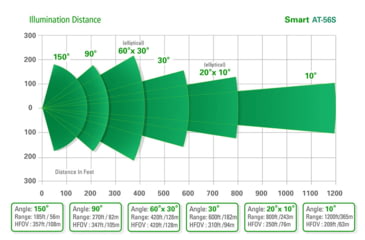

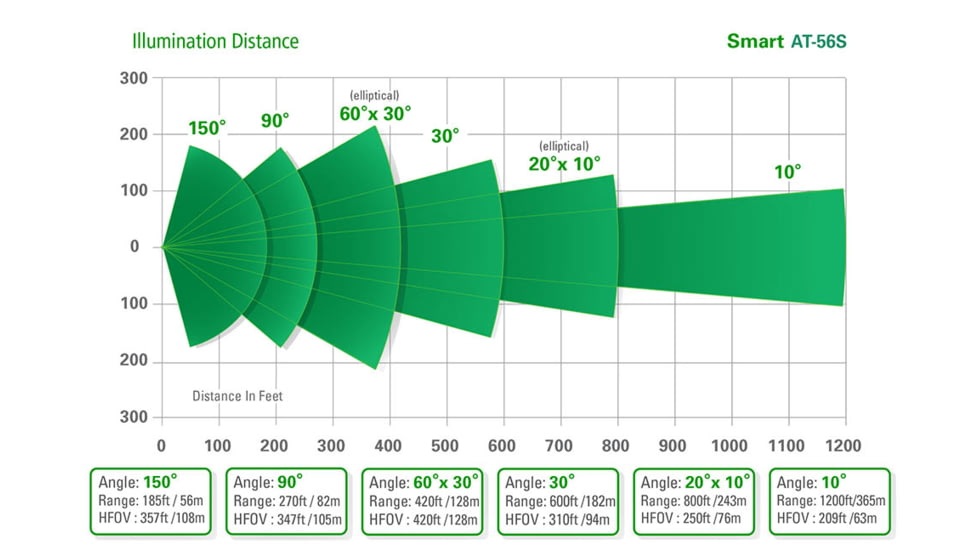

  • Illumination Range: 1,200ft 10 degrees/ 270ft 90 degrees
  • Six Beam Angle/Coverage Options:
  • 150 degrees, 90 degrees (60 degrees x 30 degrees elliptical) 30 degrees (20 degrees x10 degrees) or 10 degrees.
  • Power Consumption 56 Watts
  • Input Voltage 24-36 VDC or 24 VAC
  • I/O Port Sync with Motion Sensors, Camera I/O Port Devices
  • Automatic Day/Night Sensor
  • Rugged Construction: All Metal Housing/Bracket, Polycarbonate Face/Lens
  • Lifetime Warranty

Package Contents:

  • Axton Smart AT-56S IR Illuminator
  • Pan/Tilt U Bracket
  • Setup guide

Axton Smart AT-56S IR Illuminator Orderable Models

List of Orderable Models

  • Axton Smart AT-56S IR Illuminator, 150 degrees, AT-56S.56S28150 , MPN: AT-56S.56S28150 , UPC: 819960014299 , Code: 6B7-IR2-AN03LR-AT-56S-56S28150
  • Axton Smart AT-56S IR Illuminator, 30 degrees, AT-56S.56S2830 , MPN: AT-56S.56S2830 , UPC: 819960014268 , Code: 6B7-IR2-AN03LR-AT-56S-56S2830
  • Axton Smart AT-56S IR Illuminator, 60 x 30 degrees, AT-56S.56S286030 , MPN: AT-56S.56S286030 , UPC: 819960014275 , Code: 6B7-IR2-AN03LR-AT-56S-56S286030
  • Axton Smart AT-56S IR Illuminator, 90 degrees, AT-56S.56S2890 , MPN: AT-56S.56S2890 , UPC: 819960014282 , Code: 6B7-IR2-AN03LR-AT-56S-56S2890
  • Axton Smart AT-56S IR Illuminator, 20 x 10 degrees, AT-56S.56S282010 , MPN: AT-56S.56S282010 , UPC: 819960014251 , Code: 6B7-IR2-AN03LR-AT-56S-56S282010
  • Axton Smart AT-56S IR Illuminator, 10 degrees, AT-56S.56S2810 , MPN: AT-56S.56S2810 , UPC: 819960014244 , Code: 6B7-IR2-AN03LR-AT-56S-56S2810
