Code: B2-9LF-FB1415M
MPN: FB1415M

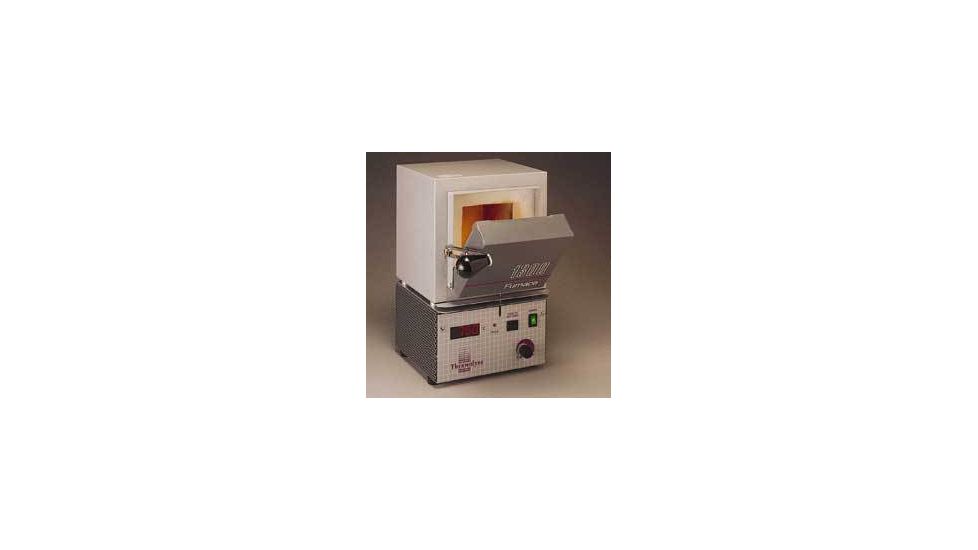

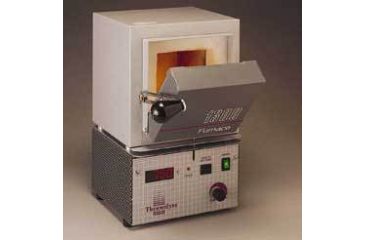

Thermo Scientific Small Benchtop Muffle Furnaces are designed for ashing organic and inorganic samples. Applications range from determining volatile and suspended solids in samples to heat treating of small steel parts and performing ignition tests. These units feature a digital control with a thermocouple break protection. The refractory cement construction reduces the penetration of contaminants, extending the longevity of the heating elements. A insulated door with a convenient latching handle forms a useful shelf when open, and a door safety switch protects the operator by breaking power to the heating elements upon opening the door. Type 1400 features a circulating air-injected heat system with padded pebbles in the inlet well. Ordering Information: Furnaces without grate or lid.![]()
| Description:Â | Furnace, 120V, 1500W | |
| Barnstead No.:Â | FB1415M | |
| Unit:Â | Each | |
| Maximum Temperature: | 1100°C (2012°F) | |
| Chamber Dimensions, Type 1300:Â | 10.2W x 9.5H x 11.4D cm (4 x 33/4 x 41/2") | |
| Chamber Dimensions, Type 1400:Â | 12.7W x 10.8H x 15.2D cm (5 x 41/4 x 6") | |
| Overall Dimensions, Type 1300:Â | 20.3W x 31.8H x 21.6D cm (8 x 121/2 x 81/2") | |
| Overall Dimensions, Type 1400:Â | 25.4W x 36.8H x 27.9D cm(10 x 141/2 x 11") | |
| Weight, Type 1300:Â | 6.1 kg (13.5 lbs.) | |
| Weight, Type 1400:Â | 10 kg (22 lbs.) | |
| Weight, Electrical:Â | 120 or 240V, 50/60Hz | |
