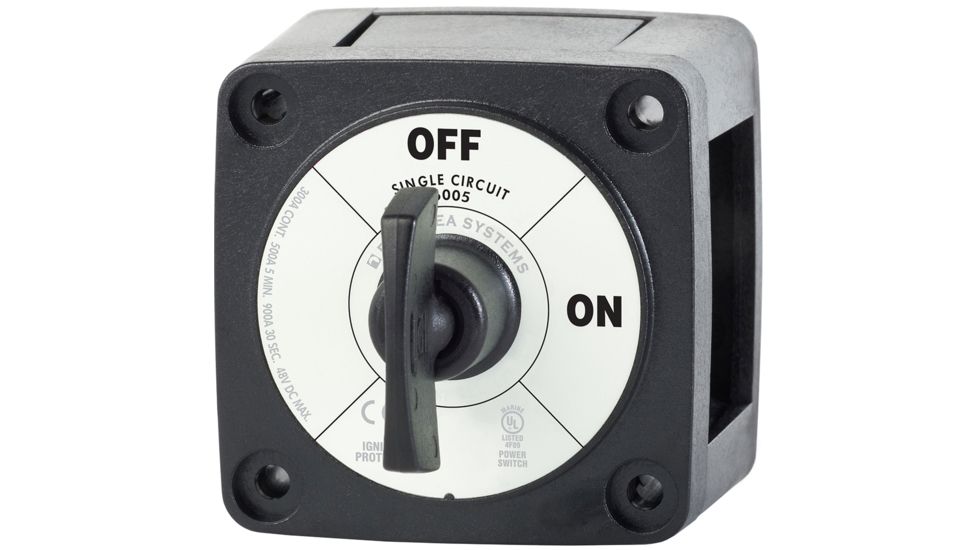

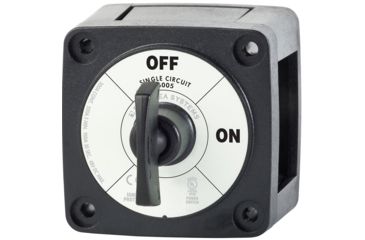

Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF

Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF - Black 49217
Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF - Black 49217
1 of 1 images
Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF - Black 49217

Tap Tap to Zoom

Questions & Answers

Product No Longer Available

Unfortunately Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF is not listed by OpticsPlanet.You can also explore other items in the Battery Chargers yourself to try and find the perfect replacement for you!

Product Info for Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF

m-Series Mini On-Off Battery Switch with Key - Blackimage

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

Case design allows surface front panel or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF

Color: Black

Switch Positions: 2

Battery Combine: No

Alternator Field Disconnect: No

Maximum Voltage: 48V DC

Continuous Rating : 300A

Intermittent Rating : 500A (5 min)

Cranking Rating 10 sec: 1500A

Cranking Rating 1 min: 775A

Battery Inputs: 1

Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm)

Mounting Holes: Accept #10 Screw

Terminal Stud Size: 3/8"-16 (M10)

Terminal Stud Torque: 120 in-lb (13.56 Nm)

Weight: 0.62lb (0.28/ kg)

Features of Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF

  • AFD: No
  • Continuous Amperage: 300

Package Contents:

  • Blue Sea Systems 6005200 Battery Switch Single Circuit ON-OFF
